UPS Battery
Connector
EBM Cable
EBM Battery
Connectors
Powerware 9125 Installation Guide for IBM Applications
®
Downloaded from www.Manualslib.com
4. If installing additional EBMs, repeat Steps 2 and 3 for each
cabinet.
EBM Bracket
5. Plug the EBM cable into the battery connector on the UPS rear
panel (see Figure 8).
6. If additional EBMs are to be installed, plug the EBM cable of the
second cabinet into the battery connector on the first EBM.
Repeat for each additional EBM. Up to four EBMs may be
connected to the UPS.
Communication Port
Figure 8. Typical UPS Installation (120V Model Shown)
manuals search engine

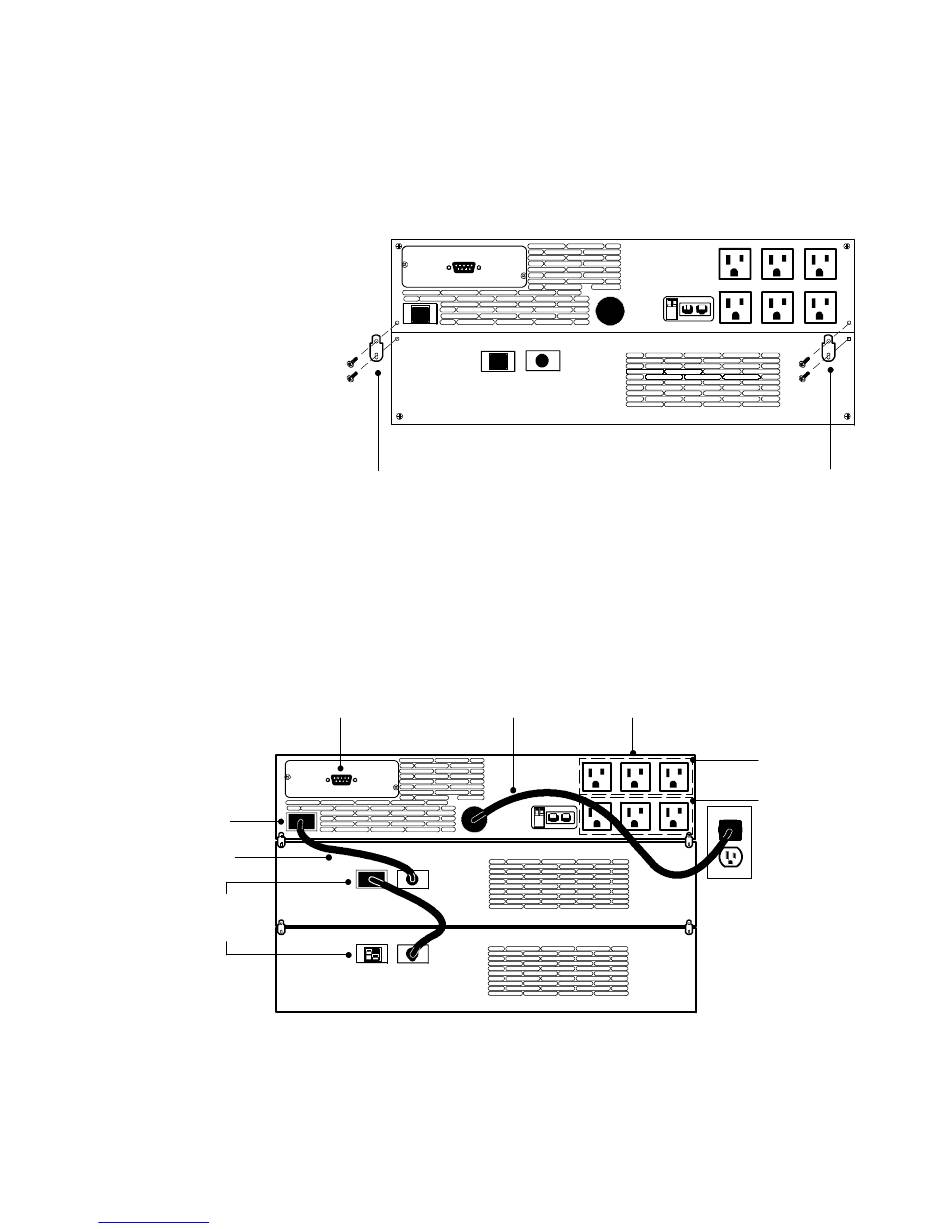

Figure 7. Installing the EBM Brackets
Power Cord Output Receptacles
