NOTE The air vents should be at the top of the unit when positioned vertically.
When a single UPS cabinet is positioned vertically, the UPS stands must
be attached to the bottom of the cabinet tower:
1. Place the UPS horizontally, so that the left end of the unit is
accessible.
2. Slide and position the UPS stands over the end of the unit so
that the weight of the UPS is evenly distributed (see Figure 5).
Secure the stands with the screws provided in the accessory kit.
3. Carefully position the unit upright on the UPS stands (see
Figure 6).
Continue to the following section, "Installing the UPS."
manuals search engine

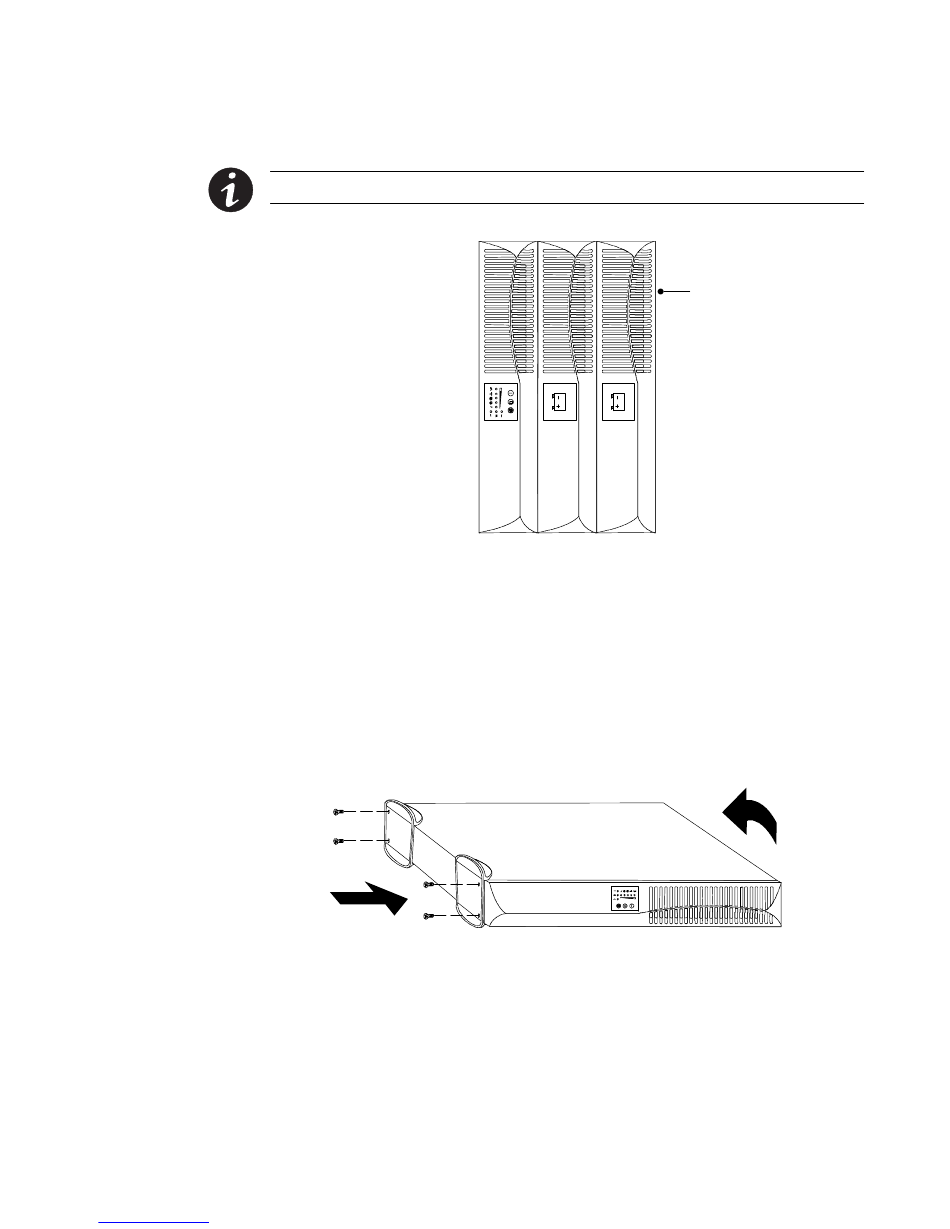

Figure 4. Vertical Cabinet Setup
Figure 5. Installing the UPS Stands
05146789 A Uncontrolled Copy
S
Installation
Air Vents
3
