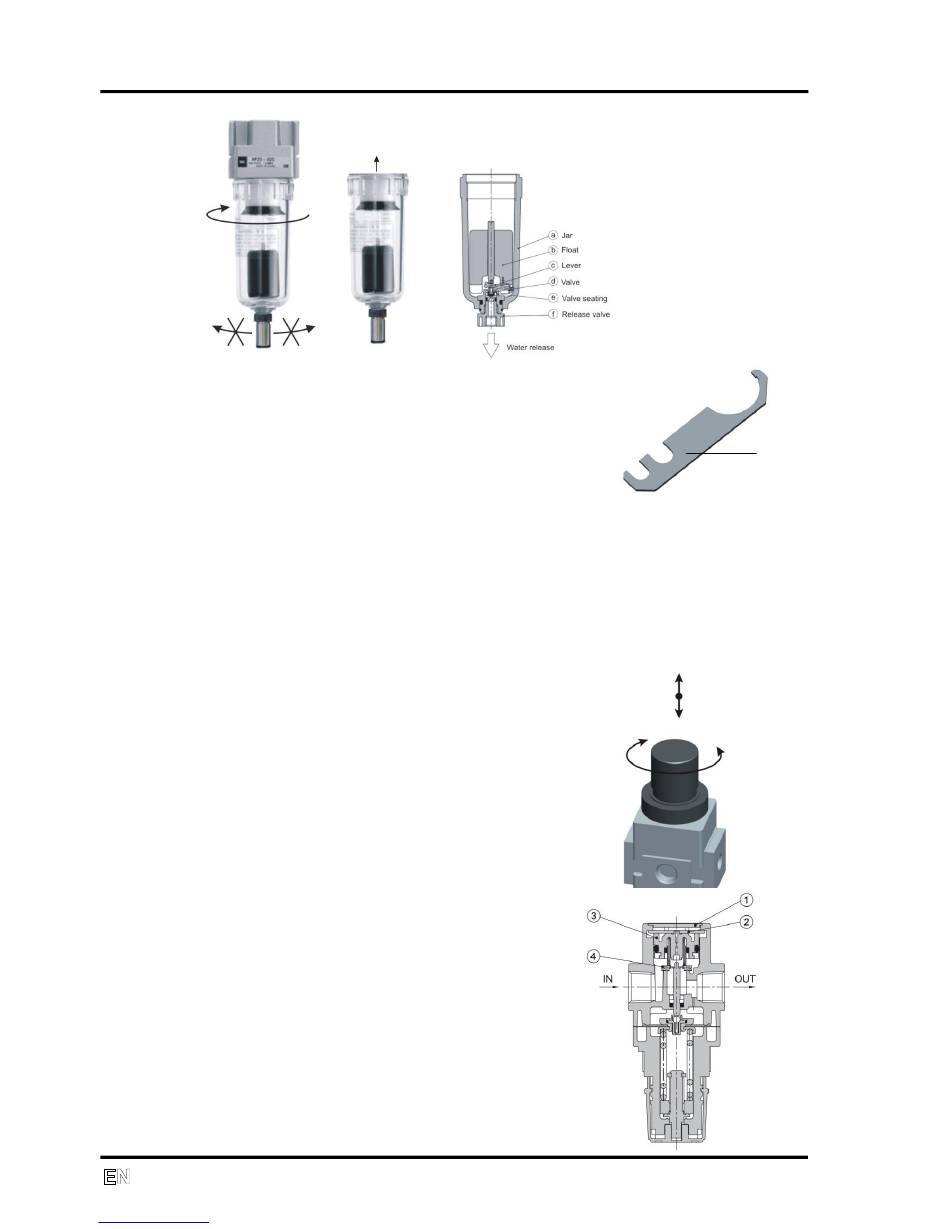

MAINTENANCE

Setting outlet air pressure

Cleaning the pressure regulator

Downloaded from
www.Manualslib.com
• Unscrew the cover and pull it out using the enclosed wrench (26).
• Unscrew the filter holder.
• Replace the filter and screw the filter holder
into place.
• Screw the cover back in place.
Spare filtration pads:
Bronze (40 μm) (19a) AF20P-060S-7-40B
Plastic (5 μm) (19b) AF20P-060S
If the water release system becomes clogged, disassemble the release valve
(f), clean the outlet, remove the float (b) with a lever mechanism (c, d, and e)
from the tank, clean all components with a soap solution and then
reassemble.
To unlock the control button of the
regulator (20), raise it slightly and rotate
it to set the demand outlet pressure.
After setting the pressure, lock the
control button of the regulator by
pushing it down.
• Set the pressure to the minimum position
• Remove the plug (1)
• Rotate and remove the latch (2)
• Remove the line from the valve (3) and
the valve (4), then clean the valve seat
and the o-ring
• Re-install
the
components
following order: (4), (3), (2) and (1)
manuals search engine
Item 025200142-000
Item 025200113-000
in
the
18
26
NP-DK50 DS-23_08-2018
