11.9

Device Safety

Designed to: EN61010 Part 1
Protection Class: Protection Class 2
Application area: Pollution level 2

11.10 Mechanical Data

Housing: Panel mount housing
to DIN 43 700, RAL 7021
Dimensions: 96 x 48 x 102 mm
Panel cut-out: 92
Installation depth: approx. 92 mm incl. terminals
Weight: approx. 180 g
Protection: IP 65 (front)
Housing material: Polycarbonate UL94 V-2
Vibration resistance: 10 - 55 Hz / 1 mm / XYZ
EN60068-2-6 30 min in each direction
Shock resistance:
EN60068-2-27 100G / XYZ
3 times in each direction
EN60068-2-29 10G / 6 ms / XYZ
2000 times in each direction
Cleaning: The front of the unit should
only be cleaned using a
damp (water!) cloth.

11.11 Connections

Supply voltage and outputs:
Plug-in screw terminal, 8-pin, RM5.00
Core cross-section, max. 2.5 mm²
Signal and control inputs:
Plug-in screw terminal, 9-pin, RM 3.50
Core cross section, max. 1.5 mm²

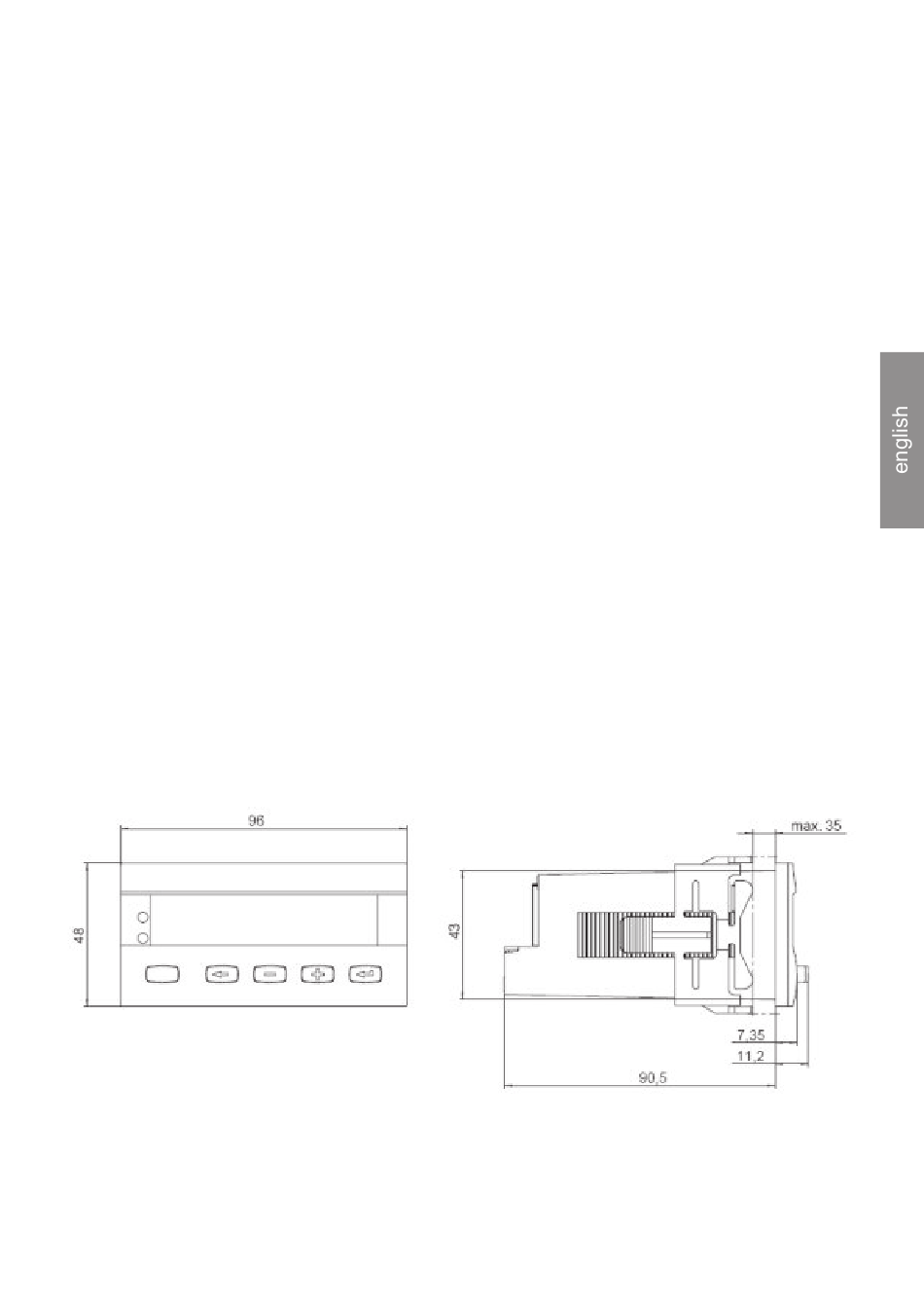

12 Dimensional Drawings

+0.8
Panel cut-out: 92 x 45
www.kuebler.com
+0.8 +0.6
x 45 mm
+0.6
Page 19
