9

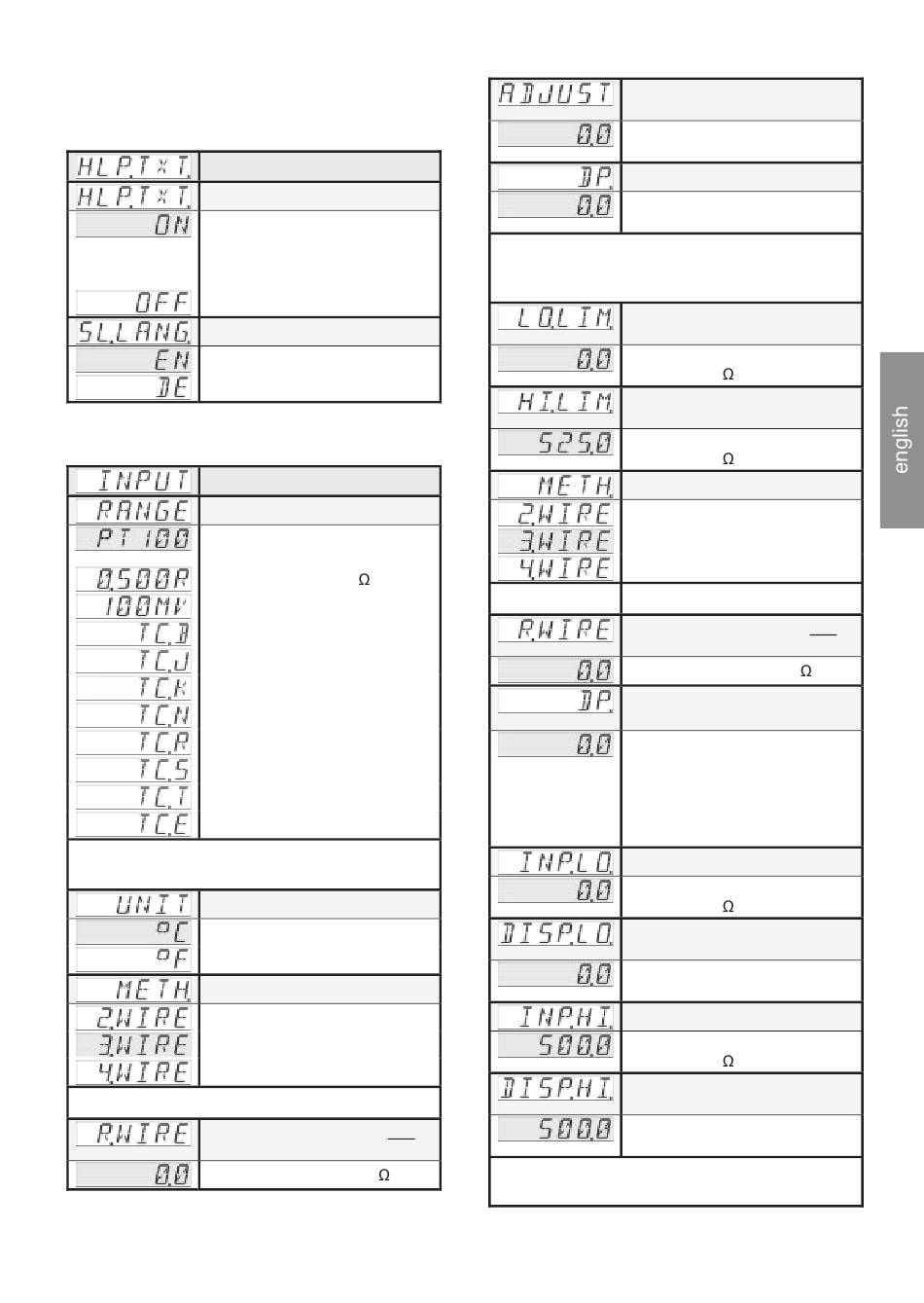

Function Groups

9.1

Help Texts (running text)

Help Text menu
Select Help Text
ON
- a running text that has
started can be aborted with
any programming key
OFF
Select language for Help Text
English
Deutsch (German)
9.2

Signal inputs

Menu Input Signal
Select Temperature probe
Resistance thermometer RTD
Pt 100 [-200.0 ... +850.0°C]
Resistance 0 ... 500
Millivolt -100 ... +100 mV
Thermocouple Pt30Rh-Pt6Rh
Thermocouple Fe-CuNi
Thermocouple NiCr-Ni
Thermocouple NiCrSi-NiSi
Thermocouple Pt13Rh-Pt
Thermocouple Pt10Rh-Pt
Thermocouple Cu-CuNi
Thermocouple NiCr-CuNi
For PT100
Select temperature units
Temperature in °C
Temperature in °F
Select probe connection
2-wire connection
3-wire connection
4-wire connection
Only for 2-WIRE
Select wire resistance of one
connection wire
Input range 0.0 ... 25.0
www.kuebler.com
Select Correction Value
(Offset)
Input range -99.9 ... +99.9°C
Input range -99,9 ... +99,9°F
Select resolution
0 °C/°F
0.0 °C/°F
for 0.500R
Select lower measuring range
limit
Input range
0.0 ... 525.0
Select upper measuring range
limit
Input range
0.0 ... 525.0
Select probe connection
2-wire connection
3-wire connection
4-wire connection
Only for 2WIRE
Select wire resistance of one
connection wire
Input range 0.0 ... 25.0
Select decimal point
(optical function only)
0
0.0
0.00
0.000
0.0000
0.00000
Select input low value
Input range
0.0 ... 525.0
Select display low value for
INP.LO.
Input range
-199999 ... +999999 and DP
Select input high value
Input range
0.0 ... 525.0
Select display high value for
INP.HI.
Input range
-199999 ... +999999 and DP
