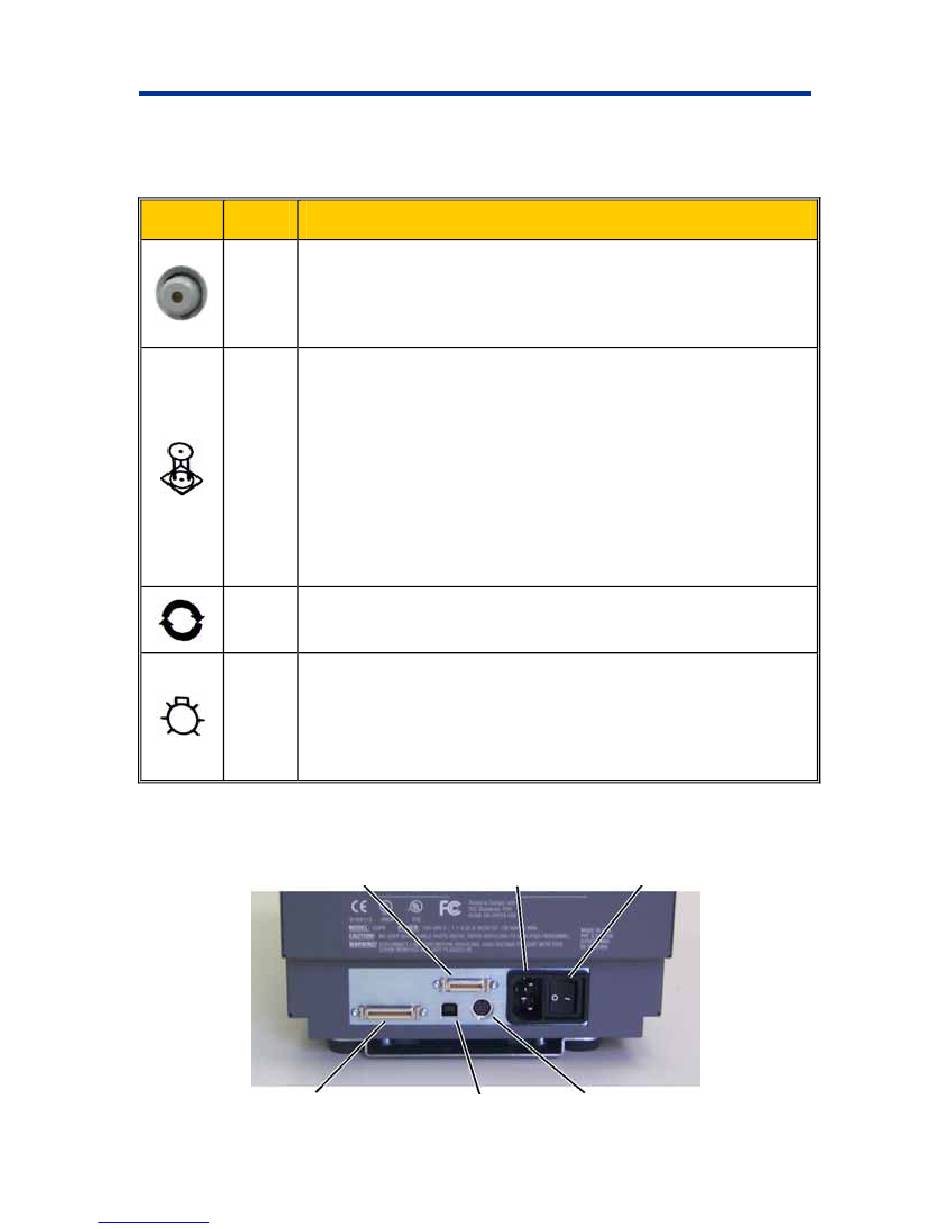

Indicator lights

The indicator light conditions described below reflect conditions on a Standalone Prism printer. Prism
printers that are mounted on autoloaders have different conditions. For conditions of printers on autoloaders,
refer to the autoloader's user guides.

Rear View

110635_I
Downloaded from www.Manualslib.com
Name Functionality
• The yellow indicator light located on the operator button illuminates when an error
occurs while printing.
• The Error indicator light and the Disc Not Present indicator light flash when the printer is
Error
in cleaning mode.
• The error indicator light illuminates and the Disc Not Present indicator light flashes at a
slow rate when the ribbon is out.
• The yellow Disc Not Present indicator light flashes a fault code when an error occurs.
After the error is resolved, press the Operator button to turn off the indicator light.
• The Disc Not Present indicator light illuminates when the tray is empty or when the disc
is not properly clamped. When a disc is placed on the tray, the Disc Not Present
indicator light turns off.
• In Multiple Copy mode, the Disc Not Present indicator light illuminates until the disc is
Disc Not removed from the pad.
Present • The Disc Not Present indicator light flashes continuously at a slow rate when the ribbon
is low (less than 100 prints remain). This applies only to monocolor ribbons and only if
you have not changed or switched ribbons since loading the current ribbon.
• The Disc Not Present indicator light flashes at a slow rate while the error indicator light
illuminates when the ribbon is out.
• The Disc Not Present indicator light and the Error indicator light flash when the printer is
in cleaning mode.
• The yellow Active indicator light flashes when the printer is operating.
Active • The Active indicator light flashes continuously at a slow rate when the printer is in
AutoPrinter mode.
• The green Power indicator light illuminates when the Prism is powered on.
• The Power indicator light flashes when the system board requires reprogramming.
• The Power indicator light turns off when the printer detects a bad pixel element in the
Power
print head. You can continue to print discs (the Power indicator light turns back on when
a disc is placed on the tray); however small lines may occur in printing. This is an
indication that the print head will require replacement.
• The Power indicator light turns off when the Prism is powered off.
Perfect Print Connection
(3-Bin AutoPrinter only)
Parallel Cable
Connection
manuals search engine
Identify the Parts of the Prism Printer
Power
AC Power
Switch
Connection
Serial Cable
USB Cable
Connection
Connection
3
