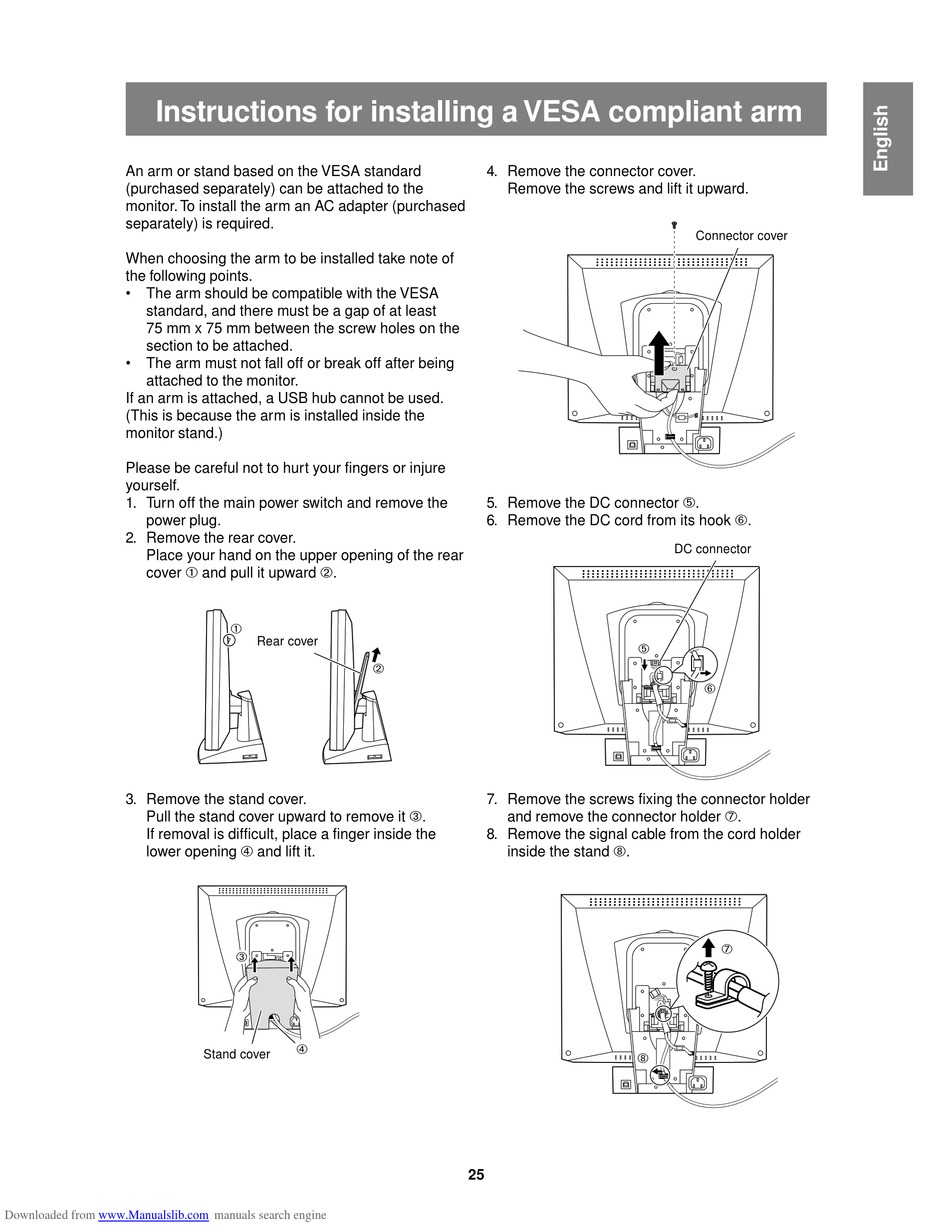

Instructions for installing a VESA compliant arm

An arm or stand based on the VESA standard
(purchased separately) can be attached to the
monitor. To install the arm an AC adapter (purchased
separately) is required.
When choosing the arm to be installed take note of
the following points.
• The arm should be compatible with the VESA
standard, and there must be a gap of at least
75 mm x 75 mm between the screw holes on the
section to be attached.
• The arm must not fall off or break off after being
attached to the monitor.
If an arm is attached, a USB hub cannot be used.
(This is because the arm is installed inside the
monitor stand.)
Please be careful not to hurt your fingers or injure
yourself.
1. Turn off the main power switch and remove the
power plug.
2. Remove the rear cover.
Place your hand on the upper opening of the rear
cover 1 and pull it upward 2.
3. Remove the stand cover.
Pull the stand cover upward to remove it 3.
If removal is difficult, place a finger inside the
lower opening 4 and lift it.
Downloaded from www.Manualslib.com
1
Rear cover
2
3
4
Stand cover
manuals search engine
4. Remove the connector cover.
Remove the screws and lift it upward.
5. Remove the DC connector 5.
6. Remove the DC cord from its hook 6.
5
7. Remove the screws fixing the connector holder
and remove the connector holder 7.
8. Remove the signal cable from the cord holder
inside the stand 8.
8
25
Connector cover
DC connector
6
7
