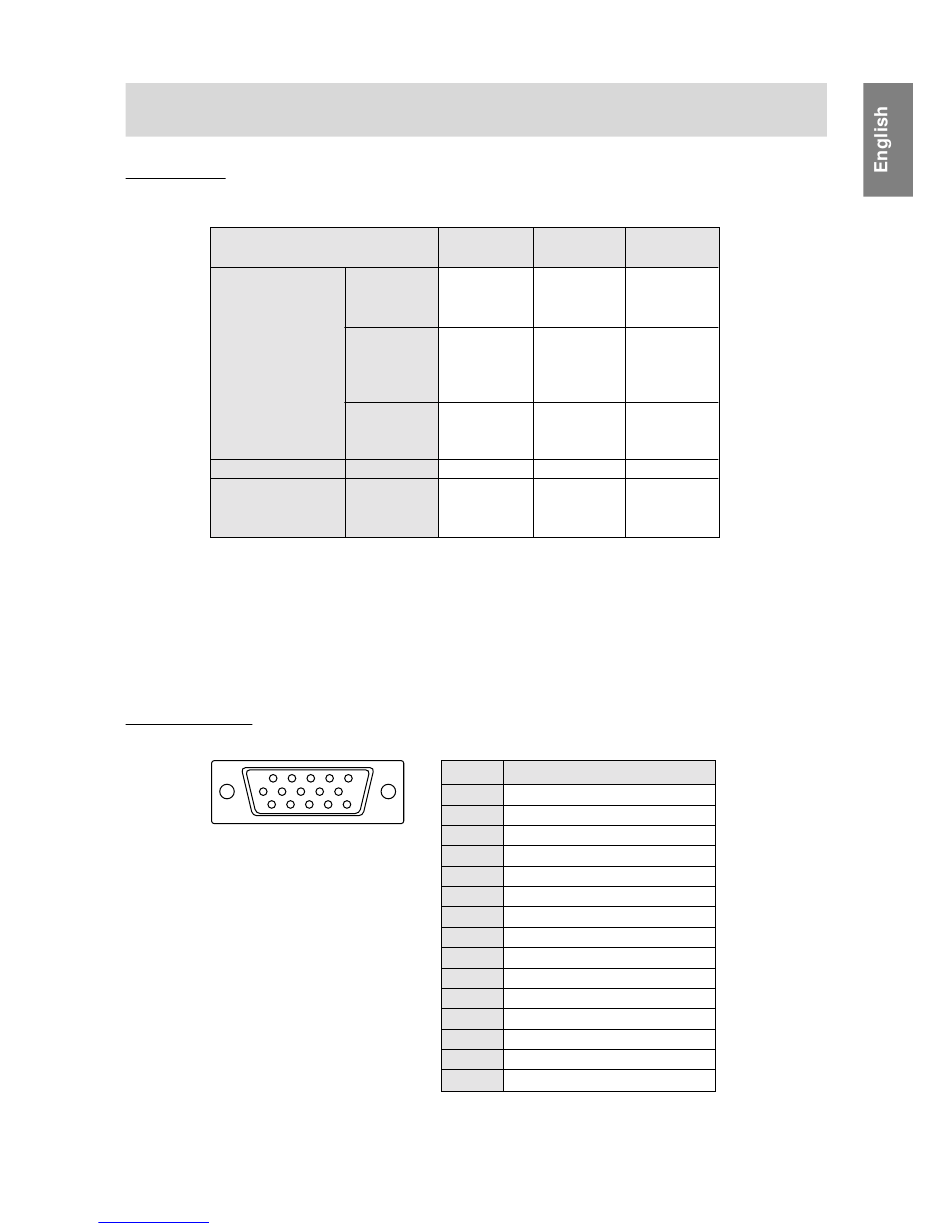

Signal timings
Notes:
• All are compliant only with non-interlace.
• Frequencies for the Power Macintosh series are reference values.
• If the monitor is receiving timing signals that are not compatible, [OUT OF TIMING] will appear. Follow
your computer's instruction manual to set the timing to be compatible with the monitor.
• If the monitor is not receiving any signal (synch signal), [NO SIGNAL] will appear.
The connector pin
Downloaded from www.Manualslib.com
Display mode
640x480
VESA
800x600
1024x768
US text 720x400
Power Macintosh 640x480
series 832x624
1024x768
1 2 3 4 5
6 7 8 9 10
11 12 13 14
15
(Mini D-sub connector with 15 pins)
manuals search engine
Specifications
Hsync (kHz) Vsync (Hz)
31.5kHz 60Hz
37.9kHz 72Hz
37.5kHz 75Hz
35.1kHz 56Hz
37.9kHz 60Hz
48.1kHz 72Hz
46.9kHz 75Hz
48.4kHz 60Hz
56.5kHz 70Hz
60.0kHz 75Hz
31.5kHz 70Hz
35.0kHz 66.7Hz
49.7kHz 74.6Hz
60.2kHz 75Hz
Number Function
1 Red video signal input
2 Green video signal input
3 Blue video signal input
4 N.C.
5 N.C.
6 For red video signal GND
7 For green video signal GND
8 For blue video signal GND
9 DDC + 5V
10 N.C.
11 GND
12 DDC data
13 For H-sync signal input
14 For V-sync signal input
15 DDC clock
23
Dot frequency
(MHz)
25.175MHz
31.5MHz
31.5MHz
36.0MHz
40.0MHz
50.0MHz
49.5MHz
65.0MHz
75.0MHz
78.75MHz
28.3MHz
30.5MHz
57.3MHz
80.0MHz
