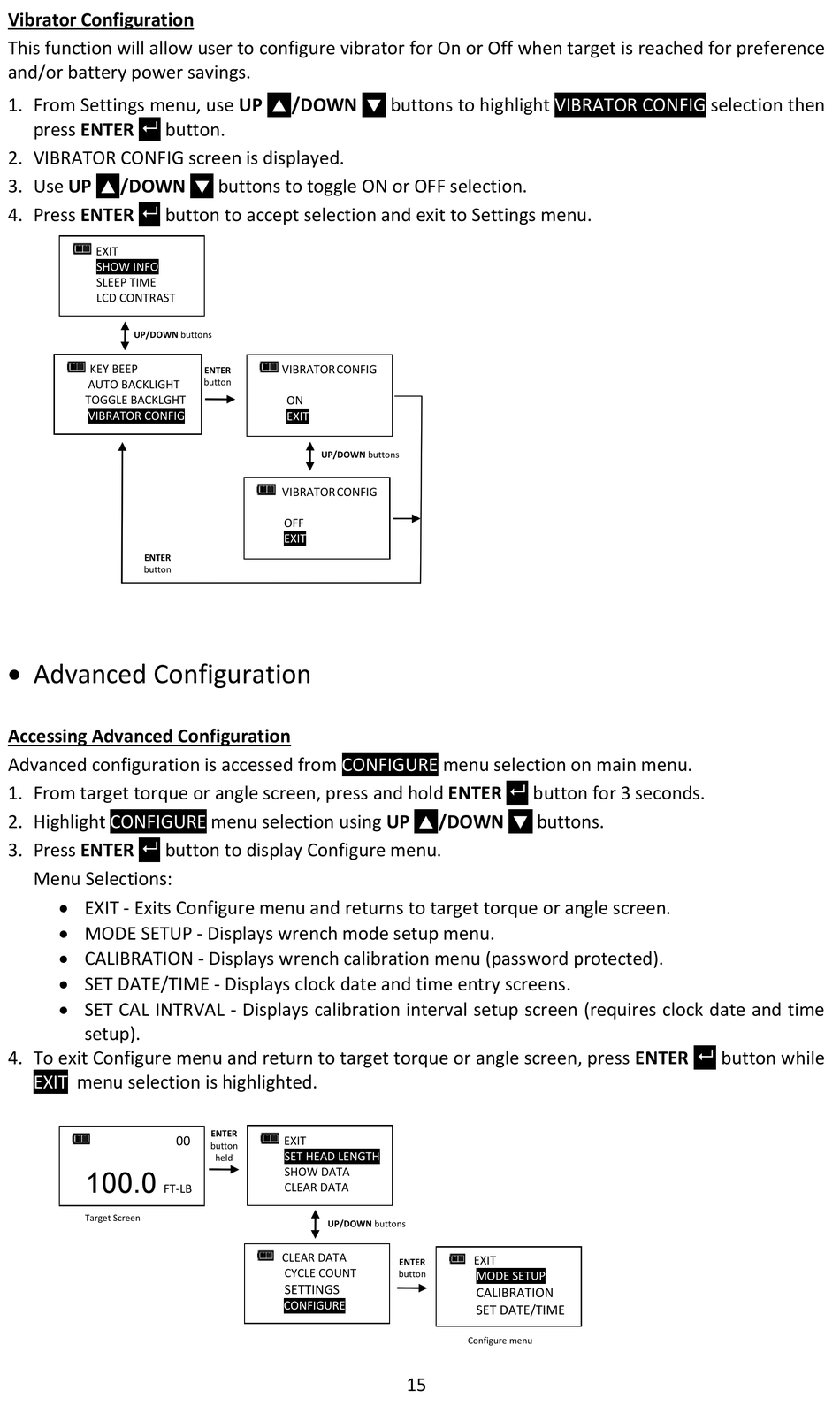

Vibrator Configuration
This function will allow user to configure vibrator for On or Off when target is reached for preference
and/or battery power savings.
1. From Settings menu, use UP

press ENTER button.

2. VIBRATOR CONFIG screen is displayed.
3. Use UP /DOWN



4. Press ENTER button to accept selection and exit to Settings menu.

EXIT
SHOW INFO
SLEEP TIME
LCD CONTRAST
UP/DOWN buttons
KEY BEEP
AUTO BACKLIGHT
TOGGLE BACKLGHT
VIBRATOR CONFIG
ENTER
button
 Advanced Configuration
Accessing Advanced Configuration
Advanced configuration is accessed from
1. From target torque or angle screen, press and hold ENTER
2. Highlight CONFIGURE

3. Press ENTER button to display Configure menu.

Menu Selections:
 EXIT - Exits Configure menu and returns to target torque or angle screen.
 MODE SETUP - Displays wrench mode setup menu.
 CALIBRATION - Displays wrench calibration menu (password protected).
 SET DATE/TIME - Displays clock date and time entry screens.
 SET CAL INTRVAL - Displays calibration interval setup screen (requires clock date and time
setup).
4. To exit Configure menu and return to target torque or angle screen, press ENTER
EXIT menu selection is highlighted.
