Controls and Technical Data
* The shield connection of the RJ45 connector is connected to the shield of the printer port.
This connection must be taken into account when arranging your network cabling. For more
information, please consult your retailer.
Characteristics
Printer Connector
Network Connection
Operating Environment
Dimensions
Quick Installation Guide
Values
- 2 x USB2.0 Highspeed
logical:
- IEEE 802.3i (10BaseT Ethernet)
- IEEE 802.3u (100BaseTX Fast Ethernet)
physical:
- Network Connection RJ-45 (S/UTP Cat.5)
- Ambient temperature: 5 - 40 °C
- Relative humidity: 20 - 80 %
- Length 99 mm
- Width 81 mm
- Height 31 mm
- Weight 100 g

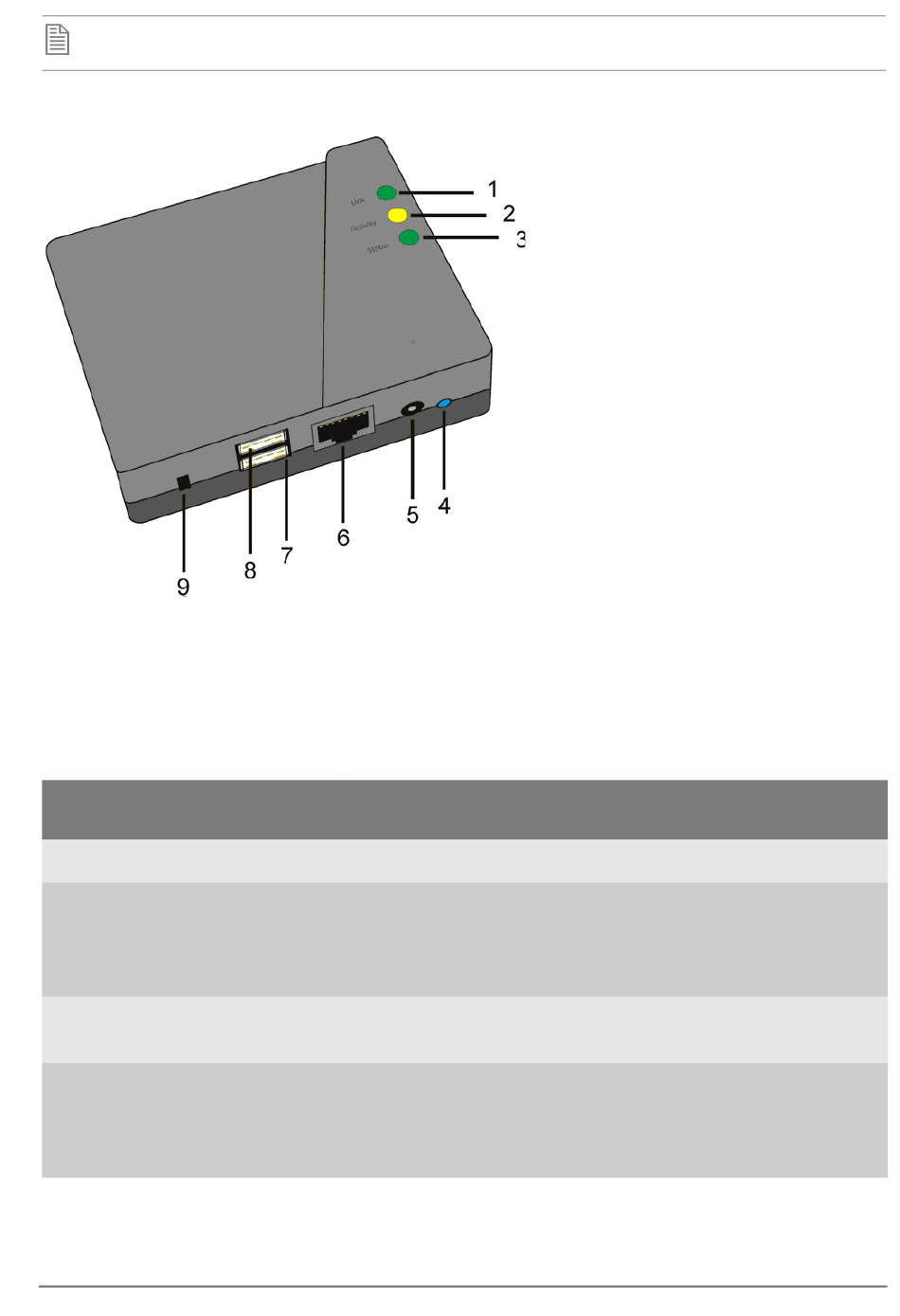

1) Link indicator LED (green):
The LED lights up when a (physical)
connection to the network is available.
2) Network activity LED (yellow):
The LED lights up when data packets
are being received.
3) Status indicator LED (green):
The LED shows that the print server is
operational.
4) Status button
5) Connector for the power cord
6) RJ-45 connector for 100BaseTX and
10BaseT *
7) USB port 2
8) USB port 1
9) Slot for security lock
