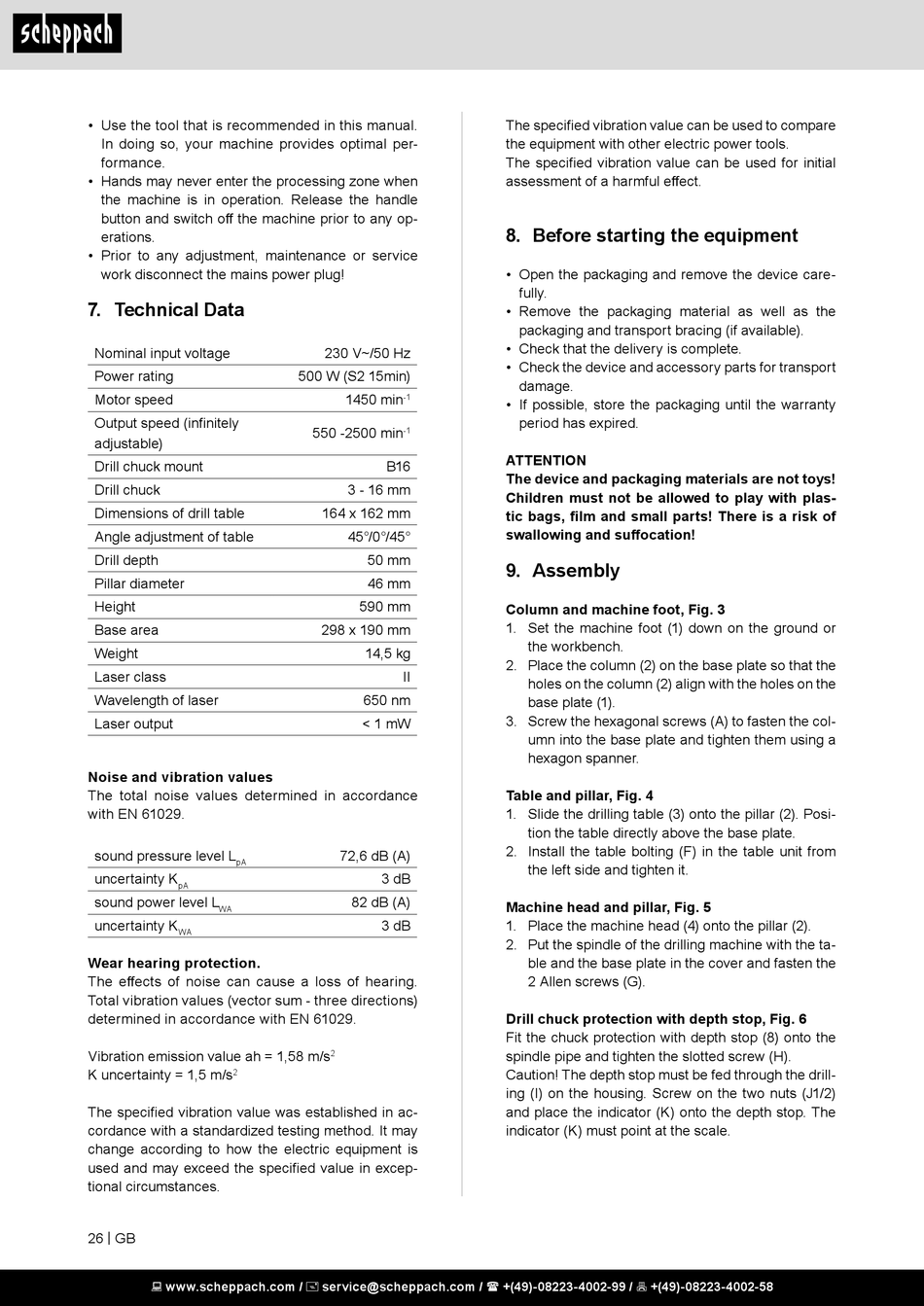

• Use the tool that is recommended in this manual.
In doing so, your machine provides optimal per-
formance.
• Hands may never enter the processing zone when
the machine is in operation. Release the handle
button and switch off the machine prior to any op-
erations.
• Prior to any adjustment, maintenance or service
work disconnect the mains power plug!

7. Technical Data

Nominal input voltage
Power rating
Motor speed
Output speed (infinitely
adjustable)
Drill chuck mount
Drill chuck
Dimensions of drill table
Angle adjustment of table
Drill depth
Pillar diameter
Height
Base area
Weight
Laser class
Wavelength of laser
Laser output
Noise and vibration values
The total noise values determined in accordance
with EN 61029.
sound pressure level L
pA
uncertainty K
pA
sound power level L
WA
uncertainty K
WA
Wear hearing protection.
The effects of noise can cause a loss of hearing.
Total vibration values (vector sum - three directions)
determined in accordance with EN 61029.
Vibration emission value ah = 1,58 m/s
K uncertainty = 1,5 m/s
2
The specified vibration value was established in ac-
cordance with a standardized testing method. It may
change according to how the electric equipment is
used and may exceed the specified value in excep-
tional circumstances.
26 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
230 V~/50 Hz
500 W (S2 15min)
1450 min
-1
550 -2500 min
-1
B16
3 - 16 mm
164 x 162 mm
45°/0°/45°
50 mm
46 mm
590 mm
298 x 190 mm
14,5 kg
II
650 nm
< 1 mW
72,6 dB (A)
3 dB
82 dB (A)
3 dB
2
The specified vibration value can be used to compare
the equipment with other electric power tools.
The specified vibration value can be used for initial
assessment of a harmful effect.

8. Before starting the equipment

• Open the packaging and remove the device care-
fully.
• Remove the packaging material as well as the
packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport
damage.
• If possible, store the packaging until the warranty
period has expired.
ATTENTION
The device and packaging materials are not toys!
Children must not be allowed to play with plas-
tic bags, film and small parts! There is a risk of
swallowing and suffocation!

9. Assembly

Column and machine foot, Fig. 3
1. Set the machine foot (1) down on the ground or
the workbench.
2. Place the column (2) on the base plate so that the
holes on the column (2) align with the holes on the
base plate (1).
3. Screw the hexagonal screws (A) to fasten the col-
umn into the base plate and tighten them using a
hexagon spanner.
Table and pillar, Fig. 4
1. Slide the drilling table (3) onto the pillar (2). Posi-
tion the table directly above the base plate.
2. Install the table bolting (F) in the table unit from
the left side and tighten it.
Machine head and pillar, Fig. 5
1. Place the machine head (4) onto the pillar (2).
2. Put the spindle of the drilling machine with the ta-
ble and the base plate in the cover and fasten the
2 Allen screws (G).
Drill chuck protection with depth stop, Fig. 6
Fit the chuck protection with depth stop (8) onto the
spindle pipe and tighten the slotted screw (H).
Caution! The depth stop must be fed through the drill-
ing (I) on the housing. Screw on the two nuts (J1/2)
and place the indicator (K) onto the depth stop. The
indicator (K) must point at the scale.
