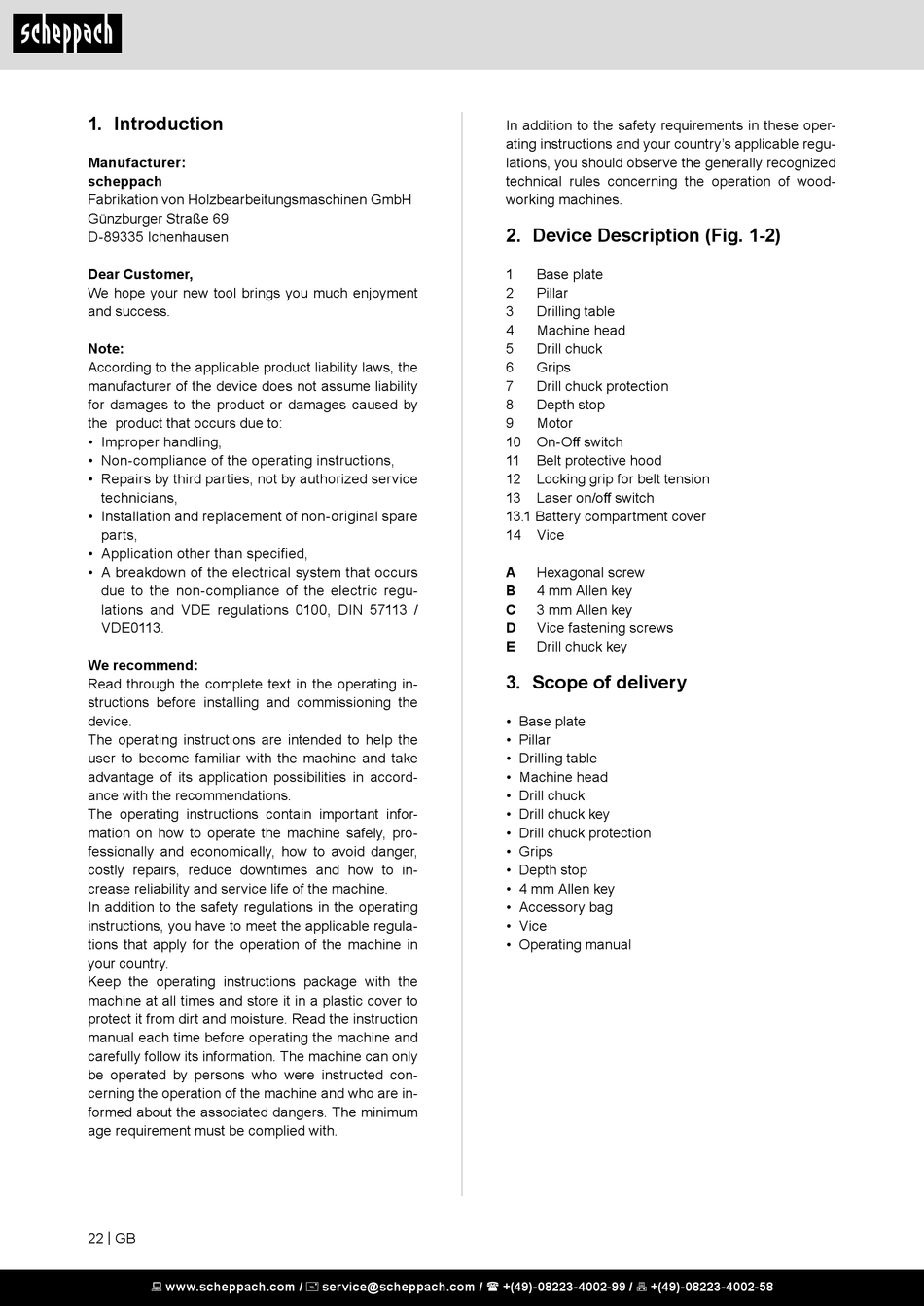

1. Introduction

Manufacturer:
scheppach
Fabrikation von Holzbearbeitungsmaschinen GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear Customer,
We hope your new tool brings you much enjoyment
and success.
Note:
According to the applicable product liability laws, the
manufacturer of the device does not assume liability
for damages to the product or damages caused by
the product that occurs due to:
• Improper handling,
• Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service
technicians,
• Installation and replacement of non-original spare
parts,
• Application other than specified,
• A breakdown of the electrical system that occurs
due to the non-compliance of the electric regu-
lations and VDE regulations 0100, DIN 57113 /
VDE0113.
We recommend:
Read through the complete text in the operating in-
structions before installing and commissioning the
device.
The operating instructions are intended to help the
user to become familiar with the machine and take
advantage of its application possibilities in accord-
ance with the recommendations.
The operating instructions contain important infor-
mation on how to operate the machine safely, pro-
fessionally and economically, how to avoid danger,
costly repairs, reduce downtimes and how to in-
crease reliability and service life of the machine.
In addition to the safety regulations in the operating
instructions, you have to meet the applicable regula-
tions that apply for the operation of the machine in
your country.
Keep the operating instructions package with the
machine at all times and store it in a plastic cover to
protect it from dirt and moisture. Read the instruction
manual each time before operating the machine and
carefully follow its information. The machine can only
be operated by persons who were instructed con-
cerning the operation of the machine and who are in-
formed about the associated dangers. The minimum
age requirement must be complied with.
22 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
In addition to the safety requirements in these oper-
ating instructions and your country's applicable regu-
lations, you should observe the generally recognized
technical rules concerning the operation of wood-
working machines.

2. Device Description (Fig. 1-2)

1 Base plate
2 Pillar
3 Drilling table
4 Machine head
5 Drill chuck
6 Grips
7 Drill chuck protection
8 Depth stop
9 Motor
10 On-Off switch
11 Belt protective hood
12 Locking grip for belt tension
13 Laser on/off switch
13.1 Battery compartment cover
14 Vice
A Hexagonal screw
B 4 mm Allen key
C
3 mm Allen key
D
Vice fastening screws
E Drill chuck key

3. Scope of delivery

• Base plate
• Pillar
• Drilling table
• Machine head
• Drill chuck
• Drill chuck key
• Drill chuck protection
• Grips
• Depth stop
• 4 mm Allen key
• Accessory bag
• Vice
• Operating manual
