Technical Information
Interconnections – controller model 9698978M005

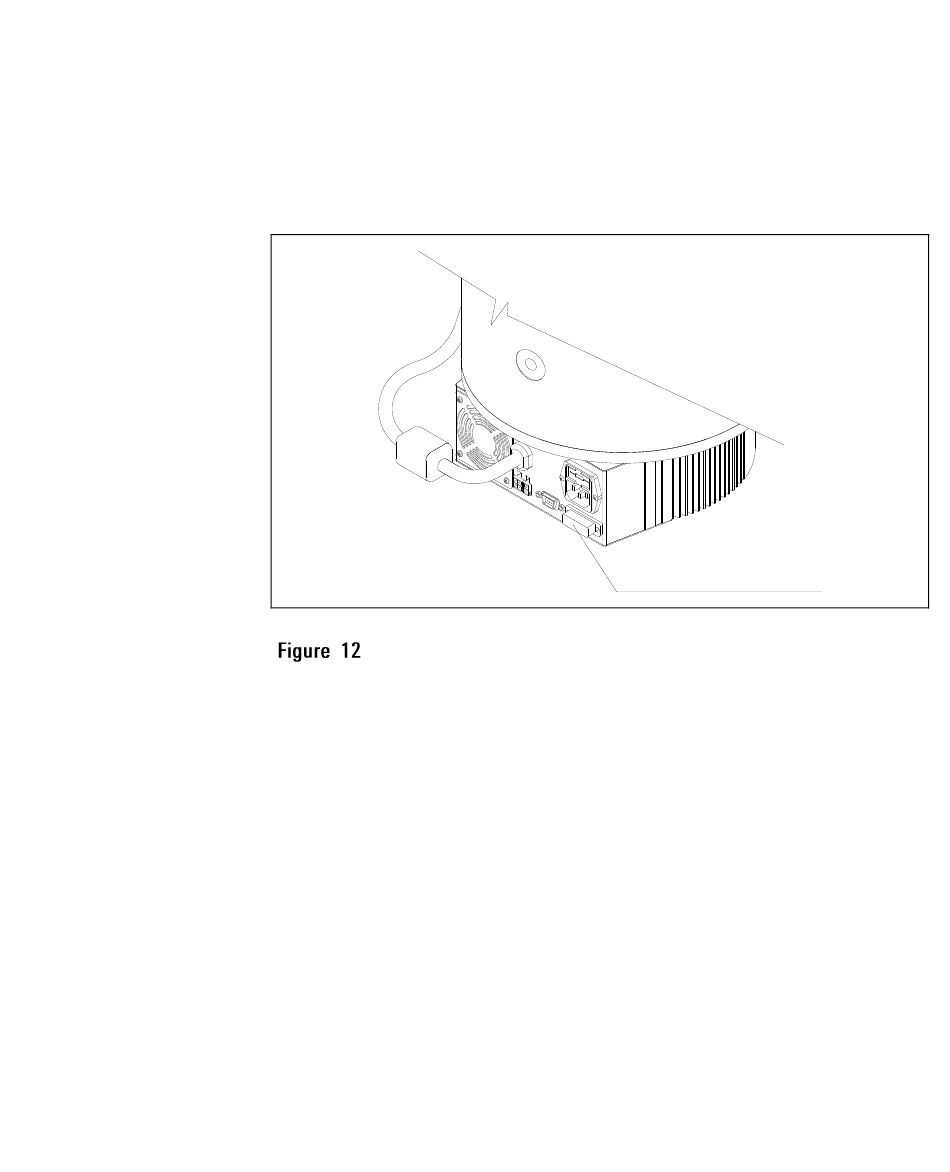

When no external input-output device is available this connector
must be closed with the supplied mating connector that short-circuits
the START and INTERLOCK inputs with the GROUND input (see the
following figure).
MATING CONNECTOR
How to connect the open-collector inputs of the controller
Here below there are the typical connections of the open collector
input of Turbo-V 1K-G to an external system. Two cases are
considered:
1
the customer supplies the 24 Vdc
2
the customer does not supply the 24 Vdc.
Please note that on the connector a 24 Vdc, 60 mA voltage, a
GROUND signal and the open collector pin are available.
