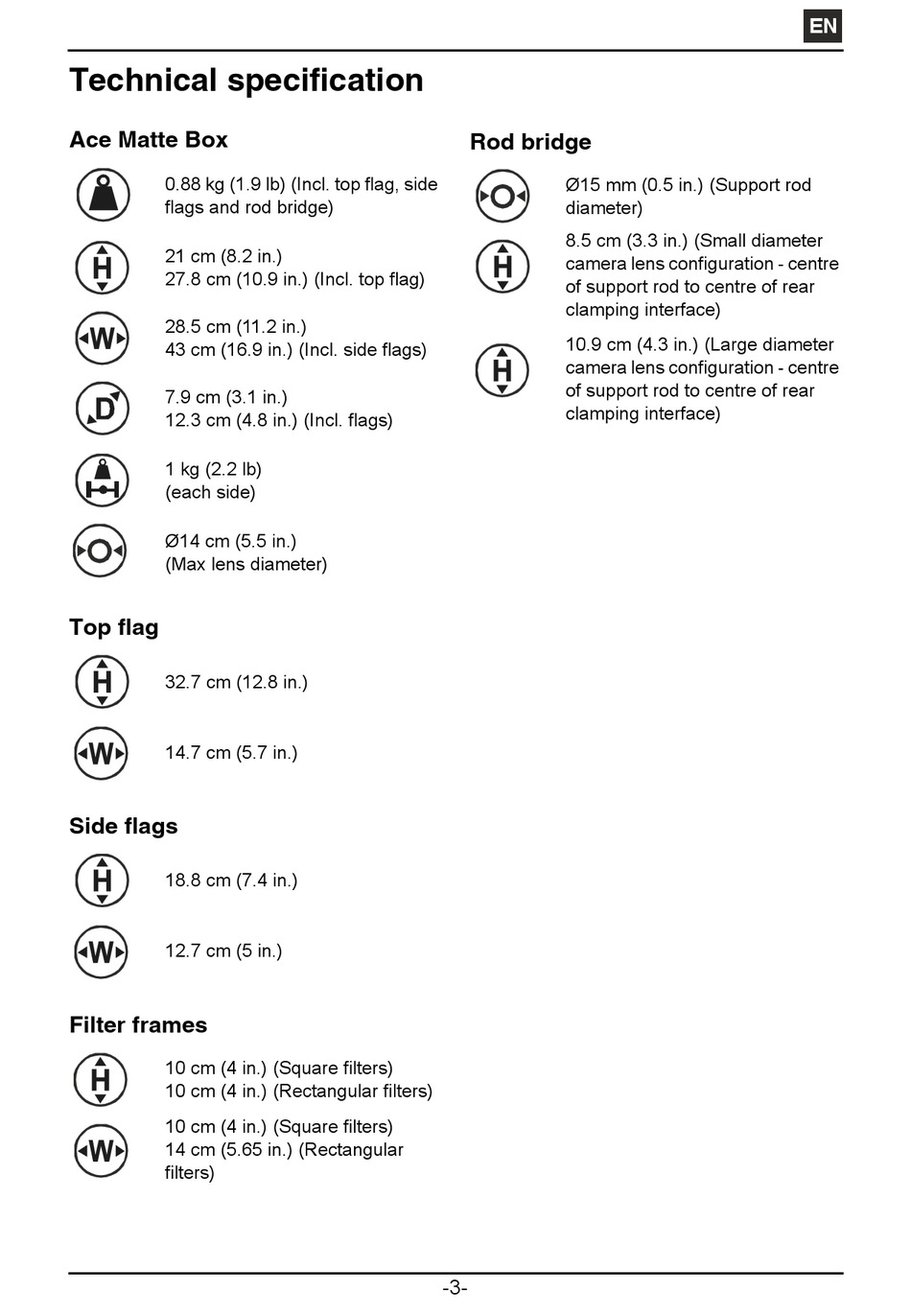

Technical specification

Ace Matte Box
0.88 kg (1.9 lb) (Incl. top flag, side
flags and rod bridge)
21 cm (8.2 in.)
27.8 cm (10.9 in.) (Incl. top flag)
28.5 cm (11.2 in.)
43 cm (16.9 in.) (Incl. side flags)
7.9 cm (3.1 in.)
12.3 cm (4.8 in.) (Incl. flags)
1 kg (2.2 lb)
(each side)
Ø14 cm (5.5 in.) 
(Max lens diameter)
Top flag
32.7 cm (12.8 in.)
14.7 cm (5.7 in.)
Side flags
18.8 cm (7.4 in.)
12.7 cm (5 in.)
Filter frames
10 cm (4 in.) (Square filters)
10 cm (4 in.) (Rectangular filters)
10 cm (4 in.) (Square filters)
14 cm (5.65 in.) (Rectangular
filters)
Rod bridge
Ø15 mm (0.5 in.) (Support rod
diameter)
8.5 cm (3.3 in.) (Small diameter
camera lens configuration - centre
of support rod to centre of rear
clamping interface)
10.9 cm (4.3 in.) (Large diameter
camera lens configuration - centre
of support rod to centre of rear
clamping interface)
