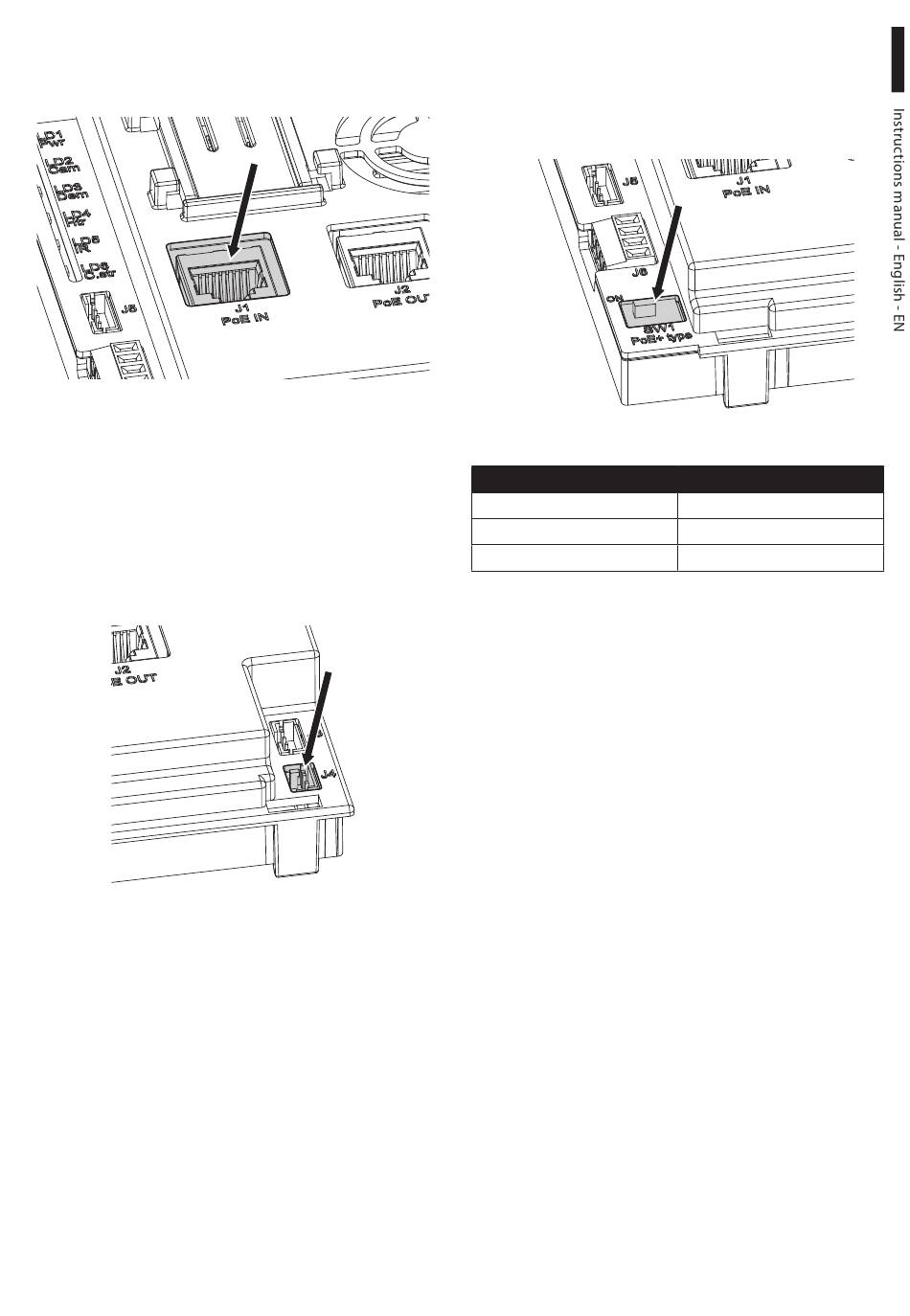

6.1.5 PoE cable connection

Connect the PoE cable from the Power Injector to the
J1 connector.
Fig. 11
Before powering the device, you must set the
maximum power consumption of the housing
operating on dip switch SW1 (7 Configuration, page
9).
6.1.6 Connection of the blower with
double filter for air renewal (optional)
Connect the fan cable to the J4 connector.
Fig. 12
MNVCHPVHPOE_1511_EN

7 Configuration

Before powering the device, you must set the
maximum power consumption of the housing
operating on dip switch SW1.
Fig. 13
ABSORBED POWER CONFIGURATION
SW1
OFF
ON
Tab. 2
According to the absorbed power, the system can
supply the options described in the table (Tab. 3,
page 10).
Maximum power
PoE class 3 (13W max)
Hi-PoE class 4 (25W max)
