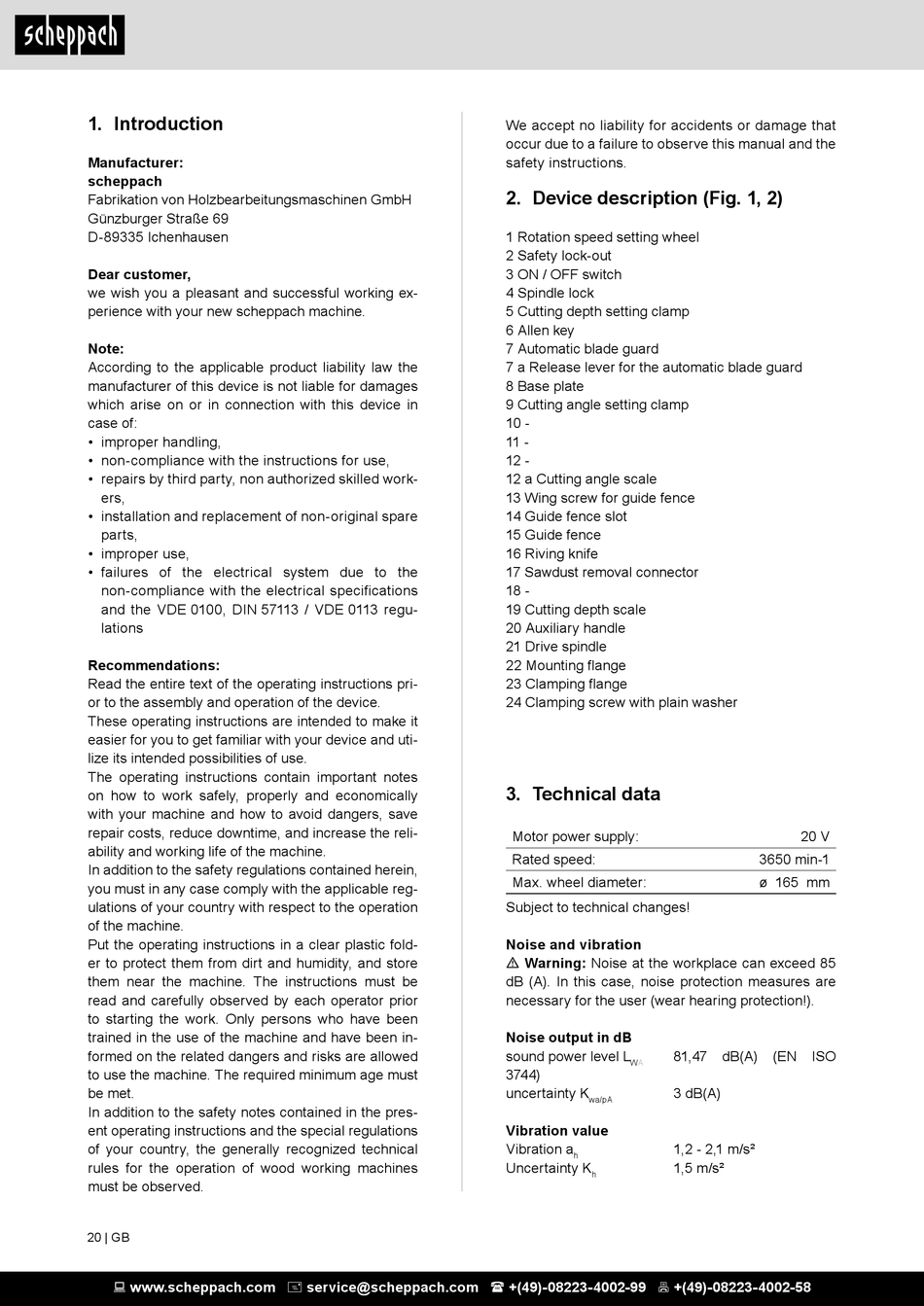

1. Introduction

Manufacturer:
scheppach
Fabrikation von Holzbearbeitungsmaschinen GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear customer,
we wish you a pleasant and successful working ex-
perience with your new scheppach machine.
Note:
According to the applicable product liability law the
manufacturer of this device is not liable for damages
which arise on or in connection with this device in
case of:
• improper handling,
• non-compliance with the instructions for use,
• repairs by third party, non authorized skilled work-
ers,
• installation and replacement of non-original spare
parts,
• improper use,
• failures of the electrical system due to the
non-compliance with the electrical specifications
and the VDE 0100, DIN 57113 / VDE 0113 regu-
lations
Recommendations:
Read the entire text of the operating instructions pri-
or to the assembly and operation of the device.
These operating instructions are intended to make it
easier for you to get familiar with your device and uti-
lize its intended possibilities of use.
The operating instructions contain important notes
on how to work safely, properly and economically
with your machine and how to avoid dangers, save
repair costs, reduce downtime, and increase the reli-
ability and working life of the machine.
In addition to the safety regulations contained herein,
you must in any case comply with the applicable reg-
ulations of your country with respect to the operation
of the machine.
Put the operating instructions in a clear plastic fold-
er to protect them from dirt and humidity, and store
them near the machine. The instructions must be
read and carefully observed by each operator prior
to starting the work. Only persons who have been
trained in the use of the machine and have been in-
formed on the related dangers and risks are allowed
to use the machine. The required minimum age must
be met.
In addition to the safety notes contained in the pres-
ent operating instructions and the special regulations
of your country, the generally recognized technical
rules for the operation of wood working machines
must be observed.
20 | GB
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
We accept no liability for accidents or damage that
occur due to a failure to observe this manual and the
safety instructions.
2. Device description (Fig. 1, 2)
1 Rotation speed setting wheel
2 Safety lock-out
3 ON / OFF switch
4 Spindle lock
5 Cutting depth setting clamp
6 Allen key
7 Automatic blade guard
7 a Release lever for the automatic blade guard
8 Base plate
9 Cutting angle setting clamp
10 -
11 -
12 -
12 a Cutting angle scale
13 Wing screw for guide fence
14 Guide fence slot
15 Guide fence
16 Riving knife
17 Sawdust removal connector
18 -
19 Cutting depth scale
20 Auxiliary handle
21 Drive spindle
22 Mounting flange
23 Clamping flange
24 Clamping screw with plain washer

3. Technical data

Motor power supply:
Rated speed:
Max. wheel diameter:
Subject to technical changes!
Noise and vibration
m Warning: Noise at the workplace can exceed 85
dB (A). In this case, noise protection measures are
necessary for the user (wear hearing protection!).
Noise output in dB
sound power level L 81,47
WA
3744)
uncertainty K 3 dB(A)
wa/pA
Vibration value
Vibration a 1,2 - 2,1 m/s²
h
Uncertainty K 1,5 m/s²
h
20 V
3650 min-1
ø 165 mm
dB(A) (EN ISO
