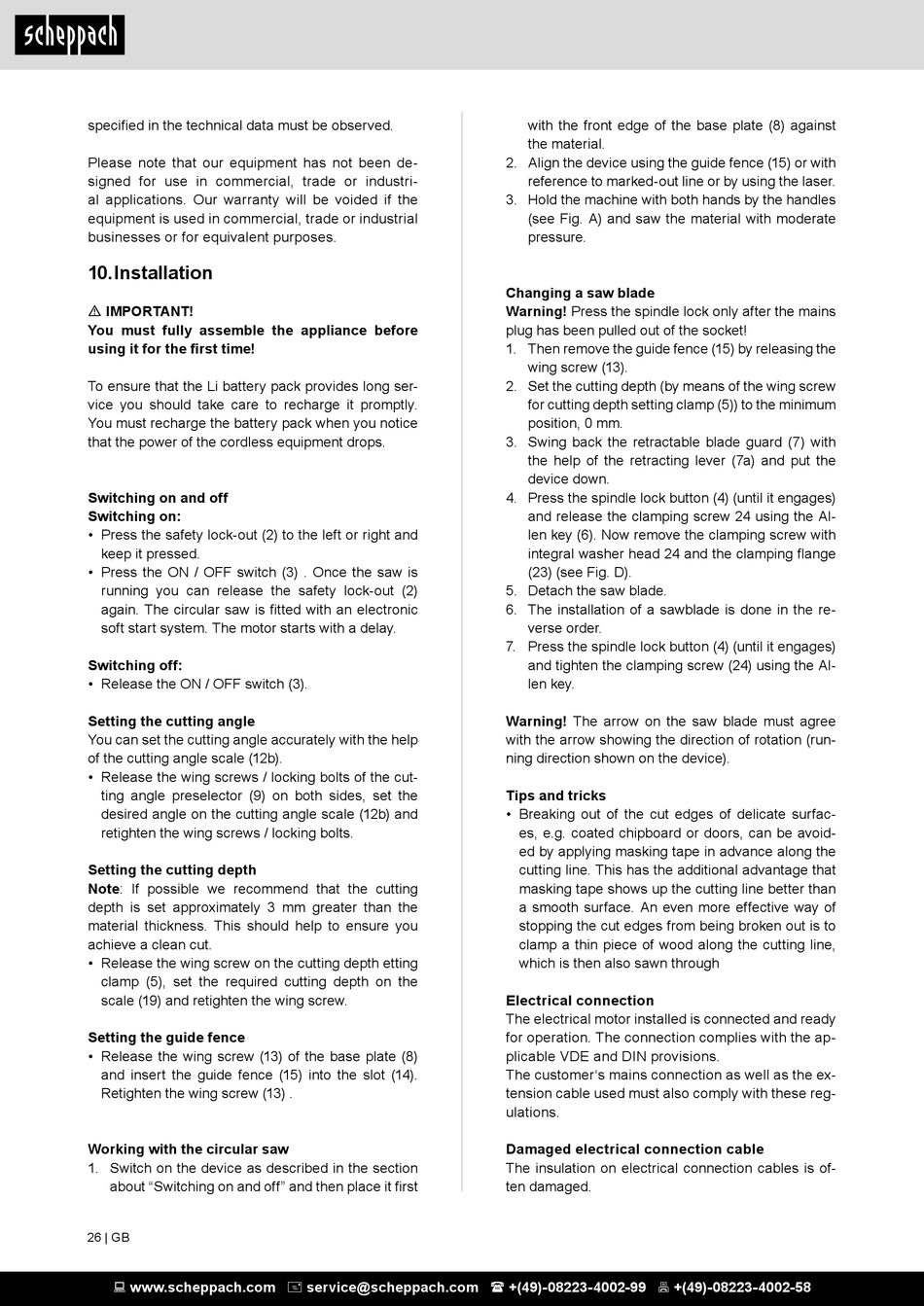

specified in the technical data must be observed.
Please note that our equipment has not been de-
signed for use in commercial, trade or industri-
al applications. Our warranty will be voided if the
equipment is used in commercial, trade or industrial
businesses or for equivalent purposes.

10. Installation

m IMPORTANT!
You must fully assemble the appliance before
using it for the first time!
To ensure that the Li battery pack provides long ser-
vice you should take care to recharge it promptly.
You must recharge the battery pack when you notice
that the power of the cordless equipment drops.
Switching on and off
Switching on:
• Press the safety lock-out (2) to the left or right and
keep it pressed.
• Press the ON / OFF switch (3) . Once the saw is
running you can release the safety lock-out (2)
again. The circular saw is fitted with an electronic
soft start system. The motor starts with a delay.
Switching off:
• Release the ON / OFF switch (3).
Setting the cutting angle
You can set the cutting angle accurately with the help
of the cutting angle scale (12b).
• Release the wing screws / locking bolts of the cut-
ting angle preselector (9) on both sides, set the
desired angle on the cutting angle scale (12b) and
retighten the wing screws / locking bolts.
Setting the cutting depth
Note: If possible we recommend that the cutting
depth is set approximately 3 mm greater than the
material thickness. This should help to ensure you
achieve a clean cut.
• Release the wing screw on the cutting depth etting
clamp (5), set the required cutting depth on the
scale (19) and retighten the wing screw.
Setting the guide fence
• Release the wing screw (13) of the base plate (8)
and insert the guide fence (15) into the slot (14).
Retighten the wing screw (13) .
Working with the circular saw
1. Switch on the device as described in the section
about "Switching on and off" and then place it first
26 | GB
 www.scheppach.com  service@scheppach.com  +(49)-08223-4002-99  +(49)-08223-4002-58
with the front edge of the base plate (8) against
the material.
2. Align the device using the guide fence (15) or with
reference to marked-out line or by using the laser.
3. Hold the machine with both hands by the handles
(see Fig. A) and saw the material with moderate
pressure.
Changing a saw blade
Warning! Press the spindle lock only after the mains
plug has been pulled out of the socket!
1. Then remove the guide fence (15) by releasing the
wing screw (13).
2. Set the cutting depth (by means of the wing screw
for cutting depth setting clamp (5)) to the minimum
position, 0 mm.
3. Swing back the retractable blade guard (7) with
the help of the retracting lever (7a) and put the
device down.
4. Press the spindle lock button (4) (until it engages)
and release the clamping screw 24 using the Al-
len key (6). Now remove the clamping screw with
integral washer head 24 and the clamping flange
(23) (see Fig. D).
5. Detach the saw blade.
6. The installation of a sawblade is done in the re-
verse order.
7. Press the spindle lock button (4) (until it engages)
and tighten the clamping screw (24) using the Al-
len key.
Warning! The arrow on the saw blade must agree
with the arrow showing the direction of rotation (run-
ning direction shown on the device).
Tips and tricks
• Breaking out of the cut edges of delicate surfac-
es, e.g. coated chipboard or doors, can be avoid-
ed by applying masking tape in advance along the
cutting line. This has the additional advantage that
masking tape shows up the cutting line better than
a smooth surface. An even more effective way of
stopping the cut edges from being broken out is to
clamp a thin piece of wood along the cutting line,
which is then also sawn through

Electrical connection

The electrical motor installed is connected and ready
for operation. The connection complies with the ap-
plicable VDE and DIN provisions.
The customer's mains connection as well as the ex-
tension cable used must also comply with these reg-
ulations.
Damaged electrical connection cable
The insulation on electrical connection cables is of-
ten damaged.
