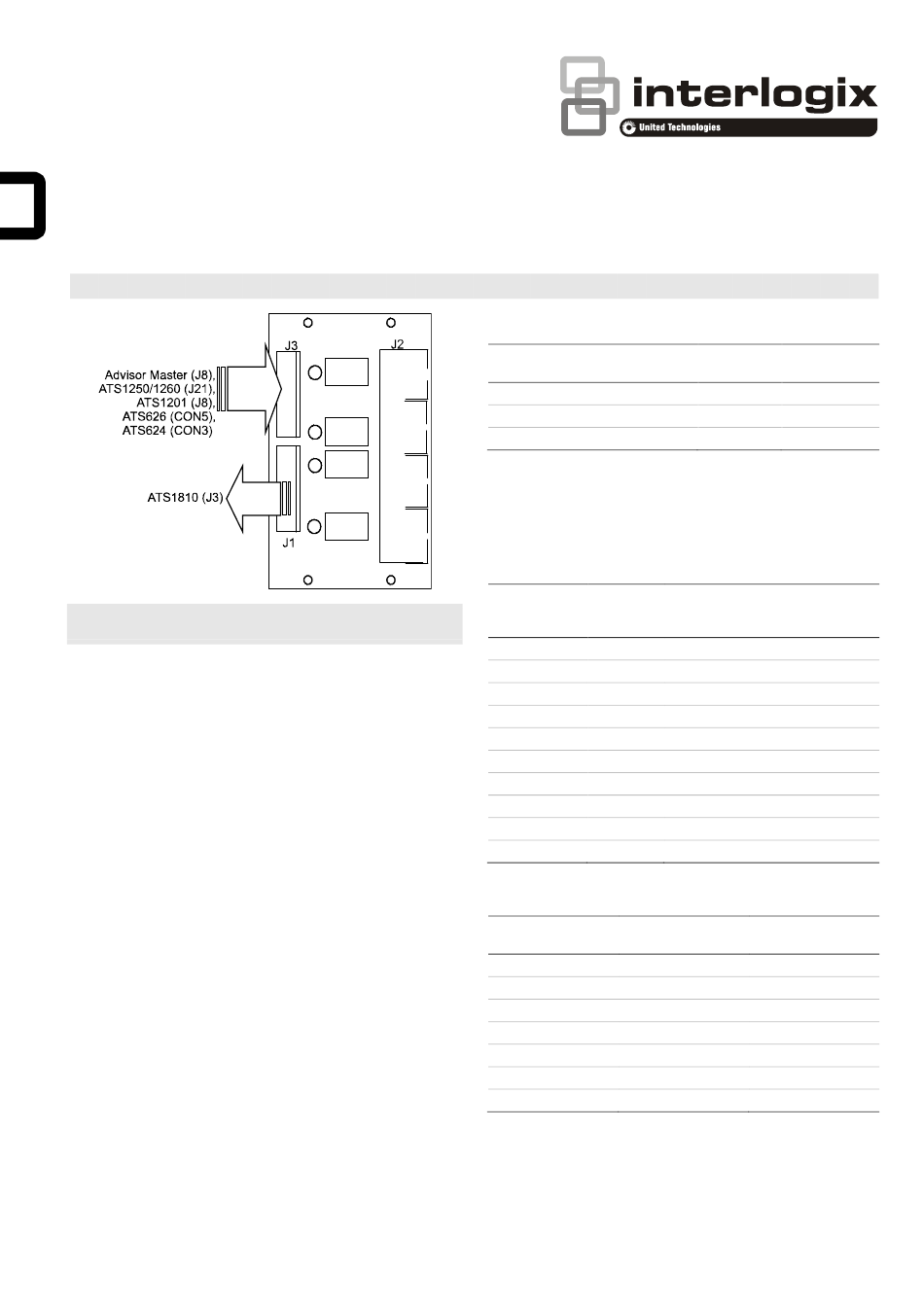

ATS1810 Four-Way Relay Card Installation
Sheet
EN DA DE ES
FI
FR
EN: Installation Sheet
Description
The four-way relay card ATS1810 provides four single pole
relays with connection terminals to the common (C), normally
open (NO), and normally closed (NC) contacts. The relay
contacts are rated at 1 A at 0 to 30 V ; reducing to 300 mA
at 48 V . If fitted to a DGP, two relay modules can be
connected together in daisy-chain fashion to provide up to
eight relays on ATS1201. When fitted to the ATS control panel
or four-door/four-lift DGP, only one relay module is allowed
providing four relays. A LED is provided for every relay to
indicate activation.
Mounting the unit
ATS control panel and ATS1250/1260 four-door/four-lift
DGP: Depending on the type of enclosure and the battery
used, the ATS1810 relay cards must be mounted in a
separate enclosure and are connected with the cable
supplied or one ATS1810 can be mounted inside the
enclosure.
All 8 to 32 zone DGPs: Up to two ATS1810 can be
mounted on existing standoffs in all 8 to 32 zones data
gathering panels, depending on what other modules are
fitted.
Note:
ATS1810 is a size "B" PCB.
© 2019 UTC Fire & Security Americas Corporation, Inc.
IT
NL NO PL PT SK SV
Table 1: Maximum four-way relay cards per ATS device
Device
Advisor Master and ATS1250/1260
DGPs (all versions) and ATS626
ATS624
Note:
Clocked relay/open collector cards and 4-way relay
cards cannot be used together on the same device.
Wiring
Table 2: Interconnection between the relay card and the different
ATS equipment
ATS1810 relay
Name
card IN J3
1
+12 V
2
Relay 1
3
Relay 2
4
Relay 3
5
Relay 4
6
Relay 5
7
Relay 6
8
Relay 7
9
Relay 8
10
0 V
* Not used on an Advisor Master control panel.
Table 3: Interconnection between two ATS1810 modules
ATS1810 relay card
Name
OUT J1
1
+12 V
2
Relay 5
3
Relay 6
4
Relay 7
5
Relay 8
6 to 9
Not used
10
0 V
1 / 1
Maximum
Maximum
cards
usable relays
1
4
2
8
1
4
Advisor Master (J8), ATS1250/1260
(J21), ATS1201 (J8), ATS626
(CON5), or ATS624 (CON3)
1
2
3
4
5
6*
7*
8*
9*
10
ATS1810 relay card
IN J3
1
2
3
4
5
6 to 9
10
P/N 1077858 (ML) • REV D • ISS 30MAY19
