Interlogix ATS1810 Installationsanleitung

ATS1810 Four-Way Relay Card Installation
Sheet
EN DA DE ES FI FR
Advisor Master (J8),
ATS1250/1260 (J21),
ATS1201 (J8),
ATS626 (CON5)
ATS1810 (J3)
EN: Installation Sheet
Description

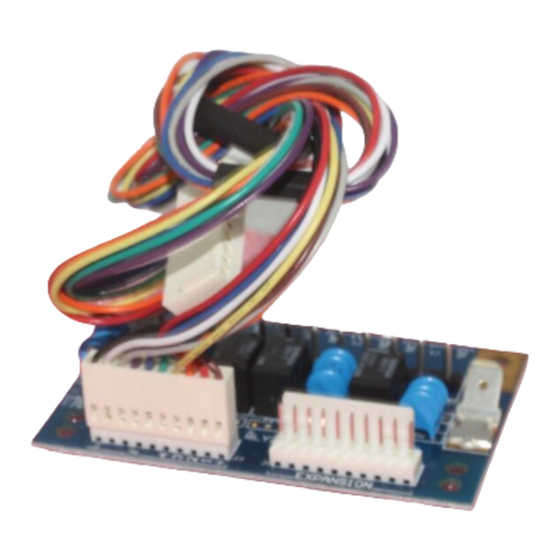

The four-way relay card ATS1810 provides four single pole
relays with connection terminals to the common (C), normally
open (NO), and normally closed (NC) contacts. The relay
contacts are rated at 1 A at 0 to 30 V ; reducing to 300 mA
at 48 V . If fitted to a DGP, two relay modules can be
connected together in daisy-chain fashion to provide up to
eight relays on ATS1201. When fitted to the Advisor Master
control panel or four-door/four-lift DGP, only one relay module
is allowed providing four relays. A LED is provided for every
relay to indicate activation.
Mounting the unit
•
Advisor Master control panel and ATS1250/1260 four-
door/four-lift DGP: Depending on the type of enclosure
and the battery used, the ATS1810 relay cards must be
mounted in a separate enclosure and are connected with
the cable supplied or one ATS1810 can be mounted inside
the enclosure.
•
All 8 to 32 zone DGPs: Up to two ATS1810 can be
mounted on existing standoffs in all 8 to 32 zones data
gathering panels, depending on what other modules are
fitted.
Note: ATS1810 is a size "B" PCB.
Table 1: Maximum four-way relay cards per ATS device
Device
Advisor Master and ATS1250/1260
DGPs (all versions) and ATS626
© 2014 UTC Fire & Security Americas Corporation, Inc.
IT NL NO PL PT SV
J2
J3
4
3
2
1
J1
Maximum Maximum
cards usable relays
1 4
2 8
Note: Clocked relay/open collector cards and 4-way relay
cards cannot be used together on the same device.
Wiring
Table 2: Interconnection between the relay card and the different
ATS equipment
ATS1810 relay Name
card IN J3
1 +12 V
2 Relay 1 2
3 Relay 2 3
4 Relay 3 4
5 Relay 4 5
6 Relay 5 6*
7 Relay 6 7*
8 Relay 7 8*
9 Relay 8 9*
10 0 V
* Not used on an Advisor Master control panel.
Table 3: Interconnection between two ATS1810 modules
ATS1810 relay Name
card OUT J1
1 +12 V
2 Relay 5
3 Relay 6
4 Relay 7
5 Relay 8
6 to 9 Not used
10 0 V
Specifications
Supply voltage
Current:
Standby
Maximum (all relays active)
Contact rating:
Current, max.
Voltage, max.
Dimensions
Weight
Operating temperature
Relative humidity
1 / 12
Advisor Master (J8), ATS1250/1260
(J21), ATS1201 (J8), or ATS626 (CON5)
1
10
ATS1810 relay card IN J3
1
2
3
4
5
6 to 9
10
10.5 to 13.8 V (12 V
0 mA
100 mA
1A at 0 to 30 V
300 mA at 48 V
80 × 52 mm (size "B" board)
123 g
−10 to +55°C
< 95% noncondensing
P/N 1077858 (ML) • REV B • ISS 18APR14
nom.)
