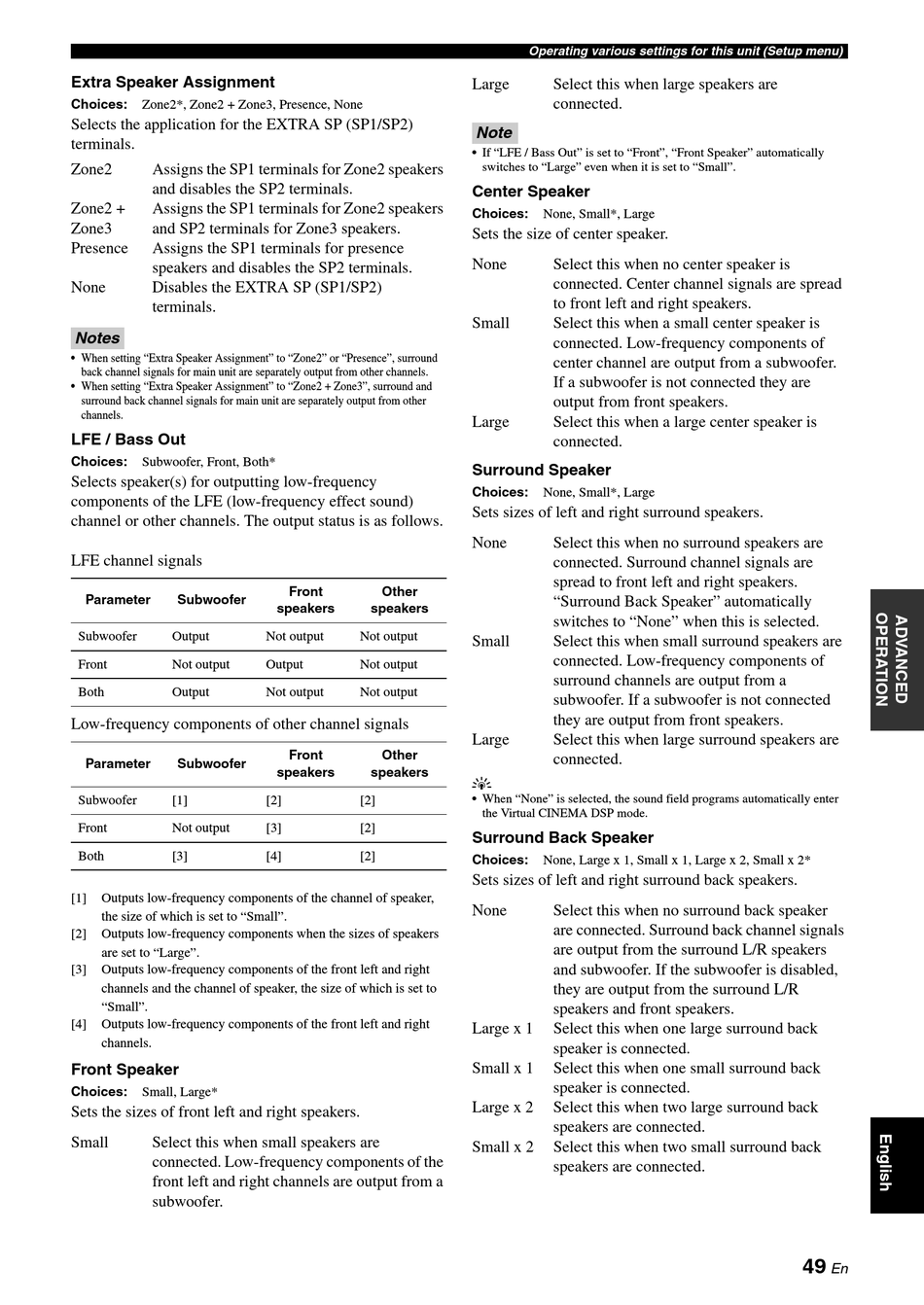

Extra Speaker Assignment
Choices: Zone2*, Zone2 + Zone3, Presence, None
Selects the application for the EXTRA SP (SP1/SP2)
terminals.
Zone2 Assigns the SP1 terminals for Zone2 speakers
and disables the SP2 terminals.
Zone2 + Assigns the SP1 terminals for Zone2 speakers
Zone3 and SP2 terminals for Zone3 speakers.
Presence Assigns the SP1 terminals for presence
speakers and disables the SP2 terminals.
None Disables the EXTRA SP (SP1/SP2)
terminals.
Notes
• When setting "Extra Speaker Assignment" to "Zone2" or "Presence", surround
back channel signals for main unit are separately output from other channels.
• When setting "Extra Speaker Assignment" to "Zone2 + Zone3", surround and
surround back channel signals for main unit are separately output from other
channels.
LFE / Bass Out
Choices:
Subwoofer, Front, Both*
Selects speaker(s) for outputting low-frequency
components of the LFE (low-frequency effect sound)
channel or other channels. The output status is as follows.
LFE channel signals
Parameter Subwoofer
Subwoofer Output
Front Not output
Both Output
Low-frequency components of other channel signals
Parameter Subwoofer
Subwoofer [1]
Front Not output
Both [3]
[1] Outputs low-frequency components of the channel of speaker,
the size of which is set to "Small".
[2] Outputs low-frequency components when the sizes of speakers
are set to "Large".
[3] Outputs low-frequency components of the front left and right
channels and the channel of speaker, the size of which is set to
"Small".
[4] Outputs low-frequency components of the front left and right
channels.
Front Speaker
Choices:
Small, Large*
Sets the sizes of front left and right speakers.
Small Select this when small speakers are
connected. Low-frequency components of the
front left and right channels are output from a
subwoofer.
Front Other
speakers speakers
Not output Not output
Output Not output
Not output Not output
Front Other
speakers speakers
[2] [2]
[3] [2]
[4] [2]
Operating various settings for this unit (Setup menu)
Large Select this when large speakers are
connected.
Note
• If "LFE / Bass Out" is set to "Front", "Front Speaker" automatically
switches to "Large" even when it is set to "Small".
Center Speaker
Choices: None, Small*, Large
Sets the size of center speaker.
None Select this when no center speaker is
connected. Center channel signals are spread
to front left and right speakers.
Small Select this when a small center speaker is
connected. Low-frequency components of
center channel are output from a subwoofer.
If a subwoofer is not connected they are
output from front speakers.
Large Select this when a large center speaker is
connected.
Surround Speaker
Choices: None, Small*, Large
Sets sizes of left and right surround speakers.
None Select this when no surround speakers are
connected. Surround channel signals are
spread to front left and right speakers.
"Surround Back Speaker" automatically
switches to "None" when this is selected.
Small Select this when small surround speakers are
connected. Low-frequency components of
surround channels are output from a
subwoofer. If a subwoofer is not connected
they are output from front speakers.
Large Select this when large surround speakers are
connected.
y
• When "None" is selected, the sound field programs automatically enter
the Virtual CINEMA DSP mode.
Surround Back Speaker
Choices: None, Large x 1, Small x 1, Large x 2, Small x 2*
Sets sizes of left and right surround back speakers.
None Select this when no surround back speaker
are connected. Surround back channel signals
are output from the surround L/R speakers
and subwoofer. If the subwoofer is disabled,
they are output from the surround L/R
speakers and front speakers.
Large x 1 Select this when one large surround back
speaker is connected.
Small x 1 Select this when one small surround back
speaker is connected.
Large x 2 Select this when two large surround back
speakers are connected.
Small x 2 Select this when two small surround back
speakers are connected.
