Housing: For front panel mounting
96 x 48 mm acc. to
DIN 43700,
RAL 7021, dark grey
Weight: appr. 150 g
Protection: IP 65 (front)
Cleaning:
The front of the units is to be cleaned only with
a soft wet (water!) cloth.

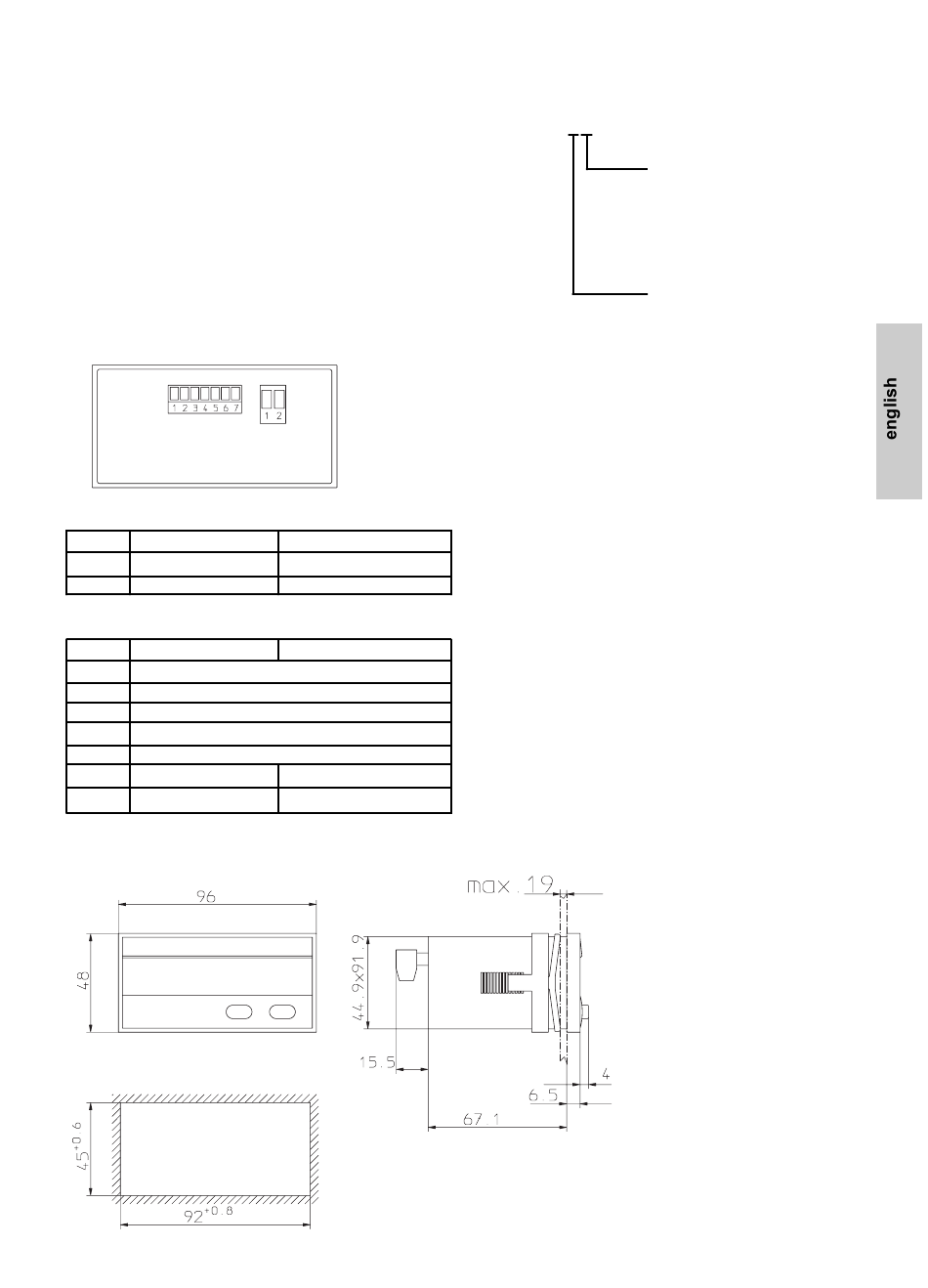

6. Terminal assignment
X1
X2 terminal assignment
Pin AC Version
1 90 ... 260 V AC
2 90 ... 260 V AC
X1 terminal assignment
Pin AC Version
1 n.c.
2 n.c.
3 RESET
4 n.c.
5 INP
6 GND
7 + 24 Vout
9. Dimensions
Front panel cut-out
X2
DC Version
0 V DC (GND)
10 ... 30 V DC
DC Version
n.c.
n.c.
7. Ordering code
6.540.012.XX0
Input sensitivity
0 = Standard level (HTL)
A = 4 ... 30 V DC level
Suply voltage
0 = 90 ... 260 V AC
3 = 10 ... 30 V DC
8. Delivery includes:
Digital display
2 pin screw terminal RM 5,08
7 pin screw terminal RM 3,81
Panel mounting clip
Seal
Multilingual operating instructions
Low (0 ... 2 V DC)
High (4 ... 30 V DC)
5
