SPEAKER SETUP
FRONT terminals
Connect one or two speaker systems (6, 7) to these
terminals. If you use only one speaker system, connect it
to the FRONT A or B terminals.
CENTER terminals
Connect a center speaker (8) to these terminals.
SURROUND terminals
Connect surround speakers (4, 5) to these terminals.
SUBWOOFER jack
Connect a subwoofer with built-in amplifier (1), such as
the YAMAHA Active Servo Processing Subwoofer
System, to this jack.
SURROUND BACK terminals
Connect surround back speakers (9, 10) to these terminals.
If you only connect one surround back speaker, connect it
to the left (L) terminals.
PRESENCE terminals
Connect presence speakers (2, 3) to these terminals.
*
If you are using either the U.S.A., Canada, Australia, U.K. or
Europe model, you can also use these speakers as Zone 2
speakers (see page 71).
14
2
3
6
8
7
5

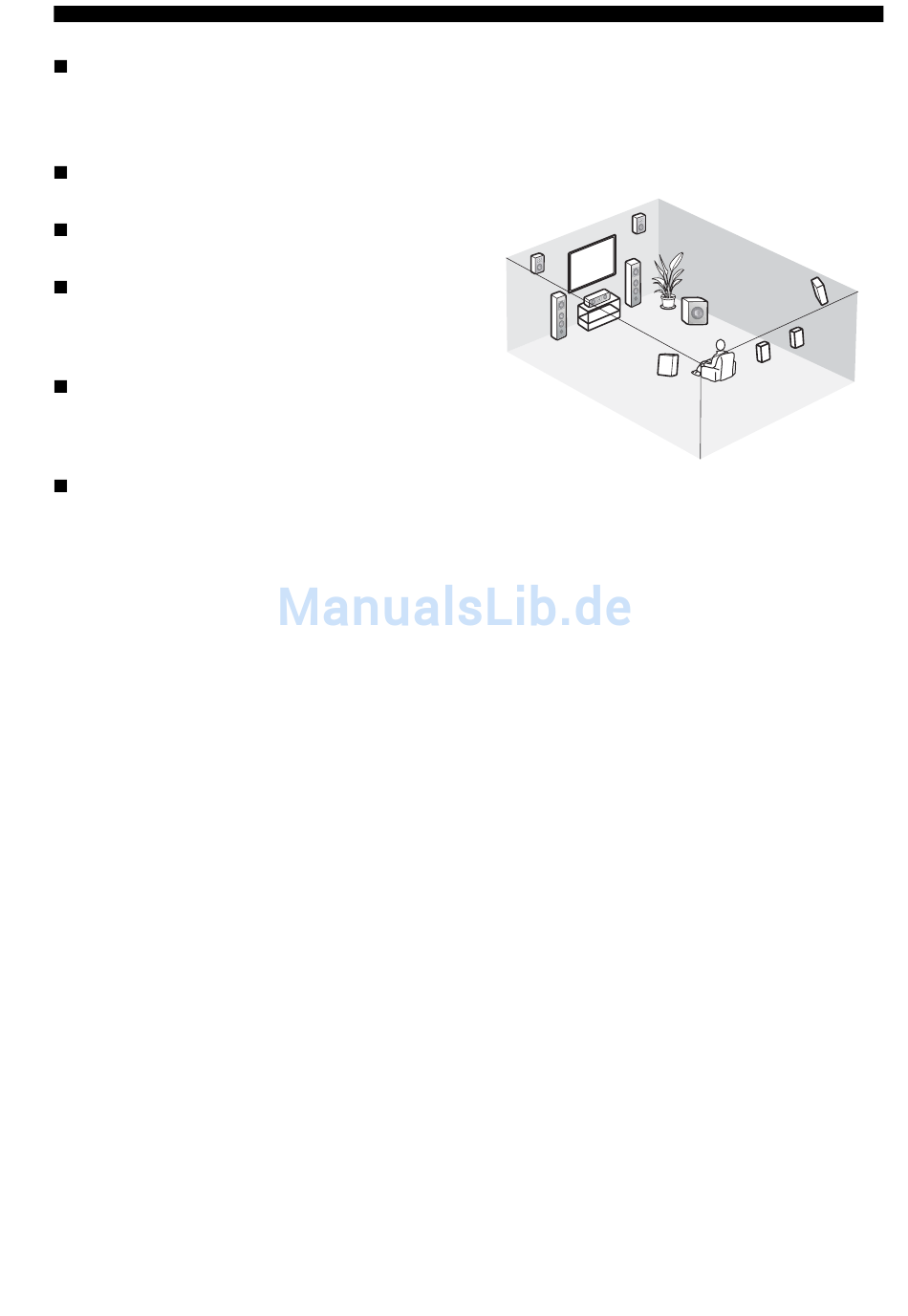

Speaker layout
1
4
9
1 0
