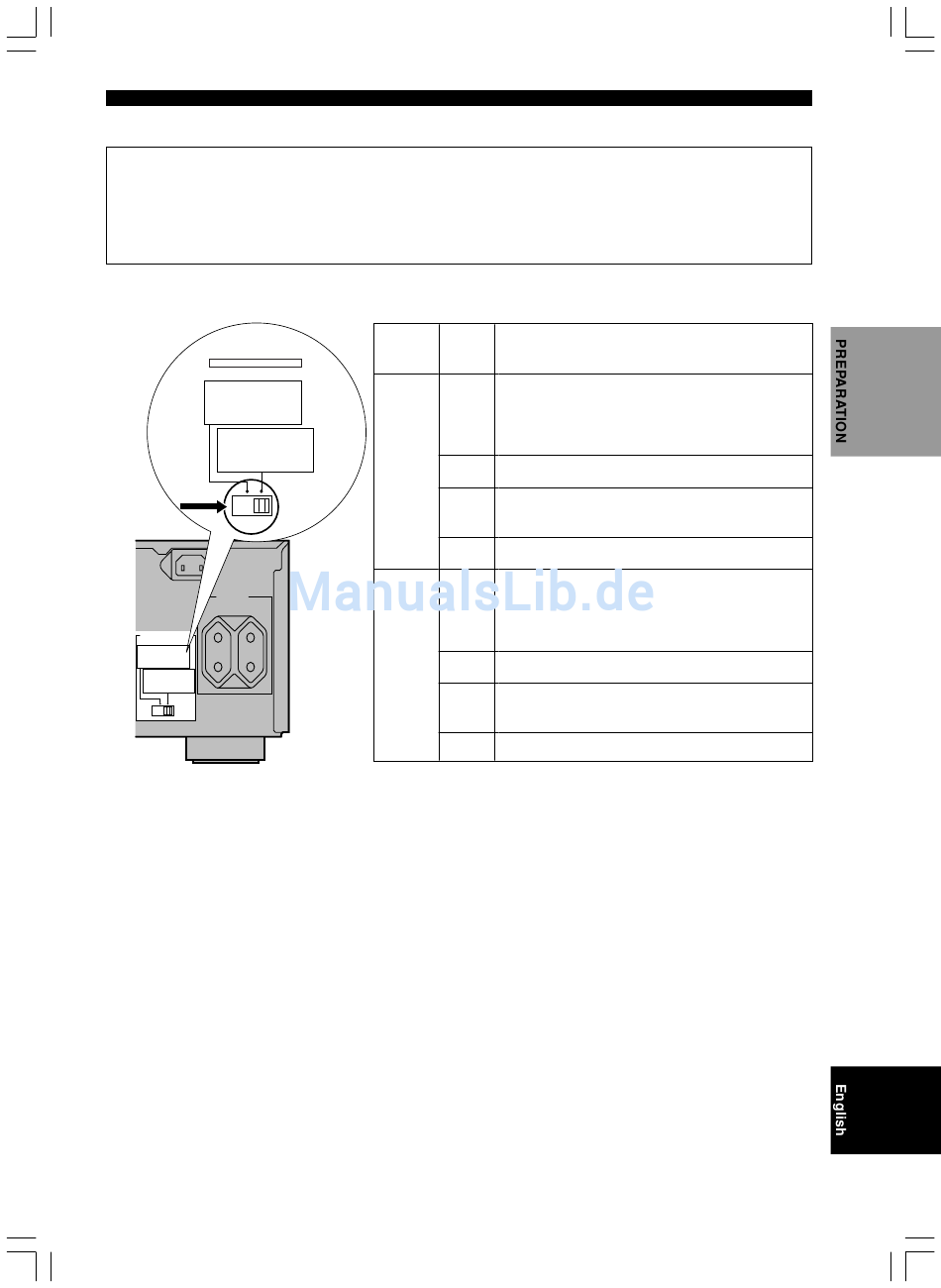

I IMPEDANCE SELECTOR switch
WARNING
Do not change the IMPEDANCE SELECTOR switch setting while the power of this unit is on, otherwise this unit
may be damaged.
If this unit fails to turn on when STANDBY/ON (or SYSTEM POWER) is pressed, the IMPEDANCE SELECTOR
switch may not be fully slid to either position. If so, slide the switch to either position fully when this unit is in the
standby mode.
Select the left and right position according to the impedance of the speakers in your system. Be sure to move this switch
only when this unit is in the standby mode.
IMPEDANCE
SELECTOR
switch
IMPEDANCE SELECTOR
SET BEFORE POWER ON
MAIN A OR B: 4ΩMIN. /SPEAKER
A+B: 8ΩMIN. /SPEAKER
CENTER : 6ΩMIN. /SPEAKER
REAR CENTER :
6ΩMIN. /SPEAKER
:
REAR 6ΩMIN. /SPEAKER
MAIN A OR B:
A+B:
CENTER
REAR CENTER :
REAR
AC IN
AC OUTLETS
IMPEDANCE SELECTOR
SET BEFORE POWER ON
MAIN A OR B: 4ΩMIN. /SPEAKER
A+B: 8ΩMIN. /SPEAKER
: 6ΩMIN. /SPEAKER
:
6ΩMIN. /SPEAKER
: 6ΩMIN. /SPEAKER
MAIN A OR B: 8ΩMIN. /SPEAKER
A+B: 16ΩMIN. /SPEAKER
: 8ΩMIN. /SPEAKER
REAR CENTER : 8ΩMIN. /SPEAKER
: 8ΩMIN. /SPEAKER
(Europe model)
0103V1300_10-20_EN-GB.p65
Switch
position
8ΩMIN. /SPEAKER
16ΩMIN. /SPEAKER
: 8ΩMIN. /SPEAKER
8ΩMIN. /SPEAKER
: 8ΩMIN. /SPEAKER
Left
Right
13
Speaker Impedance level
Main If you use one set of main speakers, the impedance of
each speaker must be 4 Ω or higher.
If you use two sets of main speakers, the impedance of
each speaker must be 8 Ω or higher.
The impedance must be 6 Ω or higher.
Center
The impedance must be 6 Ω or higher.
Rear
Center
The impedance of each speaker must be 6 Ω or higher.
Rear
Main If you use one set of main speakers, the impedance of
each speaker must be 8 Ω or higher.
If you use two sets of main speakers, the impedance of
each speaker must be 16 Ω or higher.
The impedance must be 8 Ω or higher.
Center
The impedance must be 8 Ω or higher.
Rear
Center
The impedance of each speaker must be 8 Ω or higher.
Rear
2002.11.07, 12:07
SPEAKER SETUP
