8

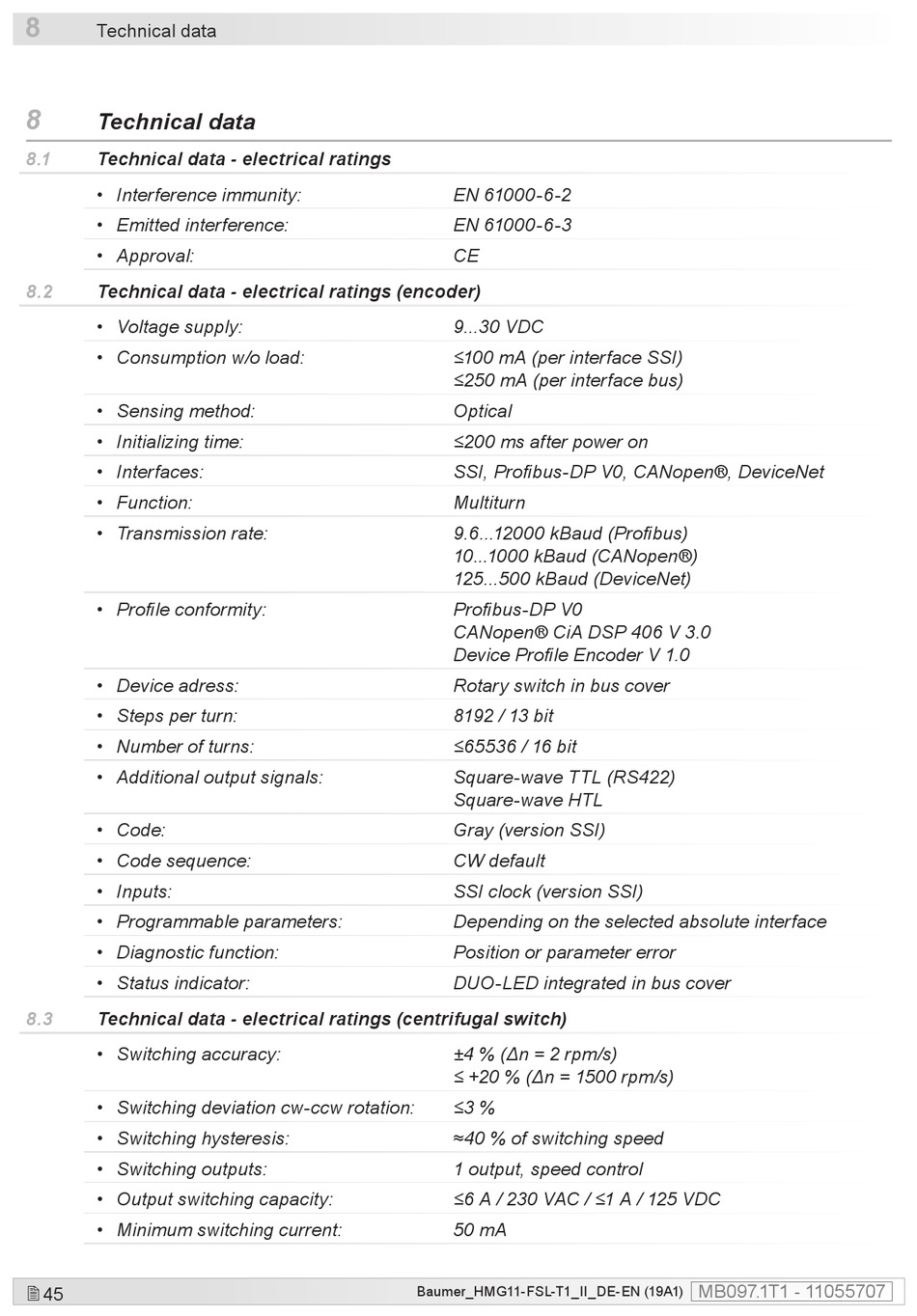

Technical data
8
Technical data
8.1
Technical data - electrical ratings
• Interference immunity:
• Emitted interference:
• Approval:
8.2
Technical data - electrical ratings (encoder)
• Voltage supply:
• Consumption w/o load:
• Sensing method:
• Initializing time:
• Interfaces:
• Function:
• Transmission rate:
• Profile conformity:
• Device adress:
• Steps per turn:
• Number of turns:
• Additional output signals:
• Code:
• Code sequence:
• Inputs:
• Programmable parameters:
• Diagnostic function:
• Status indicator:
8.3
Technical data - electrical ratings (centrifugal switch)
• Switching accuracy:
• Switching deviation cw-ccw rotation:
• Switching hysteresis:
• Switching outputs:
• Output switching capacity:
• Minimum switching current:
45
EN 61000-6-2
EN 61000-6-3
CE
9...30 VDC
≤100 mA (per interface SSI)
≤250 mA (per interface bus)
Optical
≤200 ms after power on
SSI, Profibus-DP V0, CANopen®, DeviceNet
Multiturn
9.6...12000 kBaud (Profibus)
10...1000 kBaud (CANopen®)
125...500 kBaud (DeviceNet)
Profibus-DP V0
CANopen® CiA DSP 406 V 3.0
Device Profile Encoder V 1.0
Rotary switch in bus cover
8192 / 13 bit
≤65536 / 16 bit
Square-wave TTL (RS422)
Square-wave HTL
Gray (version SSI)
CW default
SSI clock (version SSI)
Depending on the selected absolute interface
Position or parameter error
DUO-LED integrated in bus cover
±4 % (Δn = 2 rpm/s)
≤ +20 % (Δn = 1500 rpm/s)
≤3 %
≈40 % of switching speed
1 output, speed control
≤6 A / 230 VAC / ≤1 A / 125 VDC
50 mA
Baumer_HMG11-FSL-T1_II_DE-EN (19A1)
MB097.1T1 - 11055707
