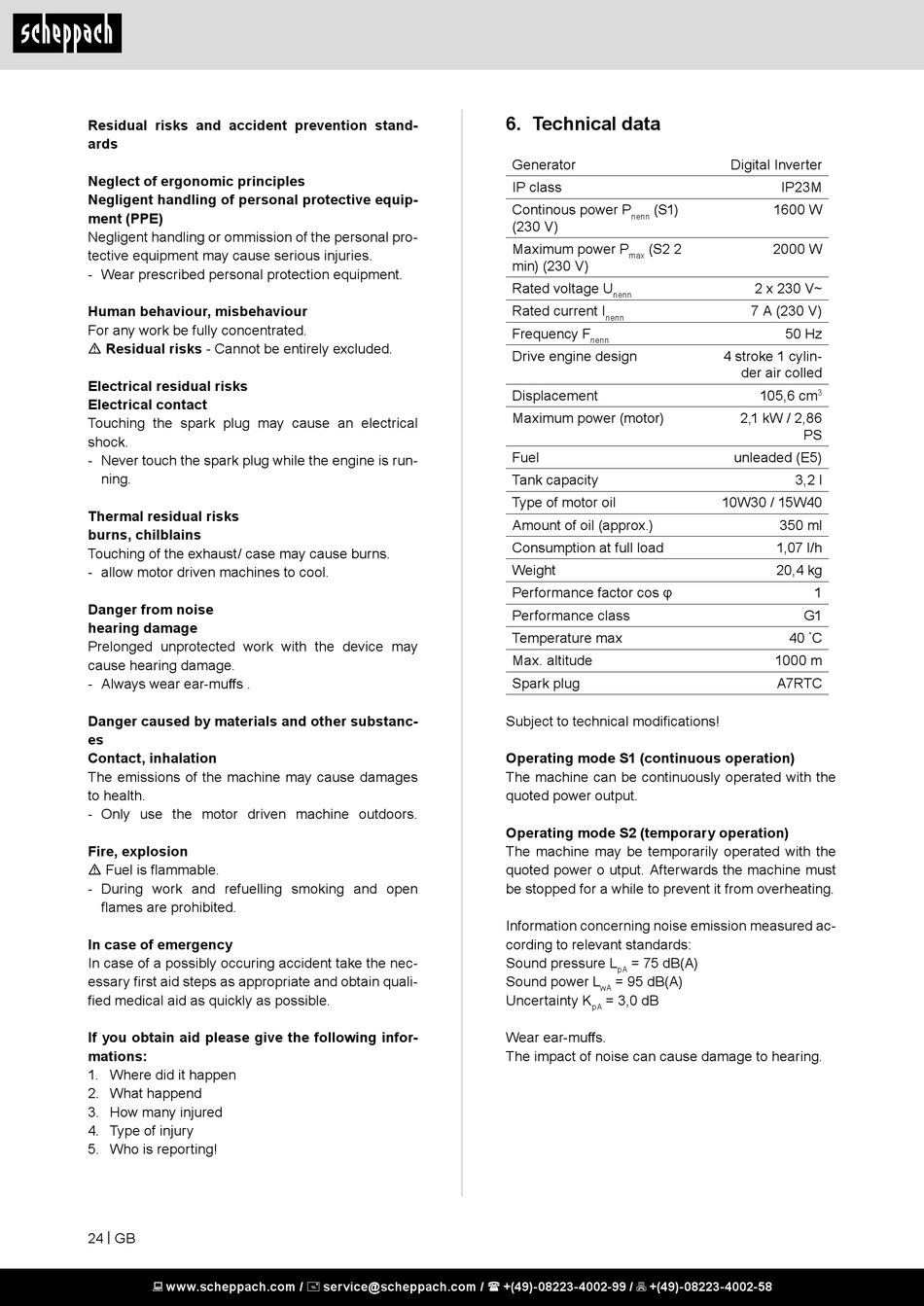

Technical Data - Scheppach SG2000 Bedienungsanleitung

Residual risks and accident prevention stand-
ards
Neglect of ergonomic principles
Negligent handling of personal protective equip-
ment (PPE)
Negligent handling or ommission of the personal pro-
tective equipment may cause serious injuries.
- Wear prescribed personal protection equipment.
Human behaviour, misbehaviour
For any work be fully concentrated.
m Residual risks - Cannot be entirely excluded.
Electrical residual risks
Electrical contact
Touching the spark plug may cause an electrical
shock.
- Never touch the spark plug while the engine is run-
ning.
Thermal residual risks
burns, chilblains
Touching of the exhaust/ case may cause burns.
- allow motor driven machines to cool.
Danger from noise
hearing damage
Prelonged unprotected work with the device may
cause hearing damage.
- Always wear ear-muffs .
Danger caused by materials and other substanc-
es
Contact, inhalation
The emissions of the machine may cause damages
to health.
- Only use the motor driven machine outdoors.
Fire, explosion
m Fuel is flammable.
- During work and refuelling smoking and open
flames are prohibited.
In case of emergency
In case of a possibly occuring accident take the nec-
essary first aid steps as appropriate and obtain quali-
fied medical aid as quickly as possible.
If you obtain aid please give the following infor-
mations:
1. Where did it happen
2. What happend
3. How many injured
4. Type of injury
5. Who is reporting!
24 | GB
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58

6. Technical data

Generator
IP class
Continous power P (S1)
nenn
(230 V)
Maximum power P (S2 2
max
min) (230 V)
Rated voltage U
nenn
Rated current I
nenn
Frequency F
nenn
Drive engine design
Displacement
Maximum power (motor)
Fuel
Tank capacity
Type of motor oil
Amount of oil (approx.)
Consumption at full load
Weight
Performance factor cos φ
Performance class
Temperature max
Max. altitude
Spark plug
Subject to technical modifications!
Operating mode S1 (continuous operation)
The machine can be continuously operated with the
quoted power output.
Operating mode S2 (temporary operation)
The machine may be temporarily operated with the
quoted power o utput. Afterwards the machine must
be stopped for a while to prevent it from overheating.
Information concerning noise emission measured ac-
cording to relevant standards:
Sound pressure L = 75 dB(A)
pA
Sound power L = 95 dB(A)
wA
Uncertainty K = 3,0 dB
pA
Wear ear-muffs.
The impact of noise can cause damage to hearing.
Digital Inverter
IP23M
1600 W
2000 W
2 x 230 V~
7 A (230 V)
50 Hz
4 stroke 1 cylin-
der air colled
105,6 cm
3
2,1 kW / 2,86
PS
unleaded (E5)
3,2 l
10W30 / 15W40
350 ml
1,07 l/h
20,4 kg
1
G1
40 C
°
1000 m
A7RTC
