ASROCK 970M Pro3 Handbuch Seite 23

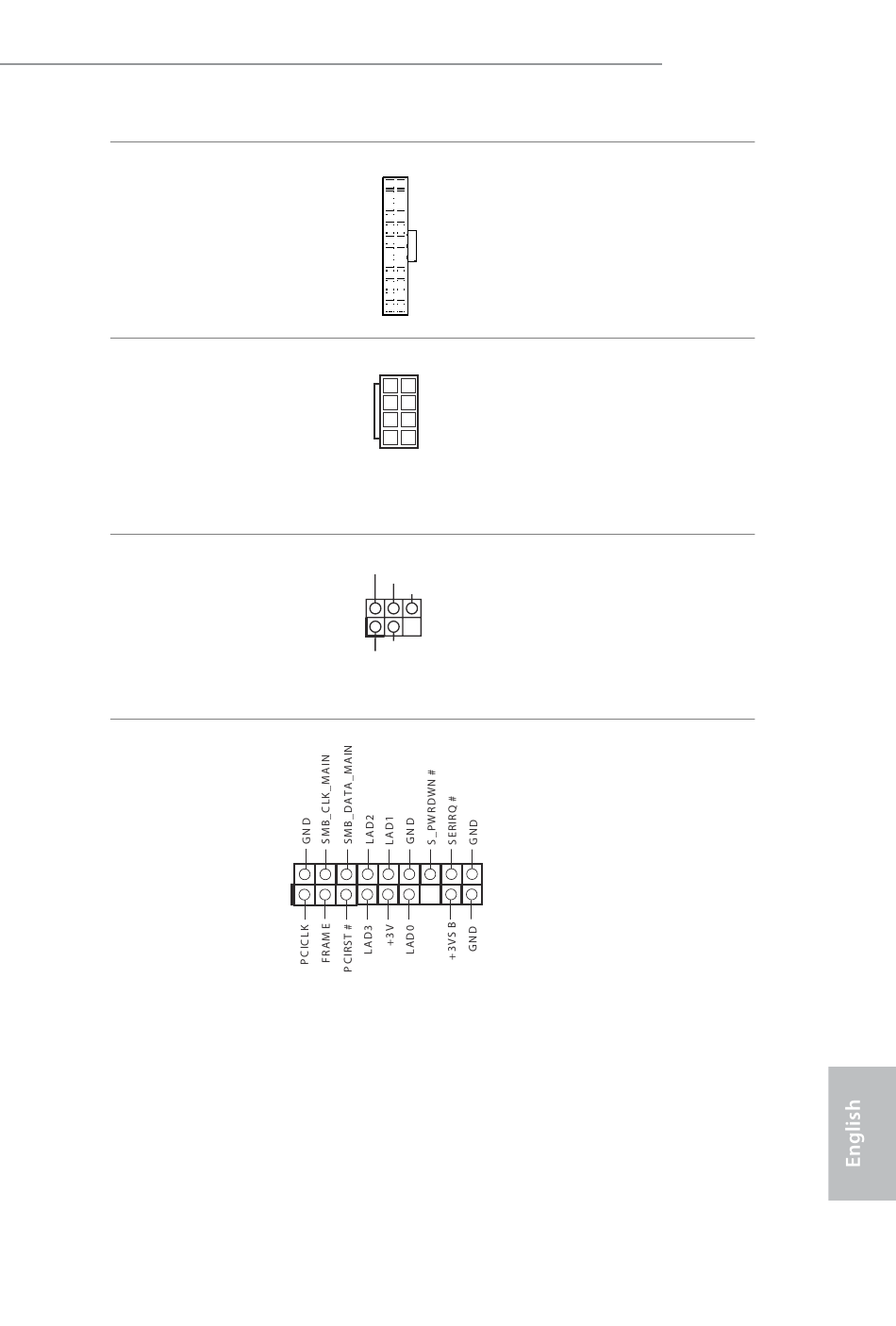

ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 5)
ATX 12V Power
Connector
(8-pin ATX12V2)
(see p.1, No. 1)
Infrared Module Header
(5-pin IR1)
(see p.1, No. 19)
TPM Header
(17-pin TPMS1)
(see p.1, No. 20)
1
his motherboard pro-
12 24
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
1 13
his motherboard pro-
5 1
vides an 8-pin ATX 12V
power connector. To use a
4-pin ATX power supply,
8 4
please plug it along Pin 1
and Pin 5.
his header supports an optional
IRTX
+5VSB
DUMMY
wireless transmitting and
receiving infrared module.
1
GND
IRRX
his connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certiicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
