- Do not turn off the switch located upstream of the shower
enclosure until the final washing cycle for the steam genera-
tor has stopped.
- During the Turkish bath, it is possible to use the manual hydraulic
functions (shower, showerhead and/or spray jets); the audio system
and the Cromodream® function can also be activated (the alarm is
always available).

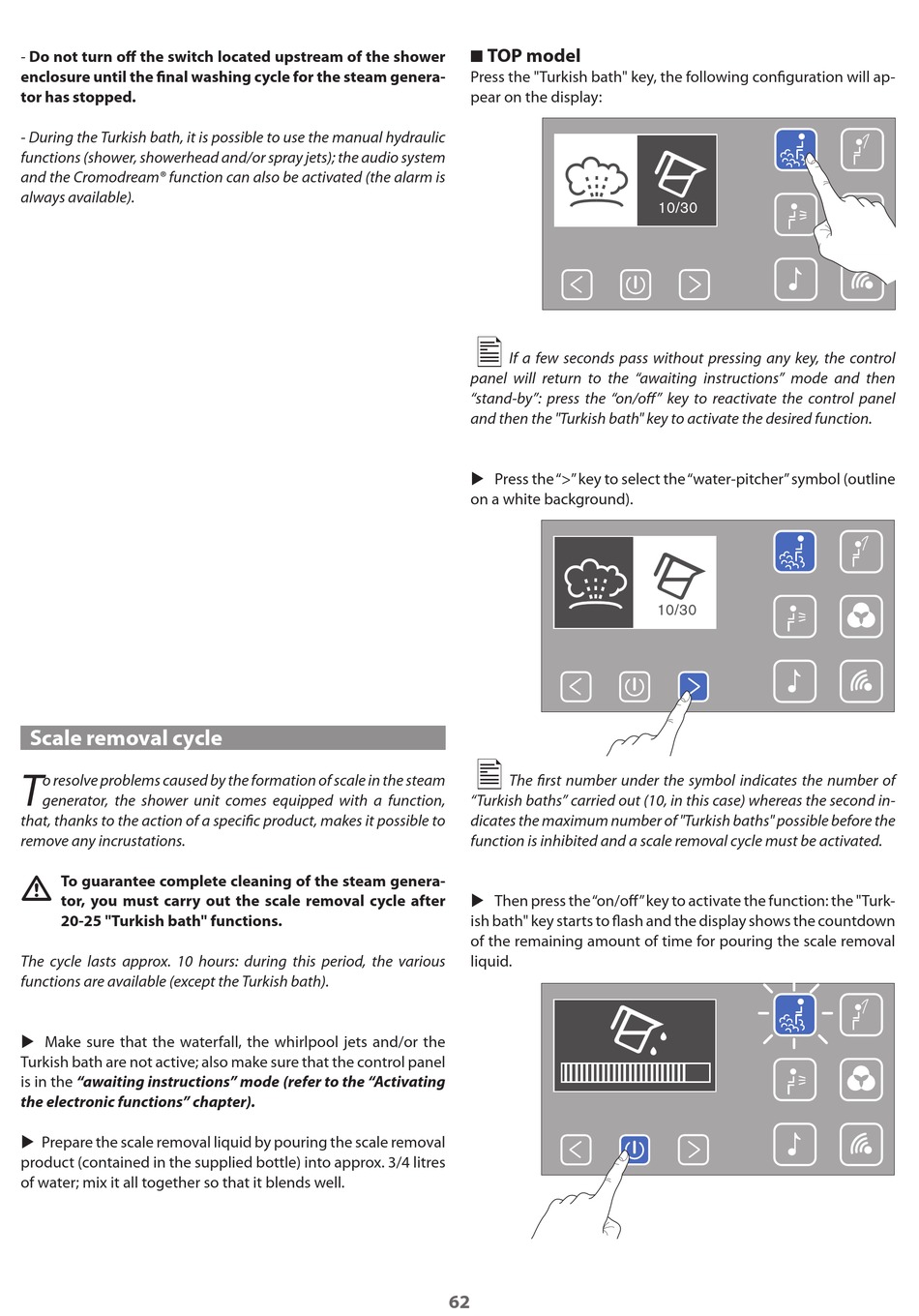

Scale removal cycle

T
o resolve problems caused by the formation of scale in the steam
generator, the shower unit comes equipped with a function,
that, thanks to the action of a specific product, makes it possible to
remove any incrustations.
To guarantee complete cleaning of the steam genera-
tor, you must carry out the scale removal cycle after
20-25 "Turkish bath" functions.
The cycle lasts approx. 10 hours: during this period, the various
functions are available (except the Turkish bath).
u Make sure that the waterfall, the whirlpool jets and/or the
Turkish bath are not active; also make sure that the control panel
is in the "awaiting instructions" mode (refer to the "Activating
the electronic functions" chapter).
u Prepare the scale removal liquid by pouring the scale removal
product (contained in the supplied bottle) into approx. 3/4 litres
of water; mix it all together so that it blends well.
■ TOP model
Press the "Turkish bath" key, the following configuration will ap-
pear on the display:
ù
If a few seconds pass without pressing any key, the control
panel will return to the "awaiting instructions" mode and then
"stand-by": press the "on/off" key to reactivate the control panel
and then the "Turkish bath" key to activate the desired function.
u Press the ">" key to select the "water-pitcher" symbol (outline
on a white background).
ù
The first number under the symbol indicates the number of
"Turkish baths" carried out (10, in this case) whereas the second in-
dicates the maximum number of "Turkish baths" possible before the
function is inhibited and a scale removal cycle must be activated.
u Then press the "on/off" key to activate the function: the "Turk-
ish bath" key starts to flash and the display shows the countdown
of the remaining amount of time for pouring the scale removal
liquid.
