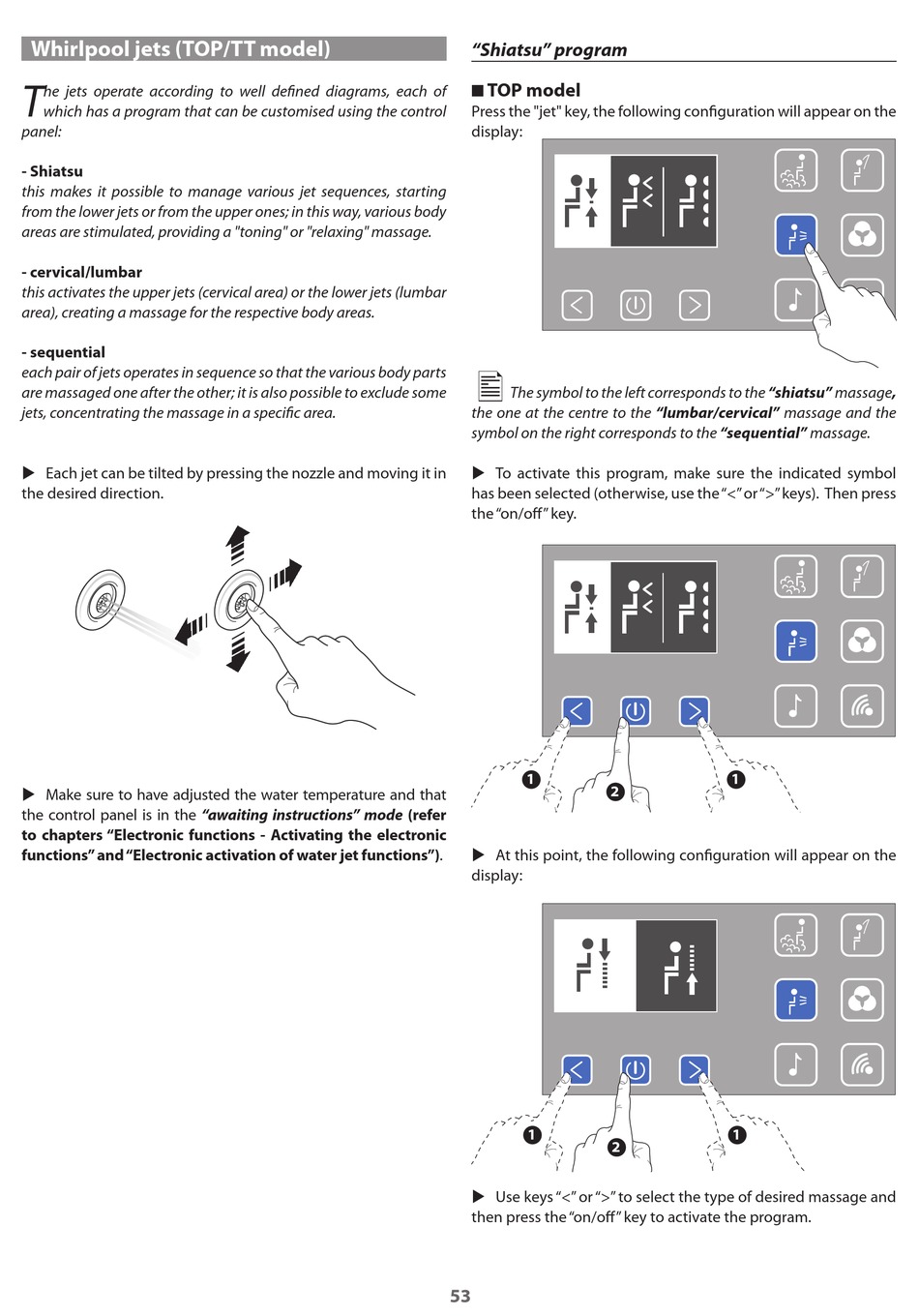

Whirlpool jets (TOP/TT model)
T
he jets operate according to well defined diagrams, each of
which has a program that can be customised using the control
panel:
- Shiatsu
this makes it possible to manage various jet sequences, starting
from the lower jets or from the upper ones; in this way, various body
areas are stimulated, providing a "toning" or "relaxing" massage.
- cervical/lumbar
this activates the upper jets (cervical area) or the lower jets (lumbar
area), creating a massage for the respective body areas.
- sequential
each pair of jets operates in sequence so that the various body parts
are massaged one after the other; it is also possible to exclude some
jets, concentrating the massage in a specific area.
u Each jet can be tilted by pressing the nozzle and moving it in
the desired direction.
u Make sure to have adjusted the water temperature and that
the control panel is in the "awaiting instructions" mode (refer
to chapters "Electronic functions - Activating the electronic
functions" and "Electronic activation of water jet functions").
"Shiatsu" program
TOP model
■
Press the "jet" key, the following configuration will appear on the
display:
ù
The symbol to the left corresponds to the "shiatsu" massage,
the one at the centre to the "lumbar/cervical" massage and the
symbol on the right corresponds to the "sequential" massage.
u To activate this program, make sure the indicated symbol
has been selected (otherwise, use the "<" or ">" keys). Then press
the "on/off" key.
1
2
u At this point, the following configuration will appear on the
display:
1
2
u Use keys "<" or ">" to select the type of desired massage and
then press the "on/off" key to activate the program.
