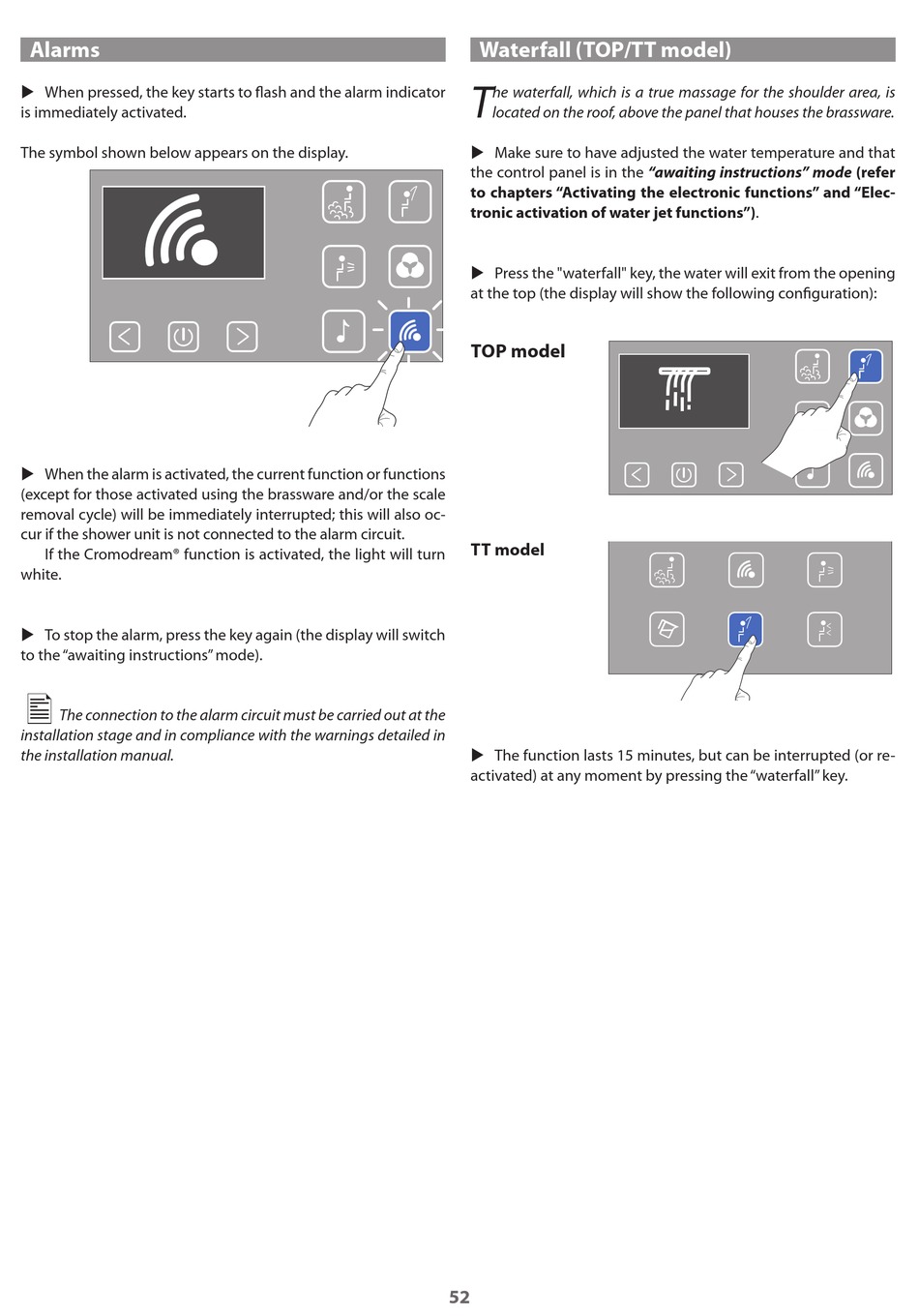

Jacuzzi frame 100 Bedienung Und Wartung Seite 52

Alarms
u When pressed, the key starts to flash and the alarm indicator
is immediately activated.
The symbol shown below appears on the display.
u When the alarm is activated, the current function or functions
(except for those activated using the brassware and/or the scale
removal cycle) will be immediately interrupted; this will also oc-
cur if the shower unit is not connected to the alarm circuit.
If the Cromodream® function is activated, the light will turn
white.
u To stop the alarm, press the key again (the display will switch
to the "awaiting instructions" mode).
ù
The connection to the alarm circuit must be carried out at the
installation stage and in compliance with the warnings detailed in
the installation manual.
Waterfall (TOP/TT model)
T
he waterfall, which is a true massage for the shoulder area, is
located on the roof, above the panel that houses the brassware.
u Make sure to have adjusted the water temperature and that
the control panel is in the "awaiting instructions" mode (refer
to chapters "Activating the electronic functions" and "Elec-
tronic activation of water jet functions").
u Press the "waterfall" key, the water will exit from the opening
at the top (the display will show the following configuration):
TOP model
TT model
u The function lasts 15 minutes, but can be interrupted (or re-
activated) at any moment by pressing the "waterfall" key.
52
