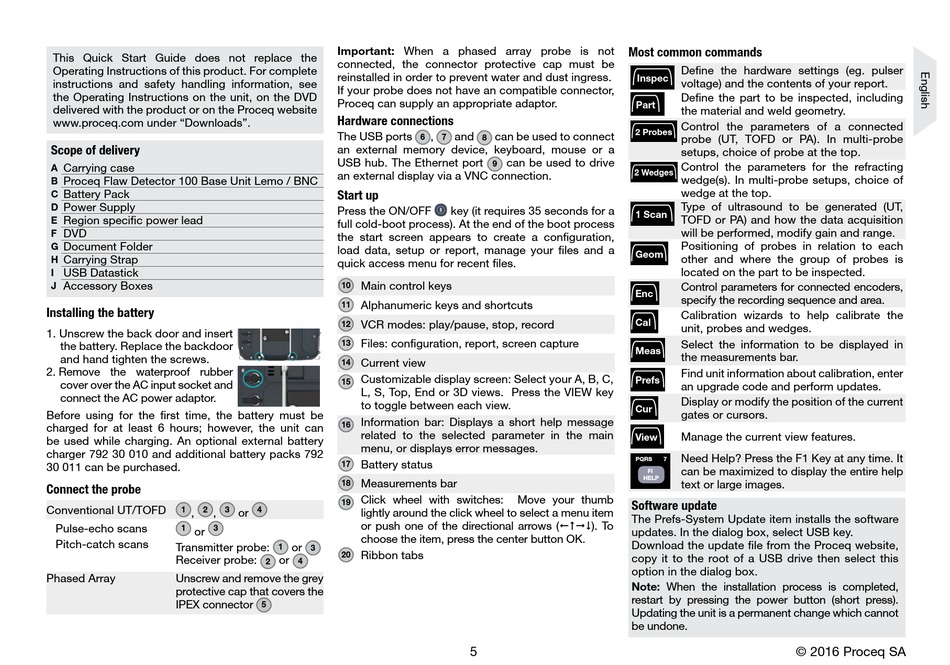

Proceq Flaw Detector 100 Kurzanleitung Seite 5

This Quick Start Guide does not replace the
Operating Instructions of this product. For complete
instructions and safety handling information, see
the Operating Instructions on the unit, on the DVD
delivered with the product or on the Proceq website
www.proceq.com under "Downloads".
Scope of delivery
Carrying case
A
Proceq Flaw Detector 100 Base Unit Lemo / BNC
B
Battery Pack
C
Power Supply
D
Region specific power lead
E
DVD
F
Document Folder
G
Carrying Strap
H
USB Datastick
I
Accessory Boxes
J
Installing the battery
1. Unscrew the back door and insert
the battery. Replace the backdoor
and hand tighten the screws.
2. Remove the waterproof rubber
cover over the AC input socket and
connect the AC power adaptor.
Before using for the first time, the battery must be
charged for at least 6 hours; however, the unit can
be used while charging. An optional external battery
charger 792 30 010 and additional battery packs 792
30 011 can be purchased.
Connect the probe
Conventional UT/TOFD
1 2 3
, ,
Pulse-echo scans
1 3
or
Pitch-catch scans
Transmitter probe:
Receiver probe:
Phased Array Unscrew and remove the grey
protective cap that covers the
I PEX connector
Important: When a phased array probe is not
connected, the connector protective cap must be
reinstalled in order to prevent water and dust ingress.
If your probe does not have an compatible connector,
Proceq can supply an appropriate adaptor.
Hardware connections
The USB ports
an external memory device, keyboard, mouse or a
USB hub. The Ethernet port
an external display via a VNC connection.
Start up
Press the ON/OFF
full cold-boot process). At the end of the boot process
the start screen appears to create a configuration,
load data, setup or report, manage your files and a
quick access menu for recent files.
Main control keys
10
Alphanumeric keys and shortcuts
11
VCR modes: play/pause, stop, record
12
Files: configuration, report, screen capture
13
Current view
14
Customizable display screen: Select your A, B, C,
15
L, S, Top, End or 3D views. Press the VIEW key
to toggle between each view.
Information bar: Displays a short help message
16
related to the selected parameter in the main
menu, or displays error messages.
Battery status
17
Measurements bar
18
Click wheel with switches:
19
4
or lightly around the click wheel to select a menu item
or push one of the directional arrows (). To
choose the item, press the center button OK.
or
1
3
Ribbon tabs
20
or
2 4
5
, and can be used to connect
6 7
8
can be used to drive
9
key (it requires 35 seconds for a
Move your thumb
5
Most common commands
Define the hardware settings (eg. pulser
Inspec
voltage) and the contents of your report.
Define the part to be inspected, including
Part
the material and weld geometry.
Control the parameters of a connected
2 Probes
probe (UT, TOFD or PA). In multi-probe
setups, choice of probe at the top.
Control the parameters for the refracting
2 Wedges
wedge(s). In multi-probe setups, choice of
wedge at the top.
Type of ultrasound to be generated (UT,
1 Scan
TOFD or PA) and how the data acquisition
will be performed, modify gain and range.
Positioning of probes in relation to each
Geom
other and where the group of probes is
located on the part to be inspected.
Control parameters for connected encoders,
Enc
specify the recording sequence and area.
Calibration wizards to help calibrate the
Cal
unit, probes and wedges.
Select the information to be displayed in
Meas
the measurements bar.
Find unit information about calibration, enter
Prefs
an upgrade code and perform updates.
Display or modify the position of the current
Cur
gates or cursors.
Manage the current view features.
View
Need Help? Press the F1 Key at any time. It
7
PQRS
can be maximized to display the entire help
FI
HELP
text or large images.
Software update
The Prefs-System Update item installs the software
updates. In the dialog box, select USB key.
Download the update file from the Proceq website,
copy it to the root of a USB drive then select this
option in the dialog box.
Note: When the installation process is completed,
restart by pressing the power button (short press).
Updating the unit is a permanent change which cannot
be undone.
