Installation Procedures

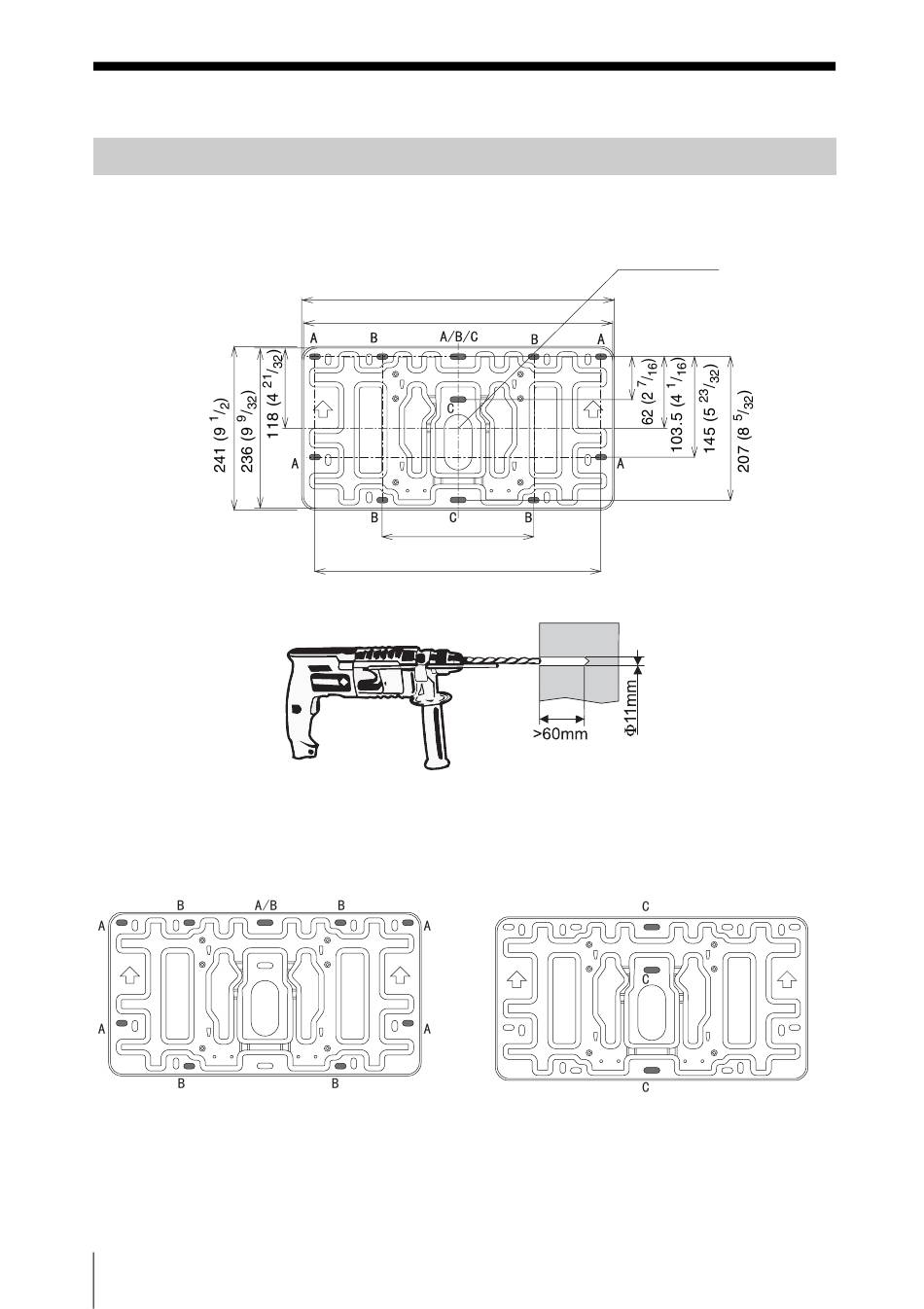

To set the projector wall mount on the wall
1
Install the wall plate on the wall.
Use M6 × 55 self-tapping screws and dia.11 × 50 anchor bolts for the installation.
If installing the wall plate on the wall using securing 5 positions, drill the holes indicated
by A or B using Φ11 mm. If installing the wall plate on the wall by securing 3 positions,
drill the holes indicated by C using Φ11 mm. After drilling the holes, insert a 11 × 50
anchor bolt into each hole and secure the wall plate with M6 × 55 self-tapping screws.
Make sure the arrows on the wall plate point upward, and it is kept level.
Securing 5 positions
8
GB
Installation Procedures
29
455 (17 / )
32
23
450 (17 / )
32
19
218 (8 / )
32
1
412.4 (16 / )
4
Securing 3 positions
Center of
Wall plate
