X-147
Quick Guide
Installation
1. Attach the full assembly, or parts of it, to the wall
either with a DIN rail or by using wall screws and
plugs.
2. Connect the actuators.
3. Connect a thermostat communication cable to
the controller, slave module, and/or the optional
star module. Note: Daisy chain bus topology is
recommended. See page 10, Communications
protocol for more information.
4. Connect a thermostat communication cable to the
thermostat/timer.
5. Connect a system bus communication cable in
between controllers and route one cable to the
interface. Note: Daisy chain bus topology is
recommended. See page 10, Communications
protocol for more information.
6. Connect a system bus communication cable (7.1)
and a power cable (7.2) to the interface.
7. Check that all wiring is complete and correct:
•
Actuators
•
Heating/cooling switch
•
Circulation pump
8. Ensure that the 230 V AC compartment of the
controller is closed and the fi xing screw is tightened.
U P O N O R S M AT R I X B A S E P R O · Q U I C K G U I D E
QUICK GUIDE
T-148
T-146
T-149
11.1
3 s
3 s
11.2
11.2
T-148
T-146
T-149
11.3
11.4
11.4
04

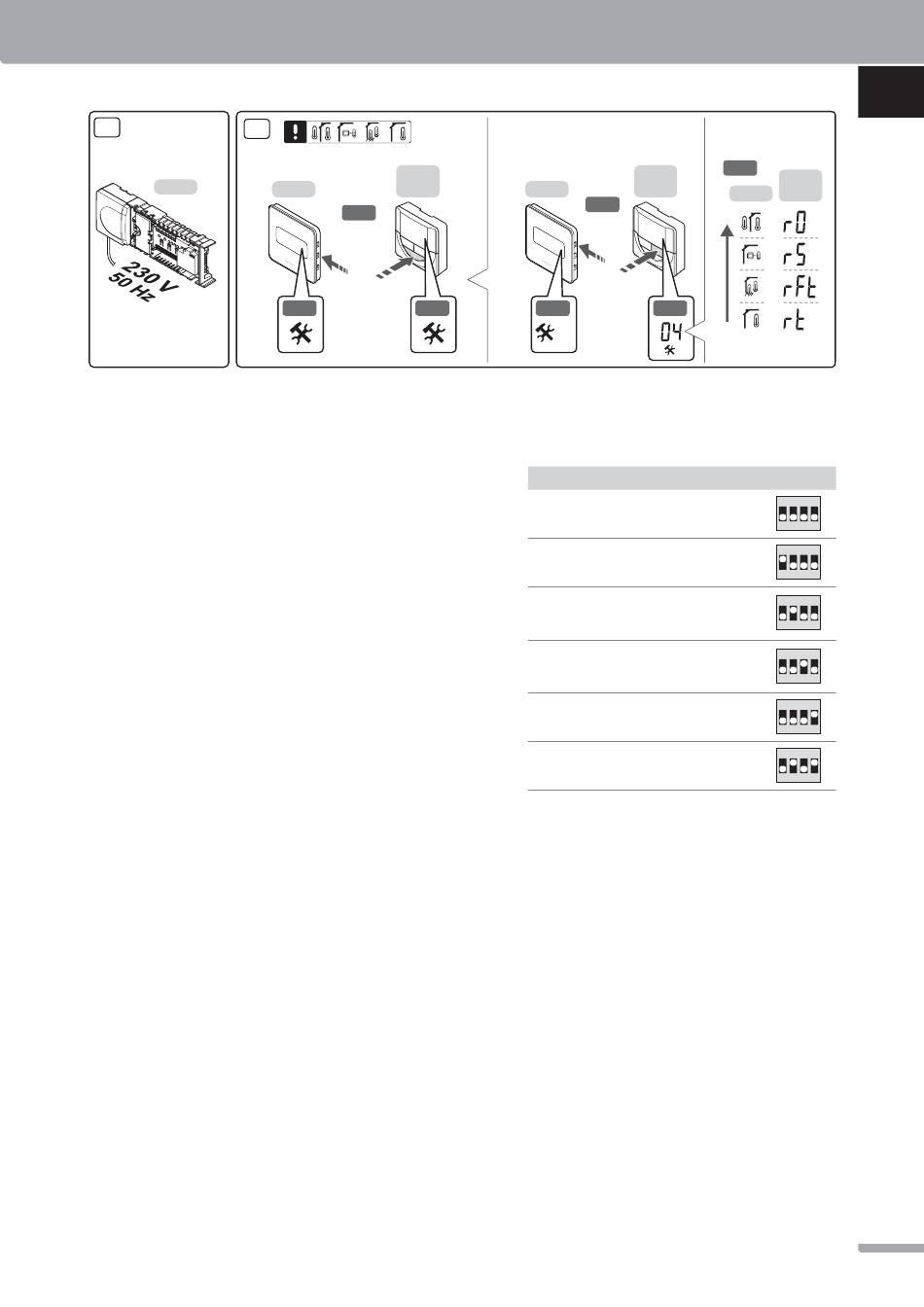

9. Connect optional external sensor (compatible
thermostats only) and set the DIP switch (public
thermostat T-143 only).
Function*
Standard room thermostat
Standard room thermostat together with a
fl oor temperature sensor
Standard room thermostat, or system device,
together with an outdoor temperature sensor
System device together with a supply
temperature sensor for heating/cooling
switch over function
System device where the sensor input is used
for Comfort/ECO switch over function **
Remote sensor
* The thermostat can only be registered as a system device to a
Base PRO system with multiple controllers, if it is registered to
the master controller.
** Closed = ECO
10. Connect the power cable to a 230 V AC wall socket,
or if required by local regulations, to a junction box.
11. Select thermostat control mode (settings menu 04,
in digital thermostats only). Default: RT (standard
room thermostat).
Register thermostats, the interface and other system
devices, in that order (next page).
UK
CZ
11.5
T-148
T-146
T-149
DE
DK
EE
ES
FI
FR
Switch
ON DIP
HR
1 2 3 4
ON DIP
HU
1 2 3 4
ON DIP
1 2 3 4
IT
ON DIP
1 2 3 4
LT
ON DIP
1 2 3 4
LV
ON DIP
1 2 3 4
NL
NO
PL
PT
RO
RU
SE
SI
SK
