System Map: Front View - MAXDATA M-BOOK 6000 G3 Ausführliches Benutzerhandbuch

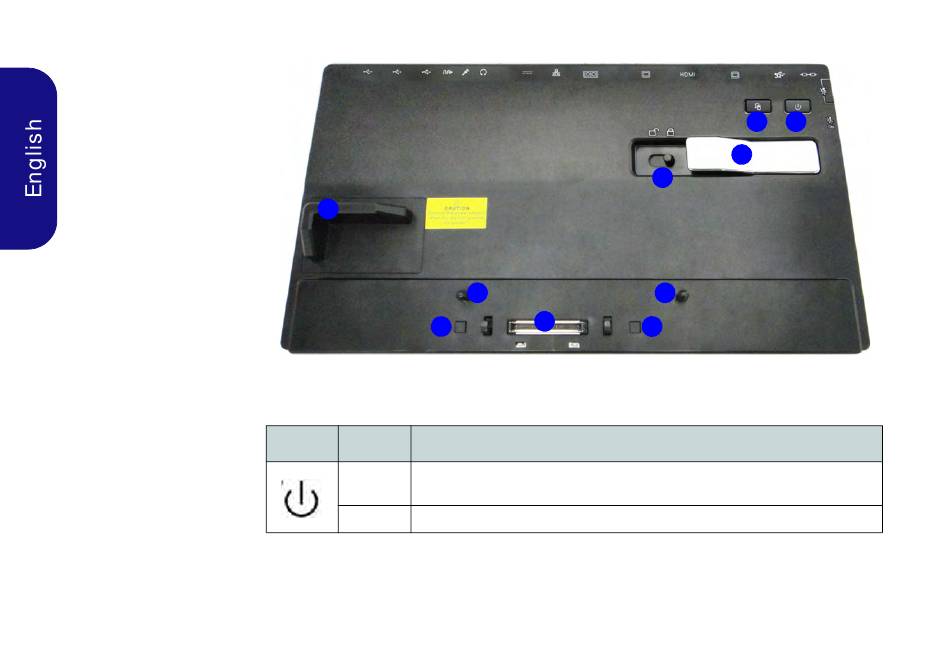

Figure 1
Front View
1. Power Button LED
2. Backup Button (if a Hard
Disk is installed in the
Device Bay)
3. Lock Switch
4. Notebook Eject Latch
5. Notebook Placeholder
6. Retaining Pins
7. Docking Port
8. Eject Pins
4

System Map: Front View

5
8
Power Button LED
Icon Color
The AC/DC adapter is Plugged In and the Computer is Off or in Hibernate
Orange
Green
*To confirm the computer's power status check the LED Power Indicators on the comput-
er itself.
6
7
8
Description
Mode*
The Docking Station is On or in Sleep Mode
Table 1 - Power Button LED
2 1
4
3
