System Map: Front View with LCD Panel Open

3
5
6
8
9
10

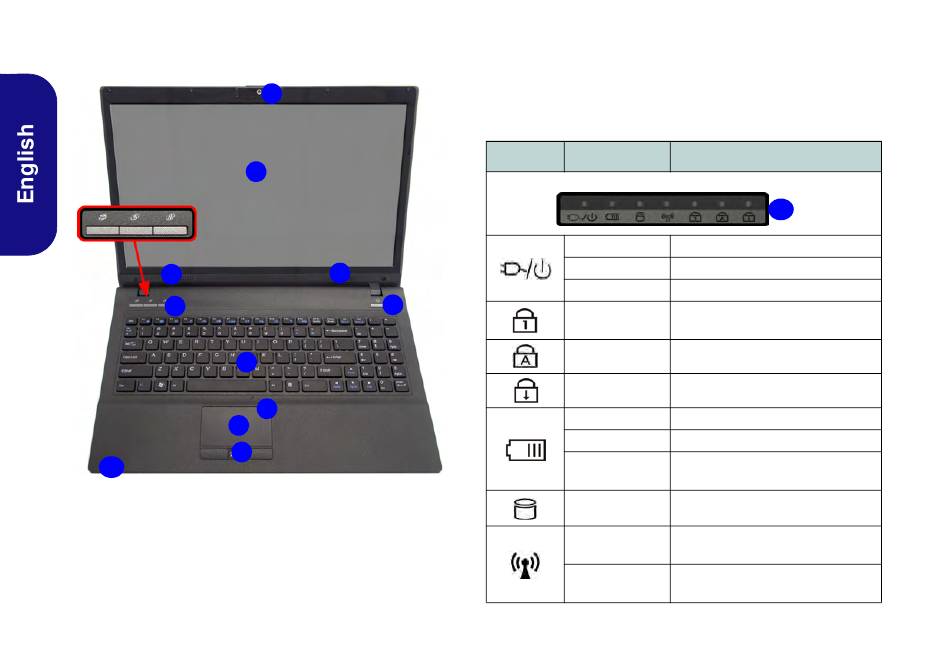

Figure 2 - Front View with LCD Panel Open
1. PC Camera
2. LCD
3. Speakers
4. Power Button
5. Hot-Key Buttons
4
1
2
3
4
7
6. Keyboard
7. Built-In Microphone
8. Touchpad & Buttons
9. Fingerprint Reader

10. LED Indicators

LED Indicators
The LED indicators on the computer display helpful infor-
mation about the current status of the computer.
Icon Color
Orange
Green
Blinking Green
Green
Green
Green
Orange
Green
Blinking
Orange
Green
Green
Orange
Table 2 - LED Indicators
Description
10
DC Power is Plugged In
The Computer is On
The Computer is in Sleep Mode
Number Lock (Numeric Keypad)
Activated
Caps Lock Activated
Scroll Lock Activated
The Battery is Charging
The Battery is Fully Charged
The Battery Has Reached Criti-
cally Low Power Status
Hard Disk Activity
The Wireless LAN Module is
Powered On
The Bluetooth Module is Powered
On
