4.3 Setting the Characteristic Curve
At least two points (2 pairs of values), for the starting and end
points respectively of the characteristic curve, are required.
The curve can be ascending or descending.
A maximum of 24 knee points can be implemented. However,
it must be ensured that with a rising curve all curve segments
must slope upwards and with a descending curve all seg-
ments must slope downwards.

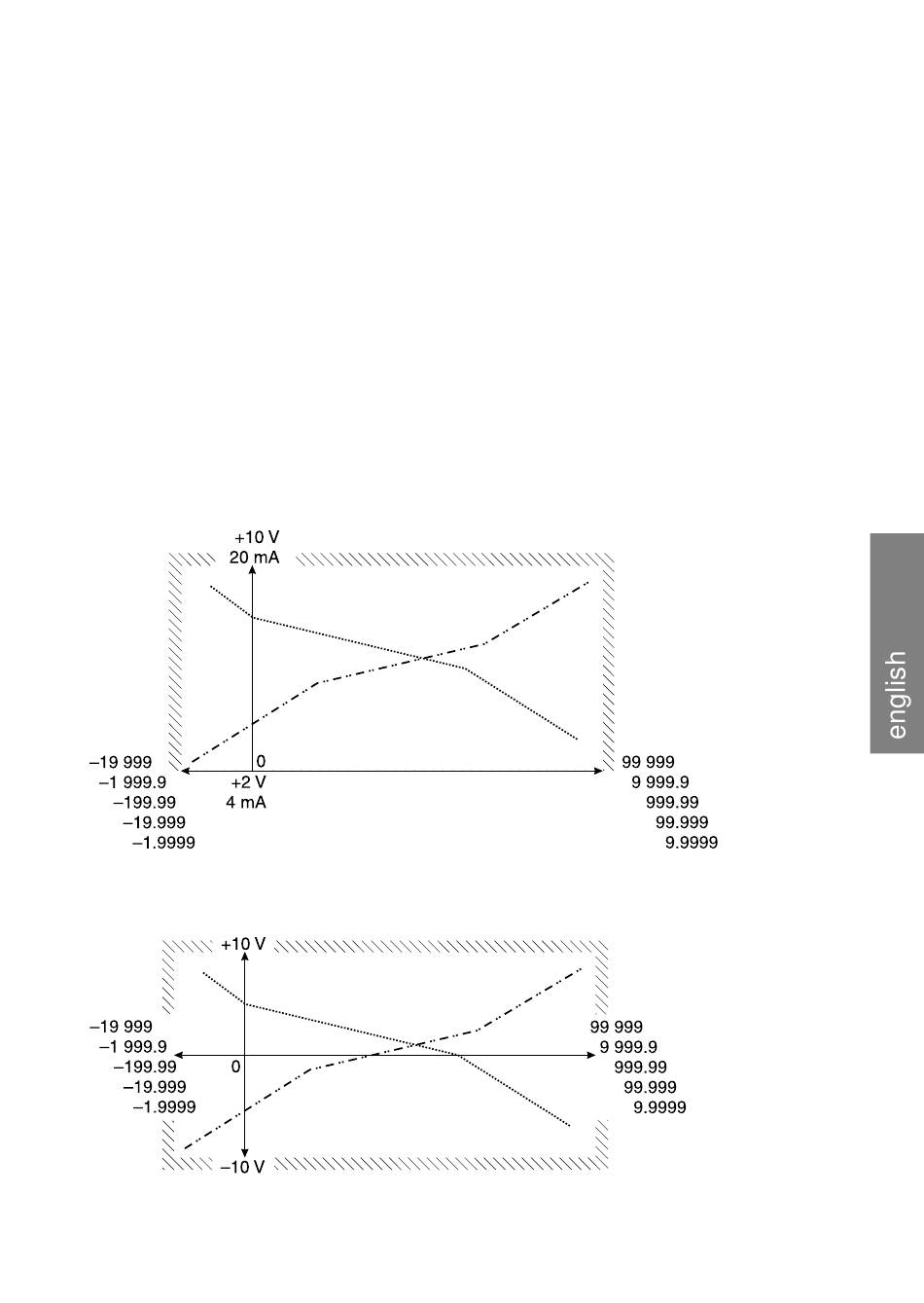

The characteristic curve must lie within the zone shown, i.e.
within the limits of the input and display ranges. The first and
last points can lie on the limits.
Input ranges 0 .. 10 V, 2 .. 10 V, 0 .. 20 mA, 4 .. 20 mA
Input range –10 .. +10 V
Display
range
Display
range
