7 Short commissioning

Start-up and Maintenance Tool
DriveWindow 2.xx
Windows TM -based, user-friendly
ABB's DriveWindow is an advanced, easy-to-
use tool for the commissioning and mainte-
nance of drive systems in different industries. Its
host of features and clear, graphical presenta-
tion of the operation make it a valuable addition
to your system providing information necessary
for troubleshooting, maintenance and service,
as wellas training.
DriveWindow is fully 32 bit and runs in the newer
®
Microsoft Windows environments such as WIN
NT / 2000 / XP.
With DriveWindow the user is able to follow the
co-operation of twoor more drives simultane-
ously by collecting the actual values from the
drives onto a single screen or printout.
Additionally, the client part of DriveWindow may
reside on one Local Area Network PC, and the
server side on another PC closer to the drives.
This enables plant-wide monitoring to be easily
accomplished with two PCs.
I 14
3ADW000179R0100_DCS600_QuickGuide_edisf_a
Features
• Easy-to-use tool for
commissioning and
maintenance.
• Several drives con-
nected and monitored
at the same time.
• Monitor, edit or save
signals and parame-
ters, clear graphical
presentation.
• High speed communi-
cation between PC and
drive
• Versatile back-up func-
tions.
Powerful and versatile
• DriveWindow can access all drives con-
nected to the high speed fiber optic network
see manuals:
- Configuration Instructions NDBU-85/95
(3ADW000100).
- NDBU-85/95 Branching Units
(3BFE64285513).
- DDCS Cabling and Branching
(3AFE63988235).

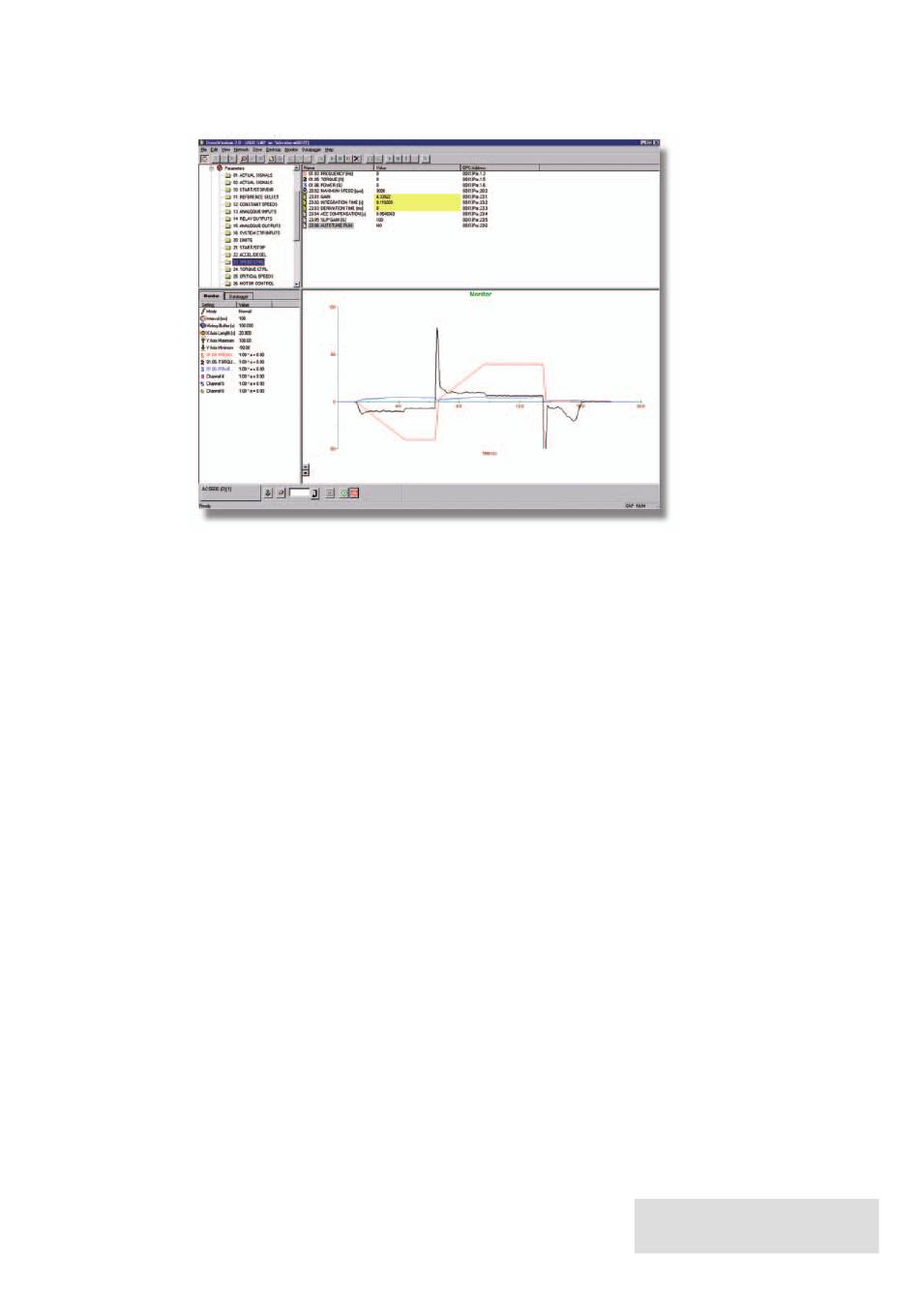

• Signal values can be viewed as graphs
from the drive/drives.
• A screenful of signals and parameters from
the drive can be monitored and edited at
one time (off-line or on-line).
• View data collected and stored in the drive.
• Fault diagnosis; DriveWindow indicates the
status of drives, and also reads fault history
data from the drive.
• Remote monitoring, plant wide monitoring
with two PCs.
• Back-up of drive parameters; in fault situa-
tions the file can be easily reloaded, result-
ing in time savings.
• Back-up parameters or software from the
drive into PC files. This version allows the
entire control board content to be saved
and restored later - even to empty control
boards.
DriveWindow is part of the Drive
Industrial IT .
taken from/for further information:
System description
3ADW000072
IT folder of the
