These instructions deal with the
installation and assembly of boiler
and expansion tank. Read these
instructions carefully before assemb-
ling the boiler.
These instructions are approved for The
Alde Compact 3010 boiler fitted in cara-
vans, motor caravans and buildings in
accordance with CE no. 0845 BP0003,
installation in vehicles e500 00005 and
EMC e5 03 0261.
Installation and repairs may only be car-
ried out by a professional. National regu-
lations must be adhered to.
teCHniCal data
measurements/Weight:
Boiler height: 310 mm
Boiler depth: 340 mm
Boiler width: 510 mm
Weight: 14 kg (without fluid)
gas: Propane
Output 1: 3,3 kW
Consumption: 245 g/h
Output 2: 5,5 kW
Consumption: 405 g/h
Pressure: I 28-30/37 mbar
3+
I 30 mbar
3B/P
Volume/Pressure/temp.
Liquid volume radiator water: 3,5 liter
Liquid volume warm water:
Max pressure radiator water: 0,05 MPa
Max pressure warm water:
System temperature:
230 V ~
Output element:
Output element (2 or 3 kW): 1 x 2100 W
12 V dC
Current consump.: 1 amp (max)
Fuse: 3.15 amp+/3.15 amp-
installation oF boiler
The boiler can appropriately be located
in a wardrobe or storage space, but can
also be located under the floor of the
vehicle. If located outside the vehicle,
the boiler should be built into an enclo-
sed space so that it is protected against
splashing of water, exhaust gases, etc.
In choosing the location, consideration
should also be given to dismantling the
service hatch (A 1) and that space will be
available for replacement of components
during service. The data plate on the
boiler shall be legible after installation.
The measurements given in Fig. A for
building in are recommended minimum
measurements with mounting of the
boiler.
The space where the boiler is to be
assembled must be ventilated, with a
ventilation area of at least 70 cm
The boiler shall be screwed down onto
the floor through the holes in the fixing
brackets (A 2).
NB ! The boiler must not be located in the
passenger area of a vehicle of type M2 or
14
M3 respectively.
Fig a.
1. Service panel
2. Holes for screwing down
mounting oF rooF Flue
The boiler may only be mounted with
the original flue. The flue must not be
blocked.
The roof flue should be mounted on a
level base, (however, a maximum of 30º
roof slope). Objects must not be mounted
on the roof within a radius of 200mm from
the flue.
Mark the centre of the location where the
flue is to be mounted, or drill a Ø 76mm
hole through the roof.
Mount the flue from the outside of the
roof. Seal between mounting washer (C
4) and roof (C 5) with sealing compound
for automobile body application, and
screw down the flue with 6 plate screws
(C 6).
Butane
mounting oF Wall Flue
3,8 kW
The boiler may only be mounted with
275 g/h
the original flue. The flue must not be
6,4 kW
blocked.
460 g/h
The wall flue should be mounted on as
flat a surface as possible, and also so
that air can freely circulate past the flue.
The flue should not be mounted closer
than 300mm sideways on from an ope-
ning window or ventilation inlet.
8,4 liter
A flue must not be mounted under a
window that can be opened, or a ventila-
(0,5 bar)
tion inlet, see drawing.
0,3 MPa
If the flue is mounted closer than the
(3,0 bar)
measurements given above, a window
max 85°C.
circuit-breaker shall be installed that
1 x 1050 W
Prohibited zone
shuts off the LPG gas supply when the
window is open. To guarantee the fun-
ction of the boiler, no object should be
fitted within a radius of 300 mm around
the chimney (no official claim).
note that current national regulations
must be followed.
The distance from the flue to ventilation
inlet under the vehicle must be at least
300mm (not a legal requirement).
The distance from flue to refilling position
or ventilation for fuel shall be at least
500mm.
Mark the place where the flue is to
be located. Then drill a Ø 83mm hole
through the outer wall. First mount the
gasket (B 7) and then screw down the
flue (B 8) with the 6 plate screws (B 9).
If the surface is structured, of ball-ham-
mered plate type, sealing compound for
automobile application must be used with
the gasket. Note that the flue shall be
2 .
mounted with the bend upwards, (the
roof flue is also marked toP oben).
After that, mount the plastic cap (B 10a)
and the O ring (B 10b) with the accom-
panying two screws (B 11).
mounting oF inlet/
exHaust Hose
Hose length with roof flue: min. 2.0 and
max. 3.5m.
Hose length with wall flue: min. 0.5 and
max. 2.0 m.
Measure and cut the required length
of inlet hose (Ø 75mm). The exhaust
hose (Ø 50 mm) should be cut off so it
becomes approximately 50 mm longer
than the suction hose.
Applies to hose lengths over 1 m.

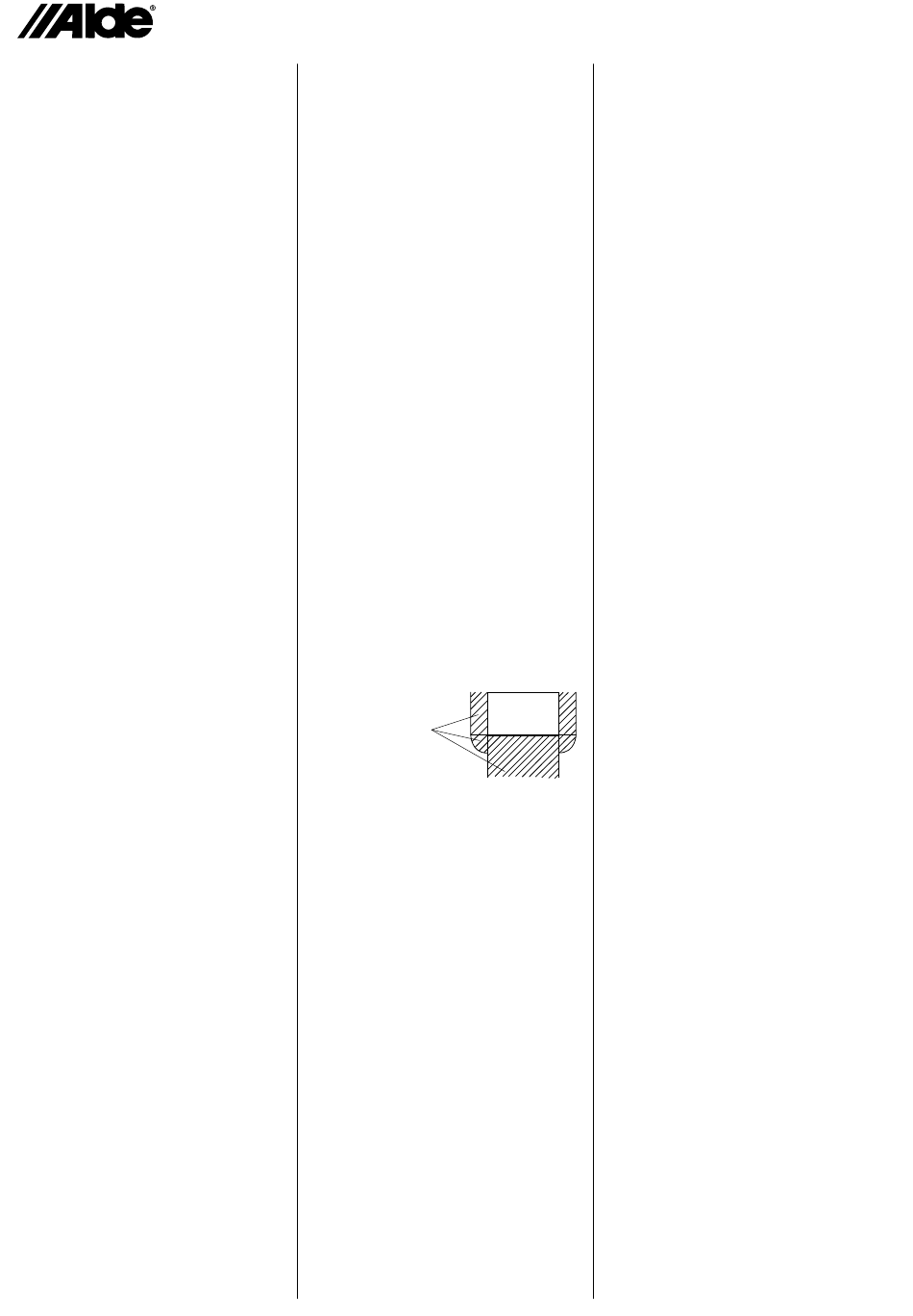

Note that the hoses will go on to the
hose sleeves 20mm.
Push the exhaust hose into the inlet
hose. First mount the exhaust hose
(B,C 12) on the flue and tighten it with a
hose clip ( B,C 13).
Then put on the inlet hose (B,C 14) and
tighten with the other hose clip (B,C
15). After that, mount the hoses in the
same way on the boiler. Staple the hose
(B 16) on c/c 600mm or equivalent.
nb! Check the lay to ensure that water
cannot be retained in the inlet/exhaust
hose.
