User and installation manual RA 18

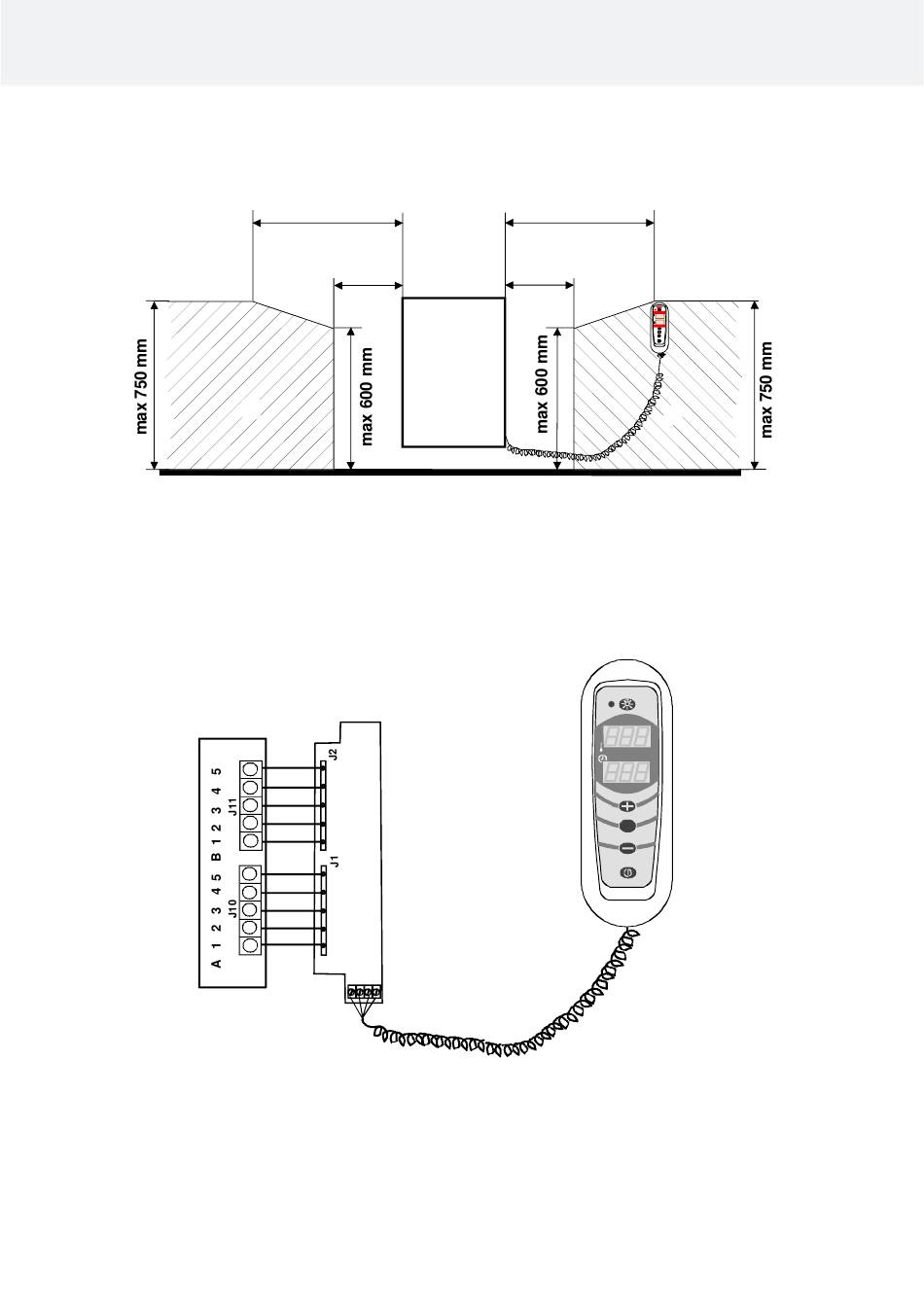

Placement of the control panel with different heater types:
1.
The control unit must be installed on the dashed area (1.) min and max measurements must be followed!
Heater PCB
OLEA 57
Control panel connection to communiacation PCB
min 600 mm
min 300 mm
Communication PCB
OLEA 83
1. Brown
2. White
3. Green
1 2 3 4
4. Yellow
min 600 mm
min 300 mm
OK
1.
Control panel: RA 18 (1601 – 18)
