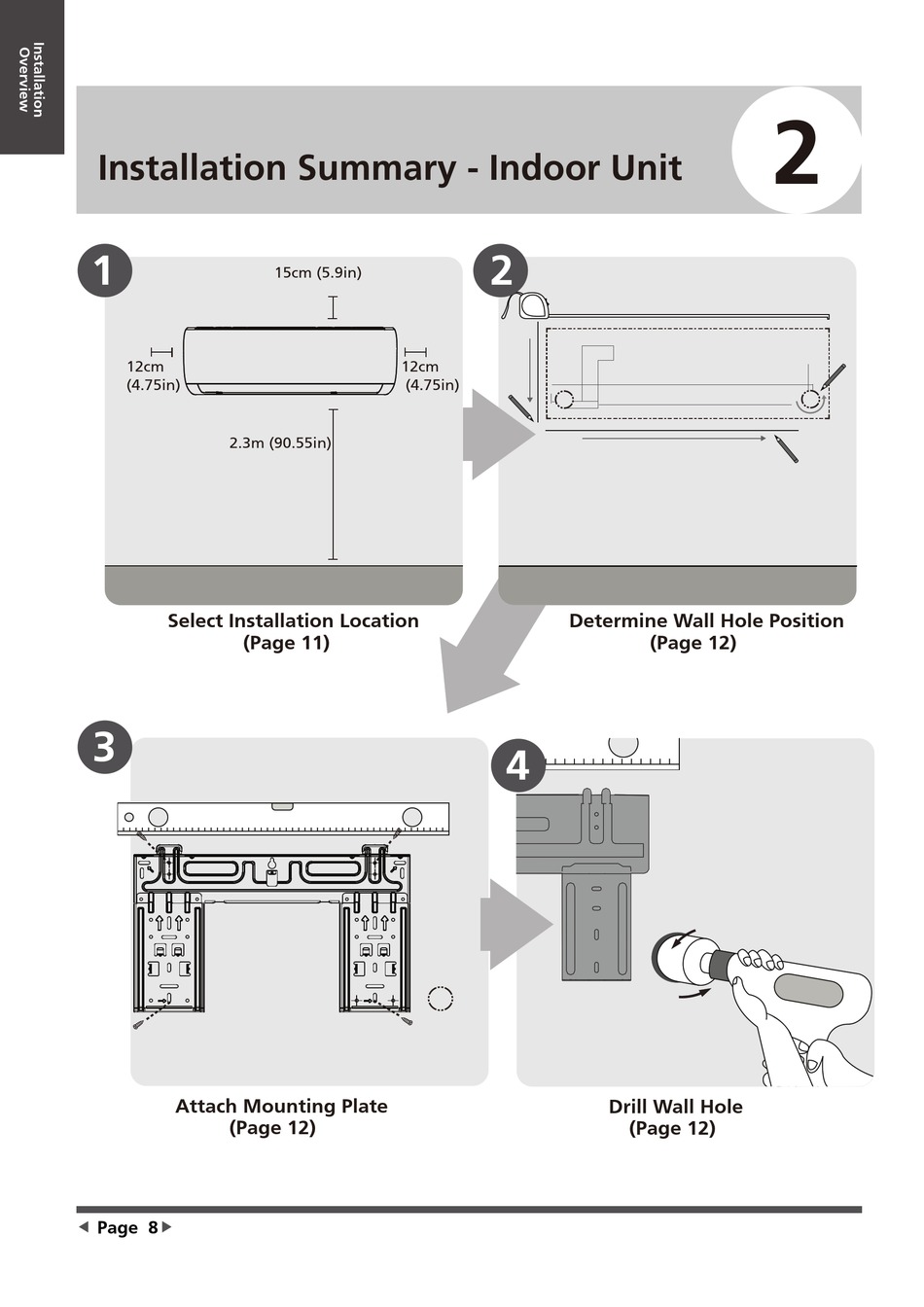

Installation Summary - Indoor Unit

1
12cm
(4.75in)
2.3m (90.55in)
Select Installation Location
(Page 11)
3
Attach Mounting Plate
(Page 12)
 Page 8 
15cm (5.9in)
12cm
(4.75in)
2
Determine Wall Hole Position
(Page 12)
4
Drill Wall Hole
(Page 12)
2
