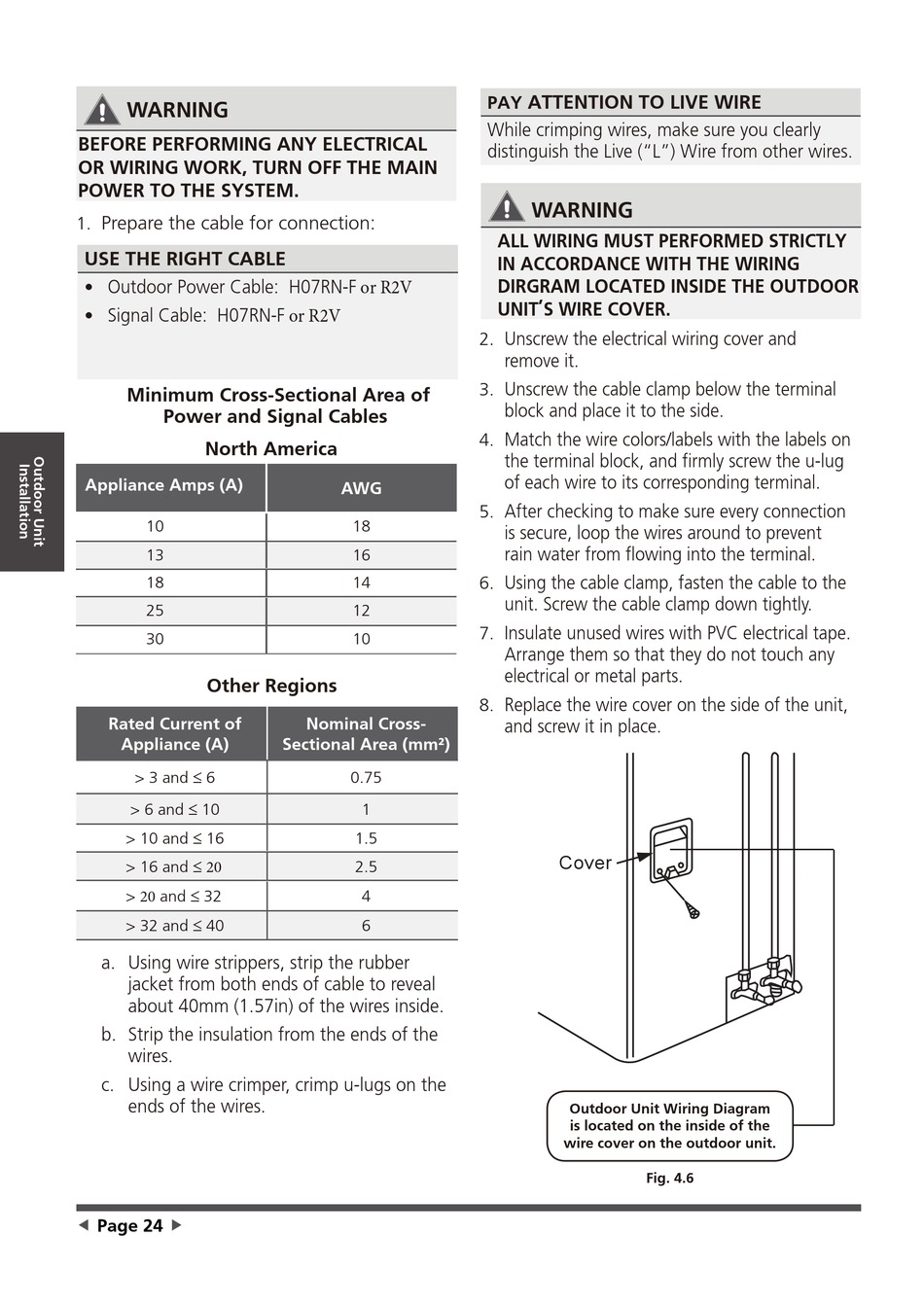

WARNING
BEFORE PERFORMING ANY ELECTRICAL
OR WIRING WORK, TURN OFF THE MAIN
POWER TO THE SYSTEM.
Prepare the cable for connection:
1.
USE THE RIGHT CABLE
Outdoor Power Cable: H07RN-F or R2V
•
Signal Cable: H07RN-F or R2V
•
Minimum Cross-Sectional Area of
Power and Signal Cables
North America
Appliance Amps (A)
10
13
18
25
30
Other Regions
Rated Current of
Appliance (A)
> 3 and ≤ 6
> 6 and ≤ 10
> 10 and ≤ 16
> 16 and ≤ 20
> 20 and ≤ 32
> 32 and ≤ 40
a. Using wire strippers, strip the rubber
jacket from both ends of cable to reveal
about 40mm (1.57in) of the wires inside.
b. Strip the insulation from the ends of the
wires.
c. Using a wire crimper, crimp u-lugs on the
ends of the wires.
Page 24
AWG
18
16
14
12
10
Nominal Cross-
Sectional Area (mm²)
0.75
1
1.5
2.5
4
6
ATTENTION TO LIVE WIRE
PAY
While crimping wires, make sure you clearly
distinguish the Live ("L") Wire from other wires.
WARNING
ALL WIRING MUST PERFORMED STRICTLY
IN ACCORDANCE WITH THE WIRING
DIRGRAM LOCATED INSIDE THE OUTDOOR
'
UNIT S WIRE COVER.
Unscrew the electrical wiring cover and
2.
remove it.
Unscrew the cable clamp below the terminal
3.
block and place it to the side.
Match the wire colors/labels with the labels on
4.
the terminal block, and firmly screw the u-lug
of each wire to its corresponding terminal.
After checking to make sure every connection
5.
is secure, loop the wires around to prevent
rain water from flowing into the terminal.
Using the cable clamp, fasten the cable to the
6.
unit. Screw the cable clamp down tightly.
Insulate unused wires with PVC electrical tape.
7.
Arrange them so that they do not touch any
electrical or metal parts.
Replace the wire cover on the side of the unit,
8.
and screw it in place.
Cover
Outdoor Unit Wiring Diagram
is located on the inside of the
wire cover on the outdoor unit.
Fig. 4.6
