Wall
Indoor
Fig.3.2
Fig. 3.2

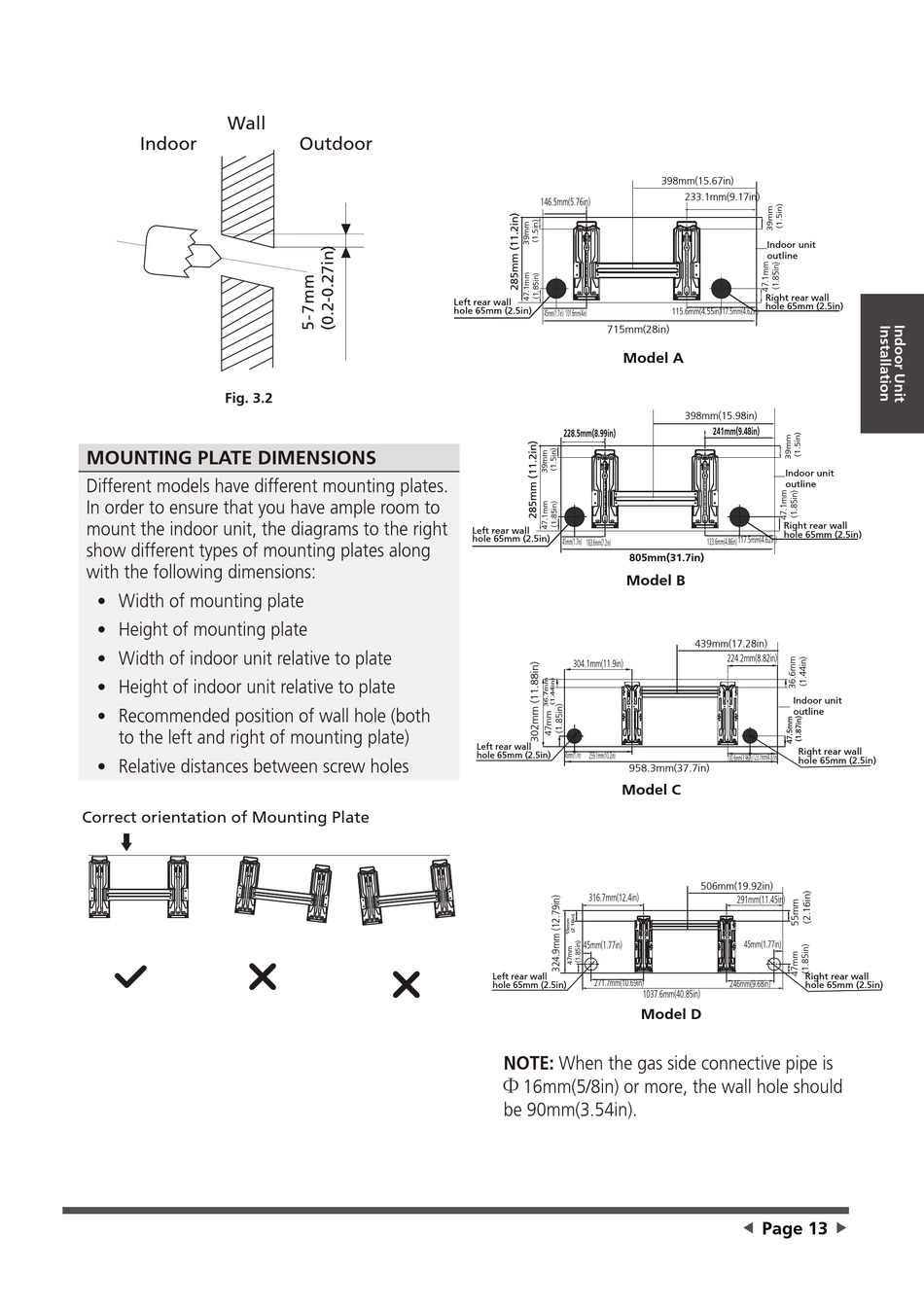

MOUNTING PLATE DIMENSIONS
Different models have different mounting plates.
In order to ensure that you have ample room to
mount the indoor unit, the diagrams to the right
show different types of mounting plates along
with the following dimensions:
Width of mounting plate
•
Height of mounting plate
•
Width of indoor unit relative to plate
•
Height of indoor unit relative to plate
•
Recommended position of wall hole (both
•
to the left and right of mounting plate)
Relative distances between screw holes
•
Correct orientation of Mounting Plate
Outdoor
Left rear wall
hole 65mm (2.5in)
Left rear wall
hole 65mm (2.5in)
146.5mm(5.76in)
45mm(1.7i n ) 101.6mm(4i n )
715mm(28in)
Model A
228.5mm(8.99in)
45mm(1.7i n )
183.6mm(7.2i n )
805mm(31.7in)
Model B
304.1mm(11.9in)
Left rear wall
hole 65mm (2.5in)
45mm( 1 . 7 i n ) 259.1mm(10.2i n )
958.3mm(37.7in)
Model C
316.7mm(12.4in)
45mm(1.77in)
Left rear wall
271.7mm(10.69in)
hole 65mm (2.5in)
1037.6mm(40.85in)
Model D
NOTE: When the gas side connective pipe is
Φ
16mm(5/8in) or more, the wall hole should
be 90mm(3.54in).
398mm(15.67in)
233.1mm(9.17in)
Indoor unit
outline
Right rear wall
hole 65mm (2.5in)
115.6mm(4.55in)
117.5mm(4.62in)
398mm(15.98in)
241mm(9.48in)
Indoor unit
outline
Right rear wall
hole 65mm (2.5in)
117.5mm(4.62in)
123.6mm(4.86i n )
439mm(17.28in)
224.2mm(8.82in)
Indoor unit
outline
Right rear wall
100.6mm(3.96i n ) 123.7mm(4.87i n )
hole 65mm (2.5in)
506mm(19.92in)
291mm(11.45in)
45mm(1.77in)
Right rear wall
246mm(9.68in)
hole 65mm (2.5in)
Page 13
