17 Technical Information
TPS-Compact Outline

Inlet Screen Installation

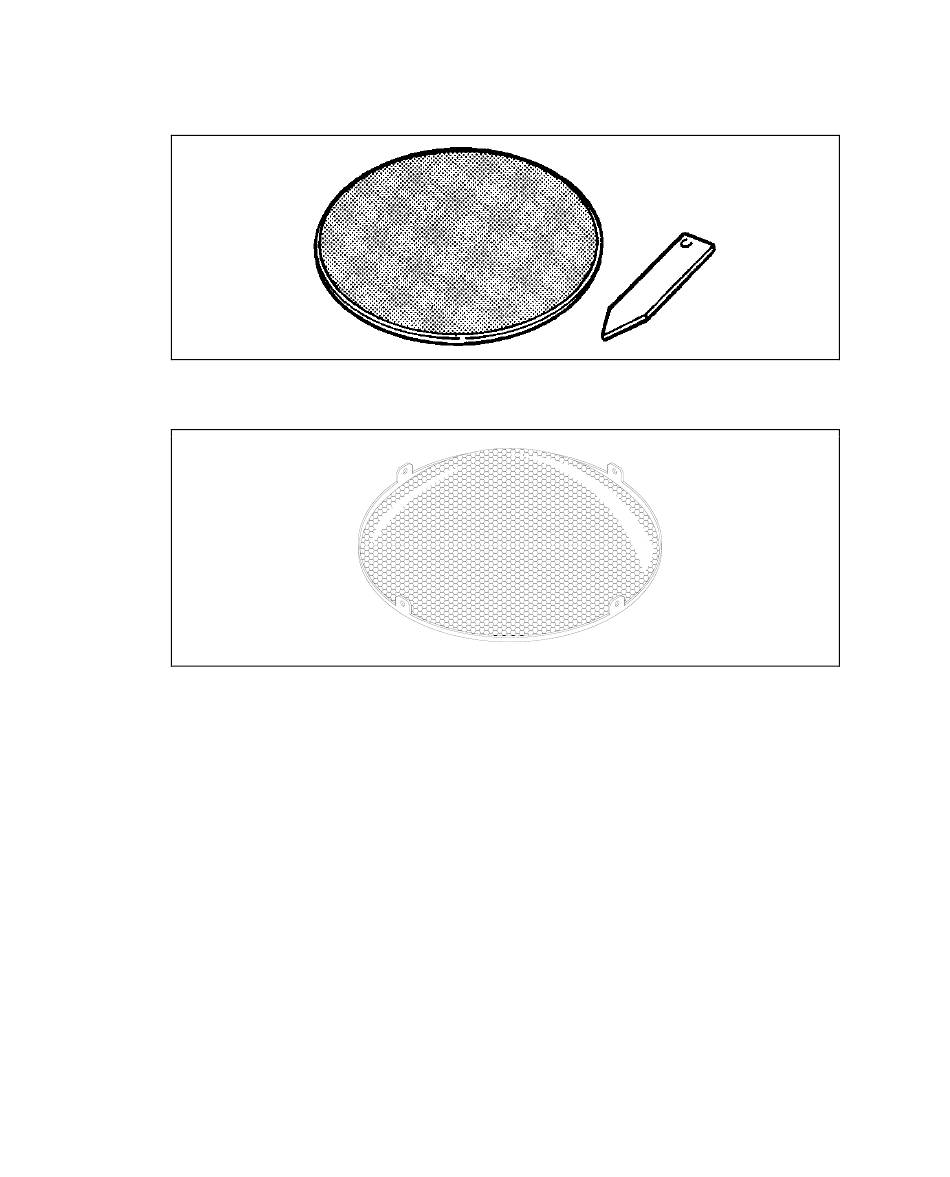

Figure 9
Figure 10
The inlet screens mod. 969-9300, 969-9309,
969-9302 and 969-9303 prevent the blades of the pump from being
damaged by debris greater than 0.7 mm diameter.
The inlet screen, however, does reduce the pumping speed by about
10 %.
The inlet screen is fitted in the upper part of the pump, as shown in
the figure.
216/262 TPS-compact User Manual / 87-901-010-01 (C)
