cable and the plug flat against the
mattress.
Place the mattress cover (C) over the
comfort layer and close the zipper
(see fig. 8) .

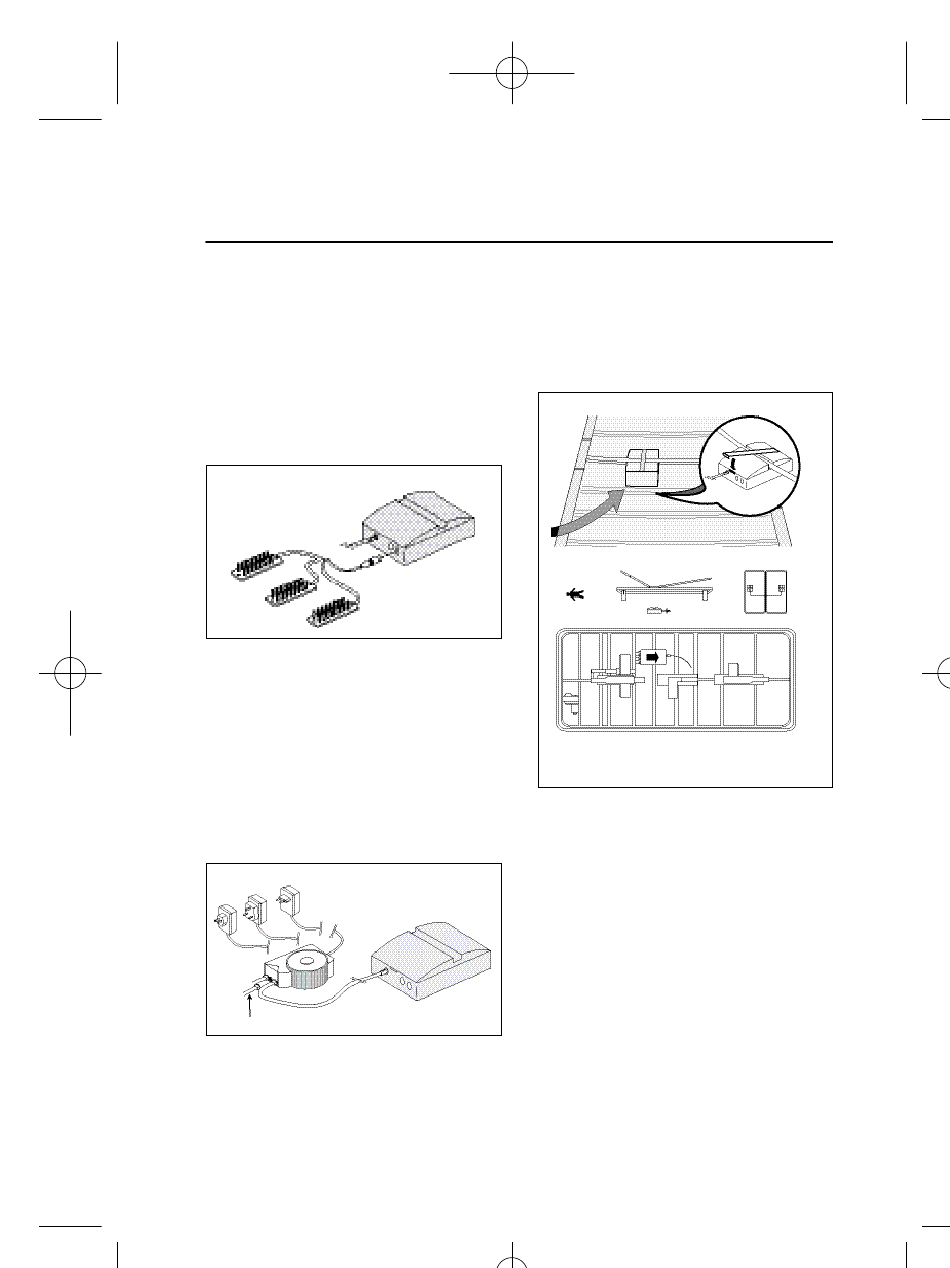

C. Connecting the mattress connectors
Connect the cables of the mattress
connectors
(see fig. 10) . Follow the connecting dia -
gram on the underside of the control
box.
D. Connecting the power supply
The control box of the Ultimate
Climate is connected to the main
GB18
fig. 10
to the control box
Euro, UK or USA plug
fig. 11
transformer of the Auping Royal mesh
base (see fig. 11).
E. Fixing the control box to the base
Use the bracket to fix the control box
to the base (see fig. 12).
Attention! The control box should be
fitted with the infrared eye facing the
foot end of the bed.
Ensure in case of a double bed that
the control boxes are always placed
on the outside. Do not position cables
in front of the infrared eye, as this
hinders proper reception by the
infrared remote control.
fig. 12
