1.6. Connecting the IP camera
(20-2907-IP/21-2907-IP/50-2907-IP/43-9587)

LAN connection

Usually, an RJ-45 connector is used to estab-
lish LAN connection (
with the series 20 IP (20-0001A-IP, 20-0002A-
IP, 20-0005-IP, 20-0013A-IP, 20-0014A-IP,
20-0016A-IP, 20-0041A-IP, 20-0043A-IP)
basic electronics, the network connection can
also be established via the series 20 IP basic
electronics. To do so, connect the camera
module's RJ-45 socket to "Port 2" socket of
the Series 20 basic electronics using a .patch
cable. The SIP door intercom needs to be
supplied via a PoE Class 0.
Input
IP basic electronics
www.behnke-online.com
). When operated
Output
LAN
Instructions Behnke IP camera

Power supply

Power for the Behnke IP camera is supplied
via the Ethernet port (PoE class 0). When
operated with the series 20 IP (20-0001A-
IP, 20-0002A-IP, 20-0005-IP, 20-0013A-IP,
20-0014A-IP, 20-0016A-IP, 20-0041A-IP,
20-0043A-IP) basic electronics, power for the
camera is supplied via PoE from the IP basic
electronics (please cf. "Connecting the LAN").
Please note: The corresponding norms and
regulations for network technology apply.

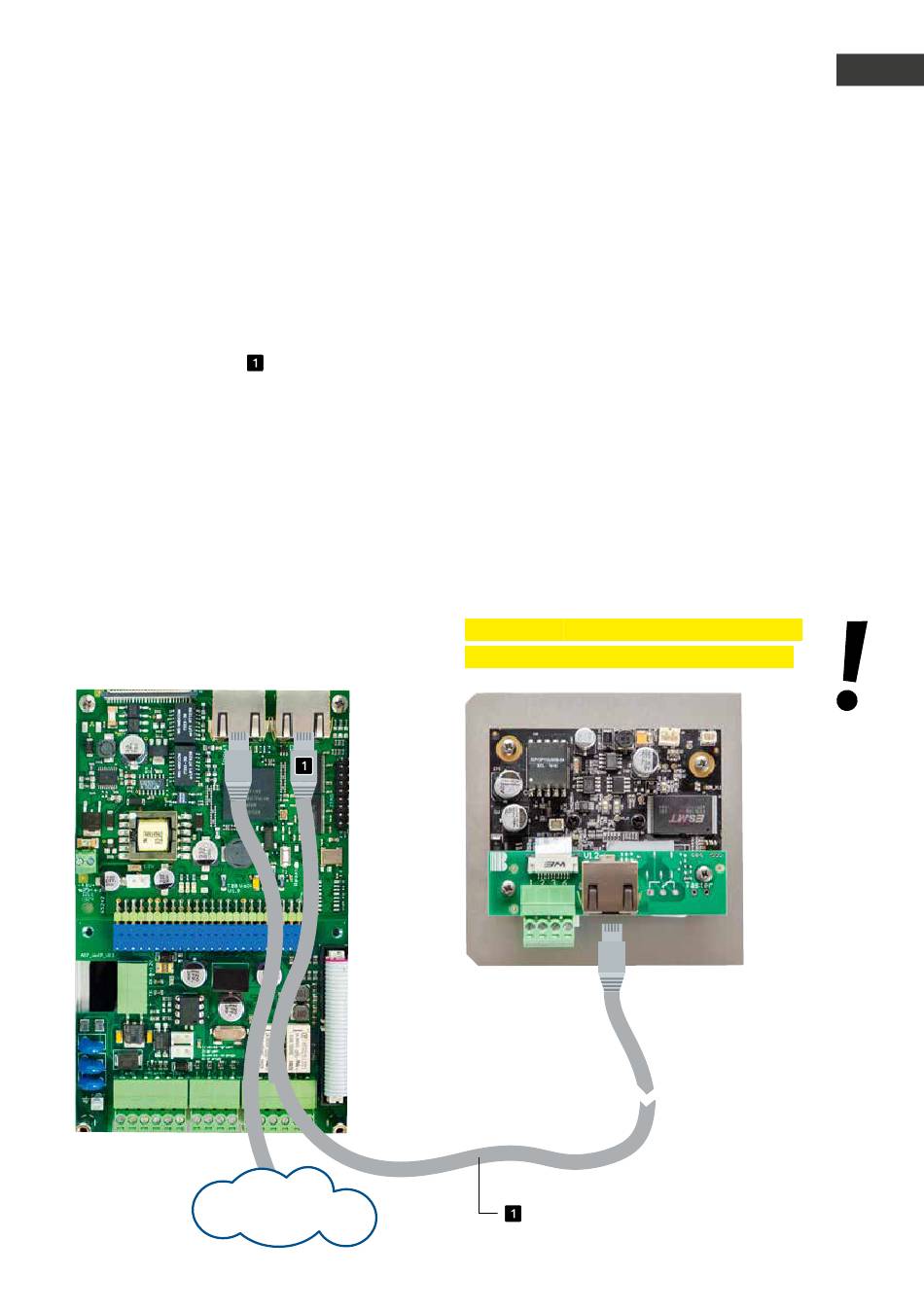

Network cable (including PoE to camera)
Introduction
Camera module,
rear view
