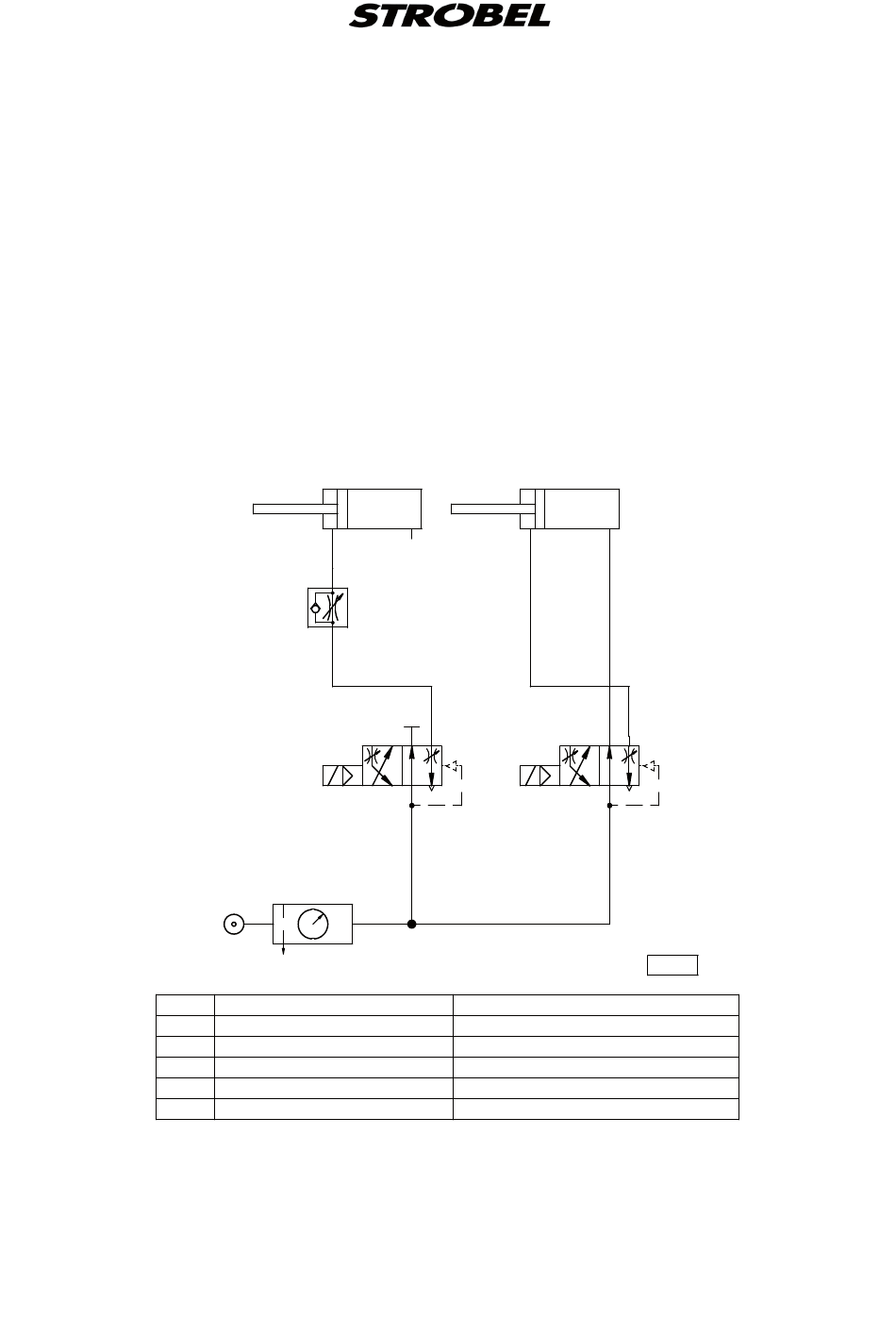

Pneumatischer Schaltplan Kl. VEB100-3 mit Nahtsicherung
Pneumatic circuit diagram cl. VEB100-3 with seam lock
10bar max
0 Z 1
Wartungseinheit
1 V 1
4/2-Magnetventil "Lüftung"
1 V 2
4/2-Magnetventil "Zwischenlüftung"
1 V 10
Drosselrückschlagventil "Lüftung"
1 A 1
Zylinder "Lüftung"
1 A 2
Zylinder "Zwischenlüftung"
259.00.66
(Efka-DC1200)
(Efka-DC1200)
1A1
1V10
1V1
B
A
P
R
0 Z 1 6bar
Service unit
4/2-solenoid-way valve "lifting"
4/2-solenoid-way valve "intermediate lifting"
One-way flow restrictor "lifting"
Cylinder "lifting"
Cylinder "intermediate lifting"
1A2
1V2
B
A
P
R
195.0517
