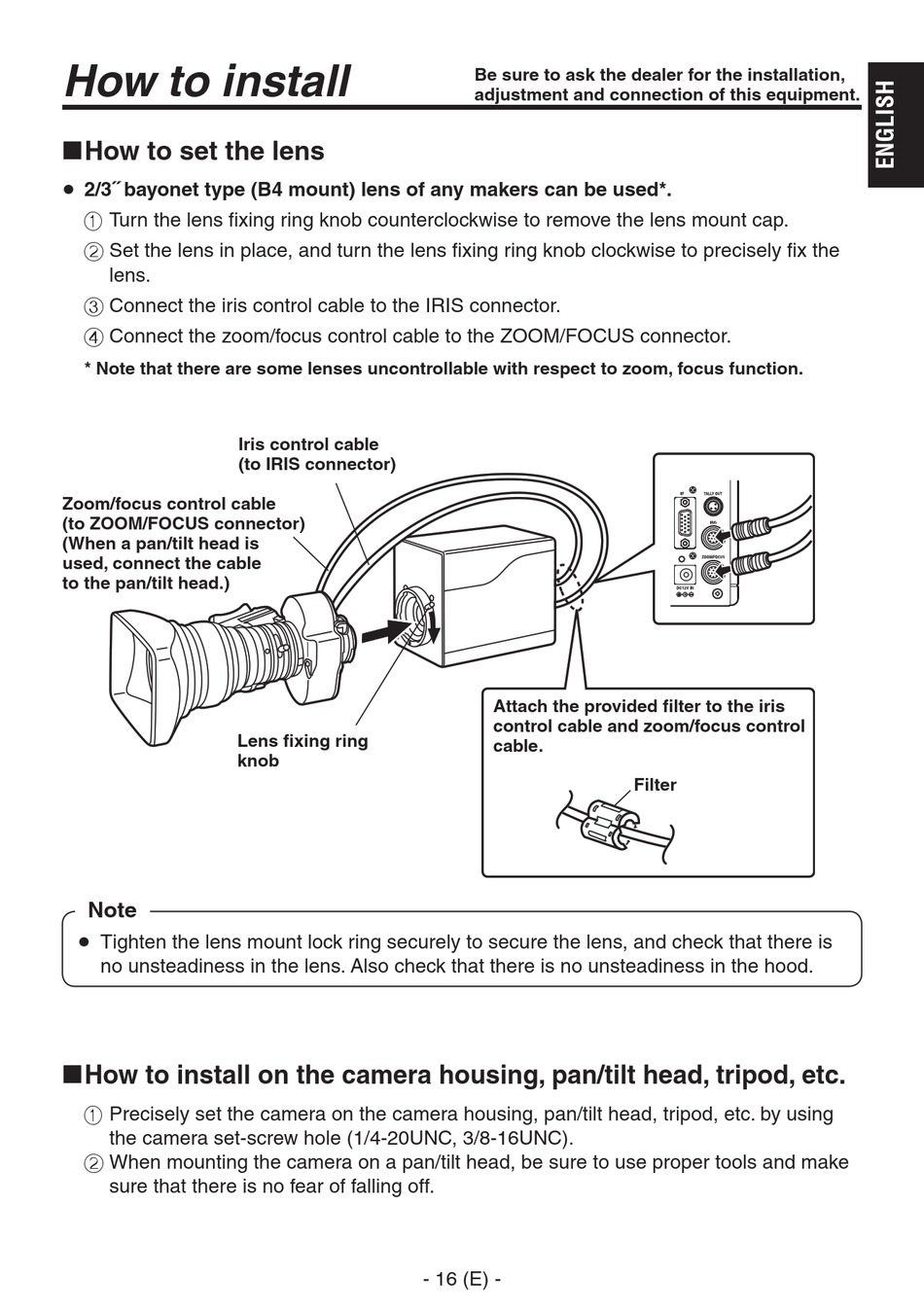

How to install

How to set the lens
 2/3˝ bayonet type (B4 mount) lens of any makers can be used*.
 Turn the lens fixing ring knob counterclockwise to remove the lens mount cap.
 Set the lens in place, and turn the lens fixing ring knob clockwise to precisely fix the
lens.
 Connect the iris control cable to the IRIS connector.
 Connect the zoom/focus control cable to the ZOOM/FOCUS connector.
* Note that there are some lenses uncontrollable with respect to zoom, focus function.
Zoom/focus control cable
(to ZOOM/FOCUS connector)
(When a pan/tilt head is
used, connect the cable
to the pan/tilt head.)
Lens fixing ring
knob
Note
 Tighten the lens mount lock ring securely to secure the lens, and check that there is
no unsteadiness in the lens. Also check that there is no unsteadiness in the hood.
How to install on the camera housing, pan/tilt head, tripod, etc.
 Precisely set the camera on the camera housing, pan/tilt head, tripod, etc. by using
the camera set-screw hole (1/4-0UNC, /8-16UNC).
 When mounting the camera on a pan/tilt head, be sure to use proper tools and make
sure that there is no fear of falling off.
Iris control cable
(to IRIS connector)
Be sure to ask the dealer for the installation,
adjustment and connection of this equipment.
Attach the provided filter to the iris
control cable and zoom/focus control
cable.
- 16 (E) -
Filter
