look 795 RS Montageanleitung Seite 3

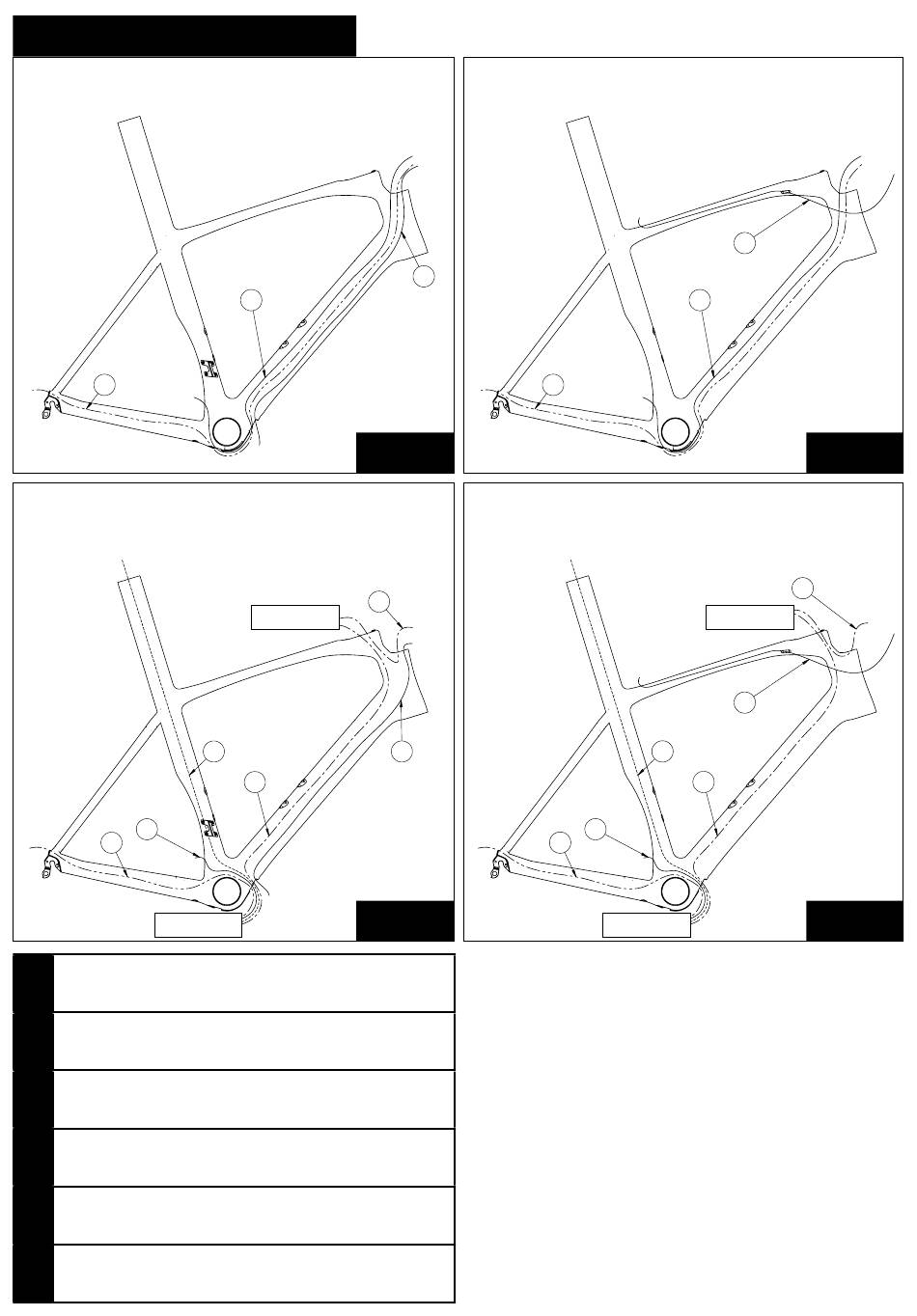

MAIN ROUTING OPTIONS
CONFIGURATION A
795 AEROLIGHT RS mechanical
1
CONFIGURATION C
795 AEROLIGHT RS electronic ( Shimano Di2 type )
2
1
JUNCTION-B
1 Rear derailleur
2 Front derailleur
3 Rear brake
4 Junction A-B wire
5 Battery
6 Junction-A to handlebar
2
JUNCTION-A
JONCTION A
5
4
JONCTION B
CONFIGURATION B
795 LIGHT RS mechanical
3
Fig. 3
CONFIGURATION D
795 LIGHT RS electronic ( Shimano Di2 type )
6
3
Fig. 5
2
1
JUNCTION-A
5
4
2
1
JUNCTION-B JONCTION B
3
Fig. 4
6
JONCTION A
3
Fig. 6
