OPERATING INSTRUCTIONS

3.0.0 FITTING INSTRUCTIONS

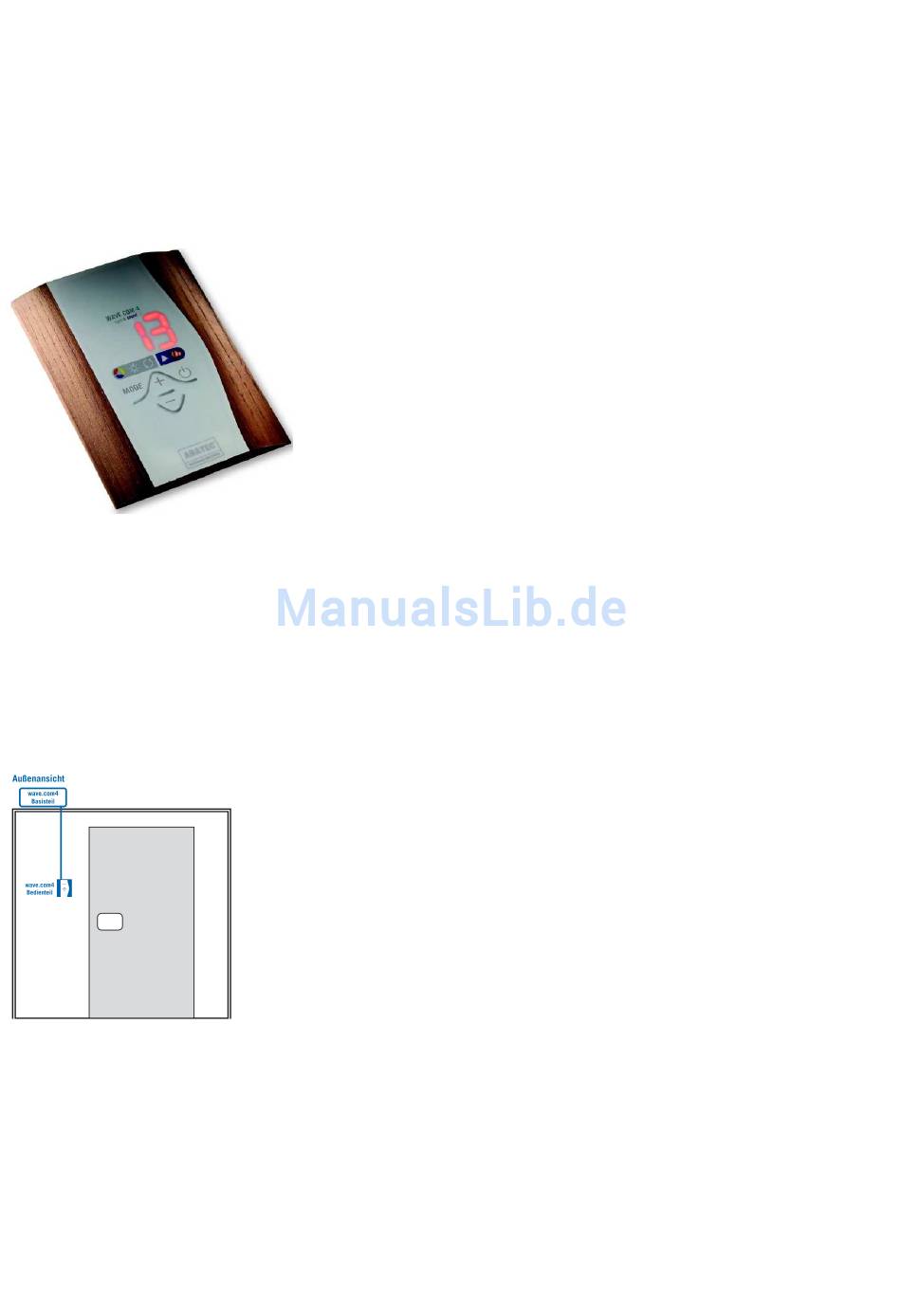

3.1.0 DIMENSIONS / FITTING OPERATING ELEMENT + USB DOCK

Insert the colour operating element into the fitting hole and fasten to the sauna wall using the 4
screws supplied. The operating element can be fitted either outside or inside the sauna cabin.

3.2.0 FITTING THE CONTROL ELEMENT

Wave.com4
Basismodul
Figure 1
Operating element: L x W x D = 120 x 92 x 44,5 mm; ~200 g
without cable and loose; differences possible depending on
customer finishes.
USB DOCK: L x W x D= 30 x 92 x 9.5 mm
Fitting suggestion:
To fit the operating element, a normal hole cutter Ø 70 mm
is required.
The power element is fitted preferably on the part of the cabin roof
where the cables come together. (see Image. 1) Open the housing.
The cover can be removed. The electrical connection must comply
with standards. The connection diagram is described in Chapter
3.4.0.
Recess size: 40 x 25 mm
27/44
