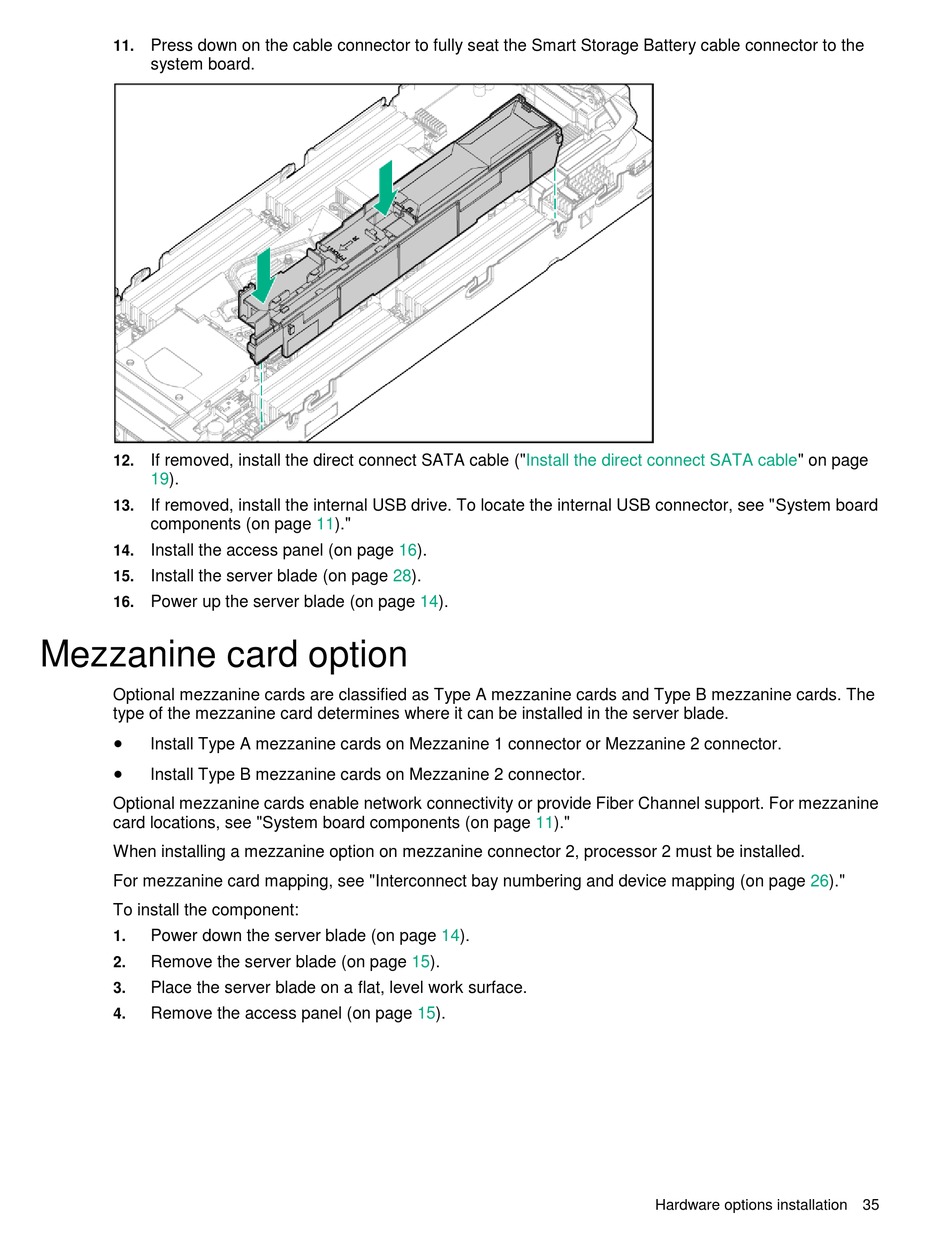

Press down on the cable connector to fully seat the Smart Storage Battery cable connector to the
11.
system board.
If removed, install the direct connect SATA cable
12.
19).
If removed, install the internal USB drive. To locate the internal USB connector, see "System board
13.
components (on page 11)."
Install the access panel (on page 16).
14.
Install the server blade (on page 28).
15.
Power up the server blade (on page 14).
16.

Mezzanine card option

Optional mezzanine cards are classified as Type A mezzanine cards and Type B mezzanine cards. The
type of the mezzanine card determines where it can be installed in the server blade.
Install Type A mezzanine cards on Mezzanine 1 connector or Mezzanine 2 connector.
Install Type B mezzanine cards on Mezzanine 2 connector.
Optional mezzanine cards enable network connectivity or provide Fiber Channel support. For mezzanine
card locations, see "System board components (on page 11)."
When installing a mezzanine option on mezzanine connector 2, processor 2 must be installed.
For mezzanine card mapping, see "Interconnect bay numbering and device mapping (on page 26)."
To install the component:
Power down the server blade (on page 14).
1.
Remove the server blade (on page 15).
2.
Place the server blade on a flat, level work surface.
3.
Remove the access panel (on page 15).
4.
("Install the direct connect SATA
Hardware options installation 35
cable" on page
