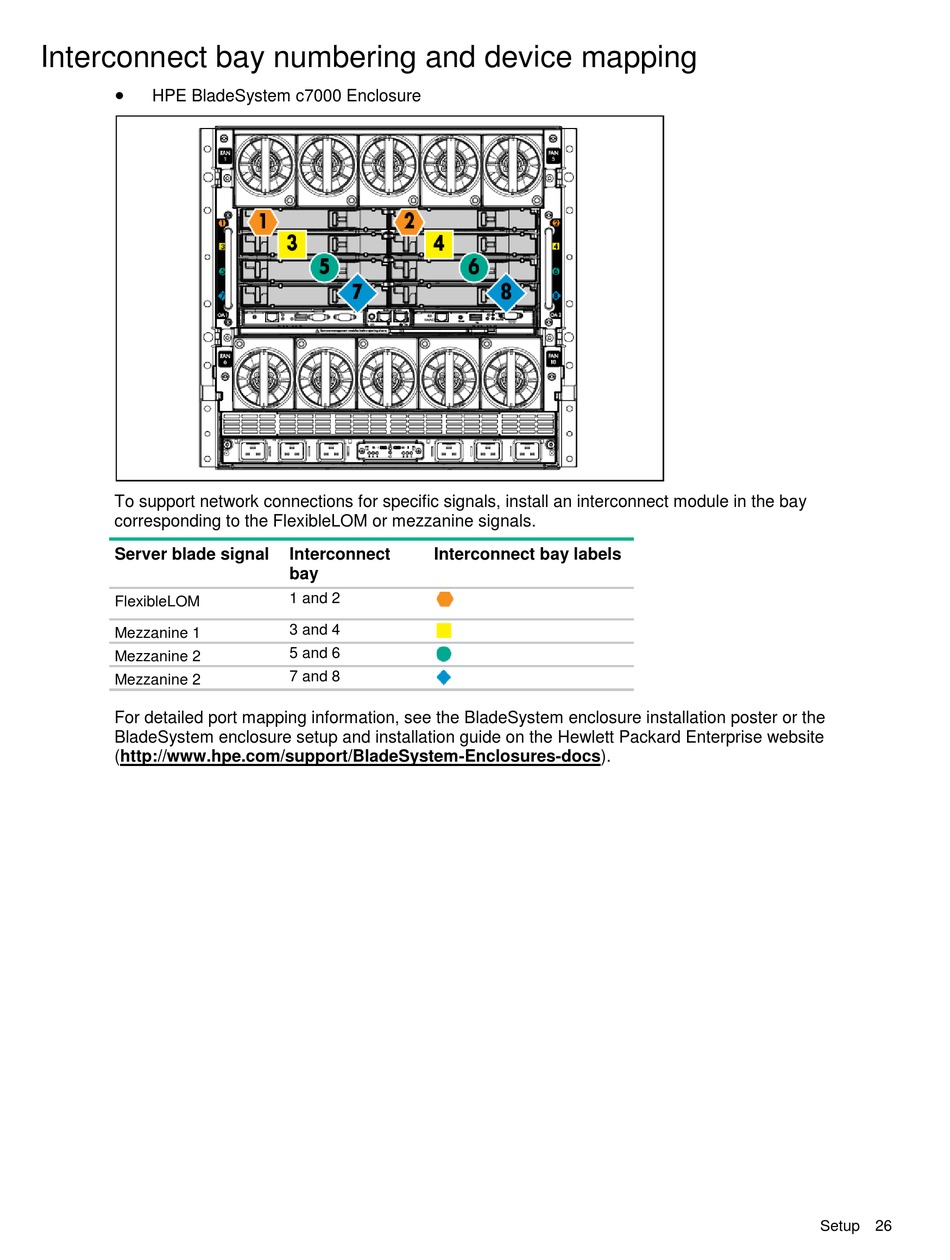

Interconnect bay numbering and device mapping

HPE BladeSystem c7000 Enclosure
To support network connections for specific signals, install an interconnect module in the bay
corresponding to the FlexibleLOM or mezzanine signals.
Server blade signal
FlexibleLOM
Mezzanine 1
Mezzanine 2
Mezzanine 2
For detailed port mapping information, see the BladeSystem enclosure installation poster or the
BladeSystem enclosure setup and installation guide on the Hewlett Packard Enterprise website
(http://www.hpe.com/support/BladeSystem-Enclosures-docs).
Interconnect
Interconnect bay labels
bay
1 and 2
3 and 4
5 and 6
7 and 8
Setup 26
